ASSA ABLOY ACCENTRA 7250M(F)WS Narrow Stile SquareBolt for Narrow Escutcheon Trim Metal Door_7473-2052

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

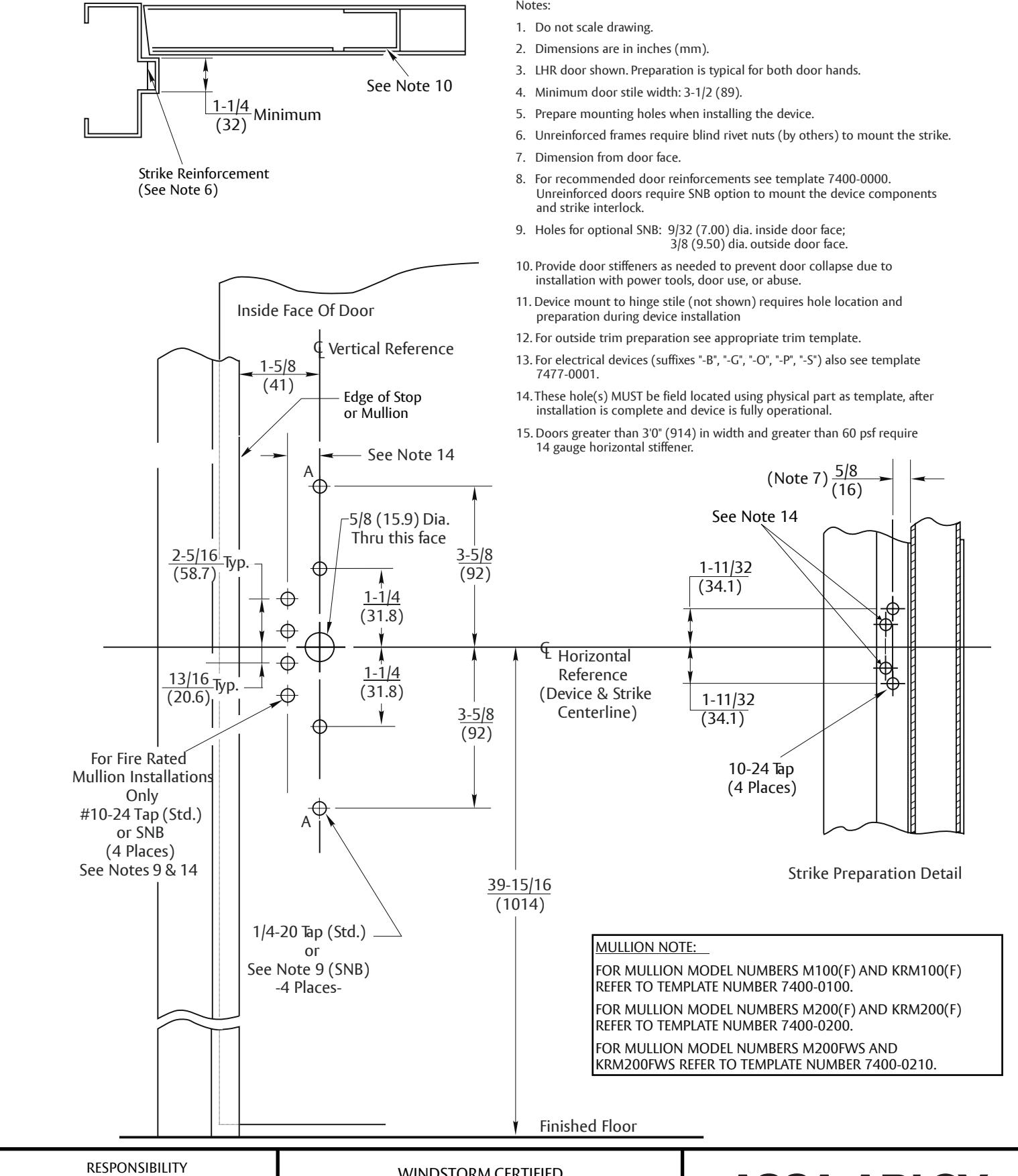

WINDSTORM CERTIFIED 7250M(F)WS Series SquareBolt Narrow Stile Escutcheon Trim Application for Metal Door and Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7473-2052 02/08

SUPERSEDES DO NOT SCALE DRAWING

TEMPLATE NUMBER

7473-2052 DATE

01-24
