ASSA ABLOY ACCENTRA 7250MF Narrow Stile SquareBolt 757F Strike for Narrow Escutcheon Trim Metal Door_7473-0052

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

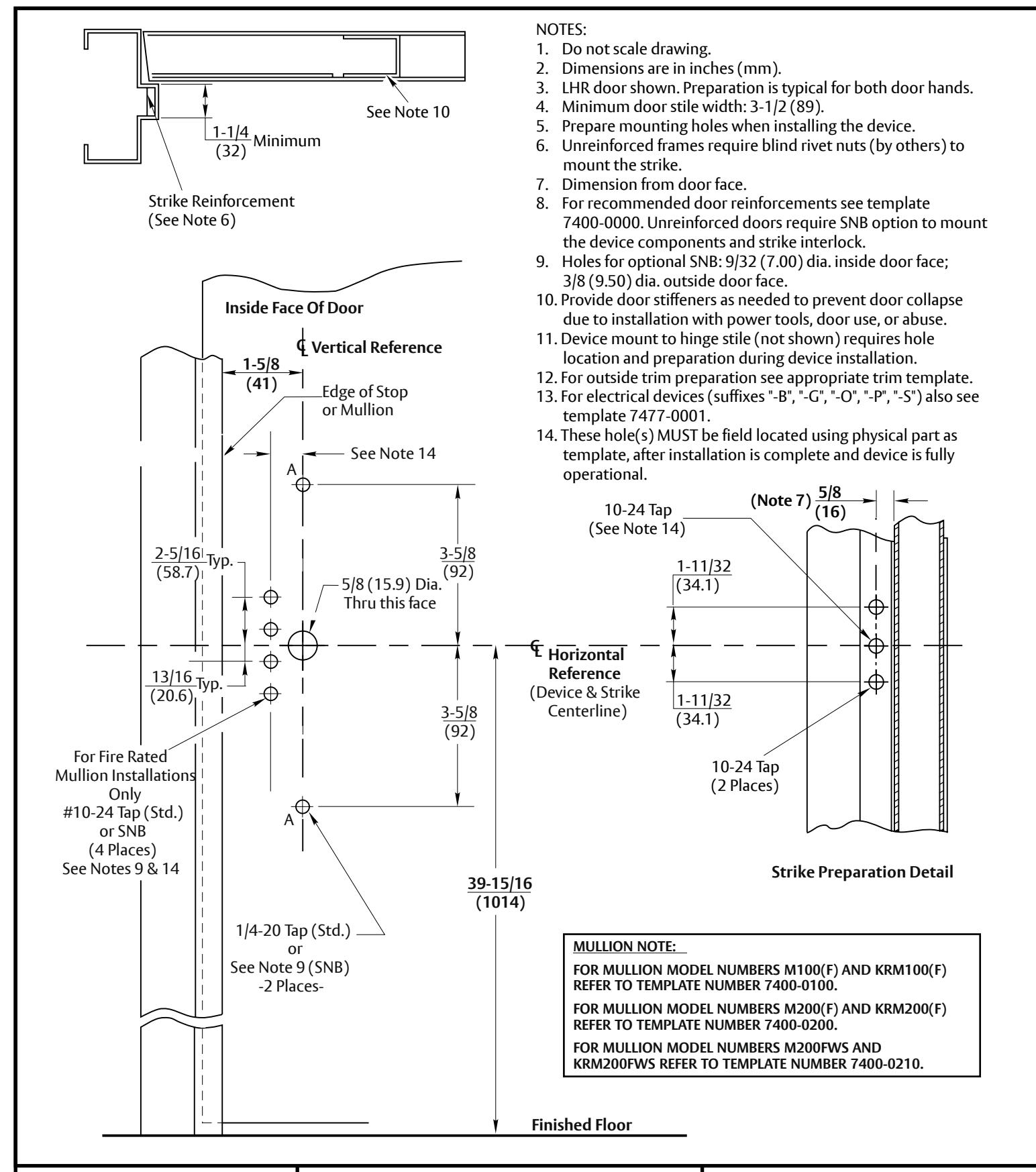

7250MF SquareBolt®Fire Exit Devices for Narrow Escutcheon Trim

Application for Fire Labeled Metal Door and Frame or Mullion with 757F Strik

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7473-0052 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/08

01-24
