ASSA ABLOY ACCENTRA 7250MF Narrow Stile SquareBolt 757F Strike Optional SNB for Narrow Escutcheon_7473-1052

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

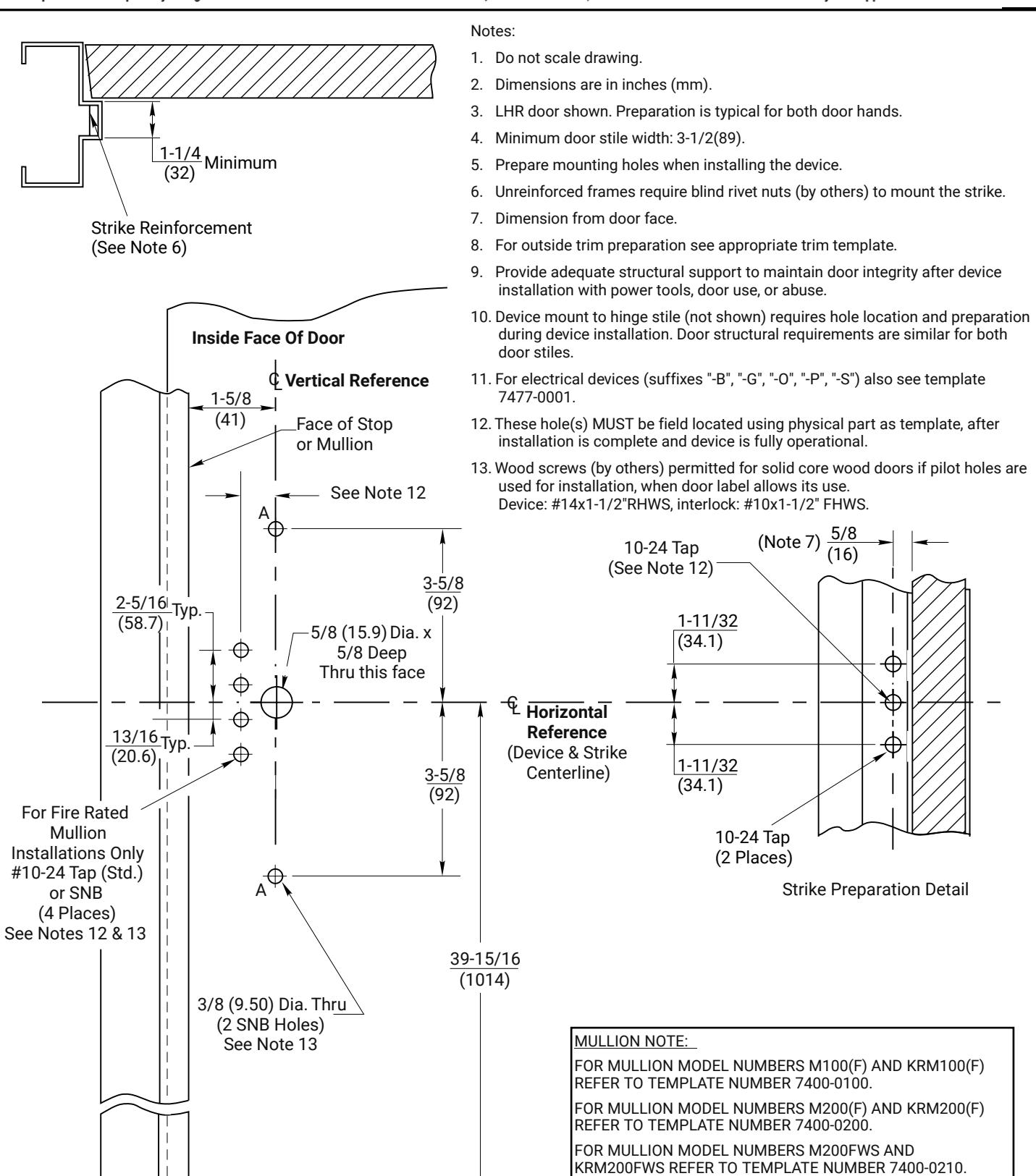

7250MF SquareBolt Fire Exit Devices for Narrow Escutcheon Trim Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

with 757F Strike & SNB

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

Finished Floor

Copyright ©2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES DO NOT SCALE DRAWING 7473-1052 02/24

7473-1052 TEMPLATE NUMBER SHEET 1 of 1

DATE 04-24
