ASSA ABLOY ACCENTRA 7250M, 7255M Narrow Stile SquareBolt 793 Strike Optional SNB Pair of Wood_7473-6793

Notes:

• 1) Do not scale drawing.
• 2) Dimensions are in inches(mm).
• 3) LHR active pair shown. Preparation is typical for both hands.
• 4) Minimum door stile width: 3-1/2(89).
• 5) Prepare mounting holes when installing the device.
• 6) For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.
• 7) For outside trim preparation appropriate trim template.

• 8) Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 9) Device mount to hinge stile (not shown) requires holes location and preparation during device installation. Door structural requirements are similar for both door stiles.
• 10) For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.
• 11) Wood screws (by others) permitted for solid core wood doors if pilot holes are used for installation.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

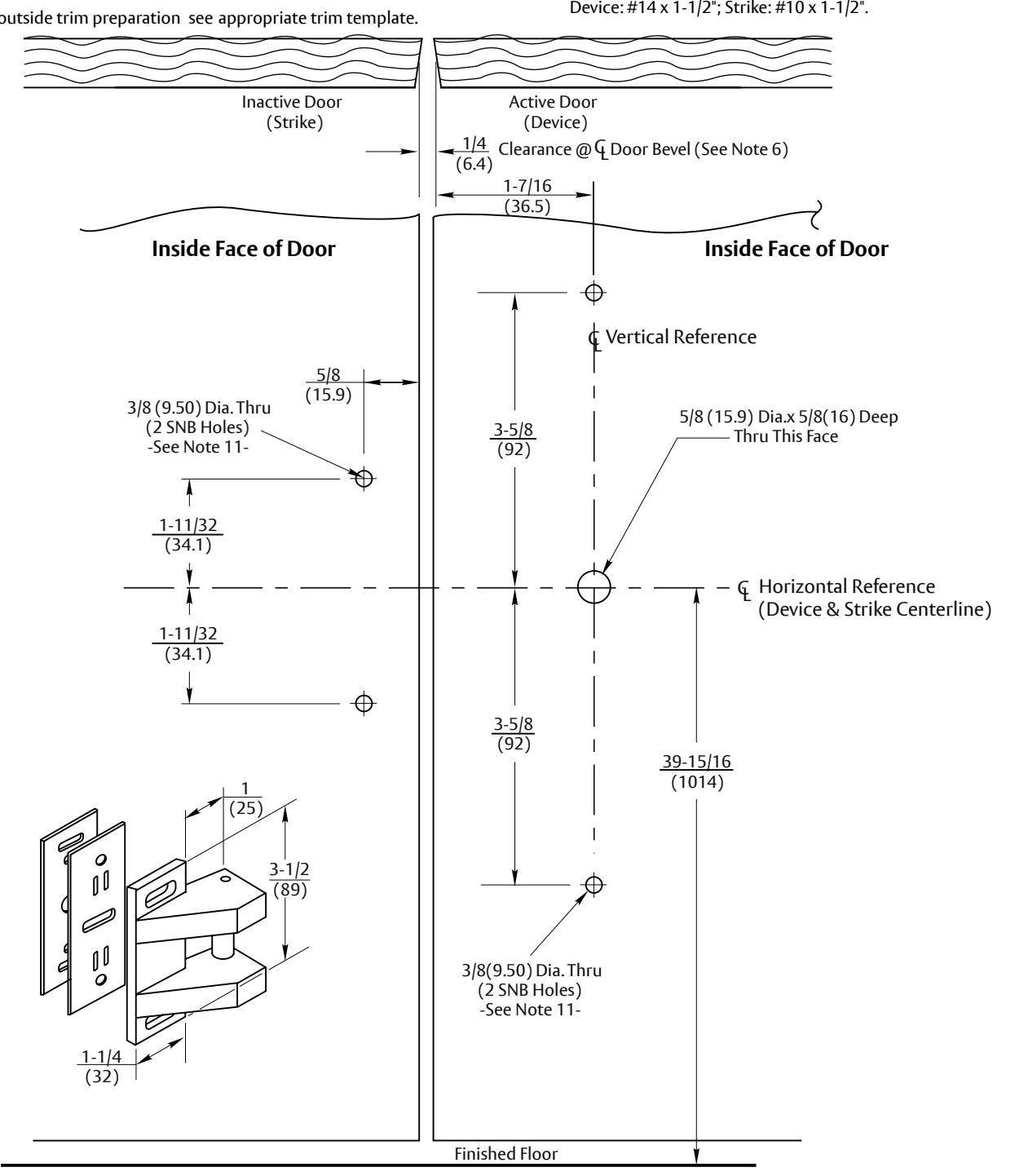

7250M & 7255M SquareBolt™ Panic Devices with Optional 793 Strike and SNB Application for Pair of Wood or Composite Doors without Mullion (Not for Fire Labeled Devices)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING 7473-6793 03-01

7473-6793 DATE TEMPLATE NUMBER
