ASSA ABLOY ACCENTRA 7220M(F), 7225M Narrow Stile CVR 794 Strike for Narrow Escutcheon Trim Metal_7473-0022
Open the original PDF document
View PDF
RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

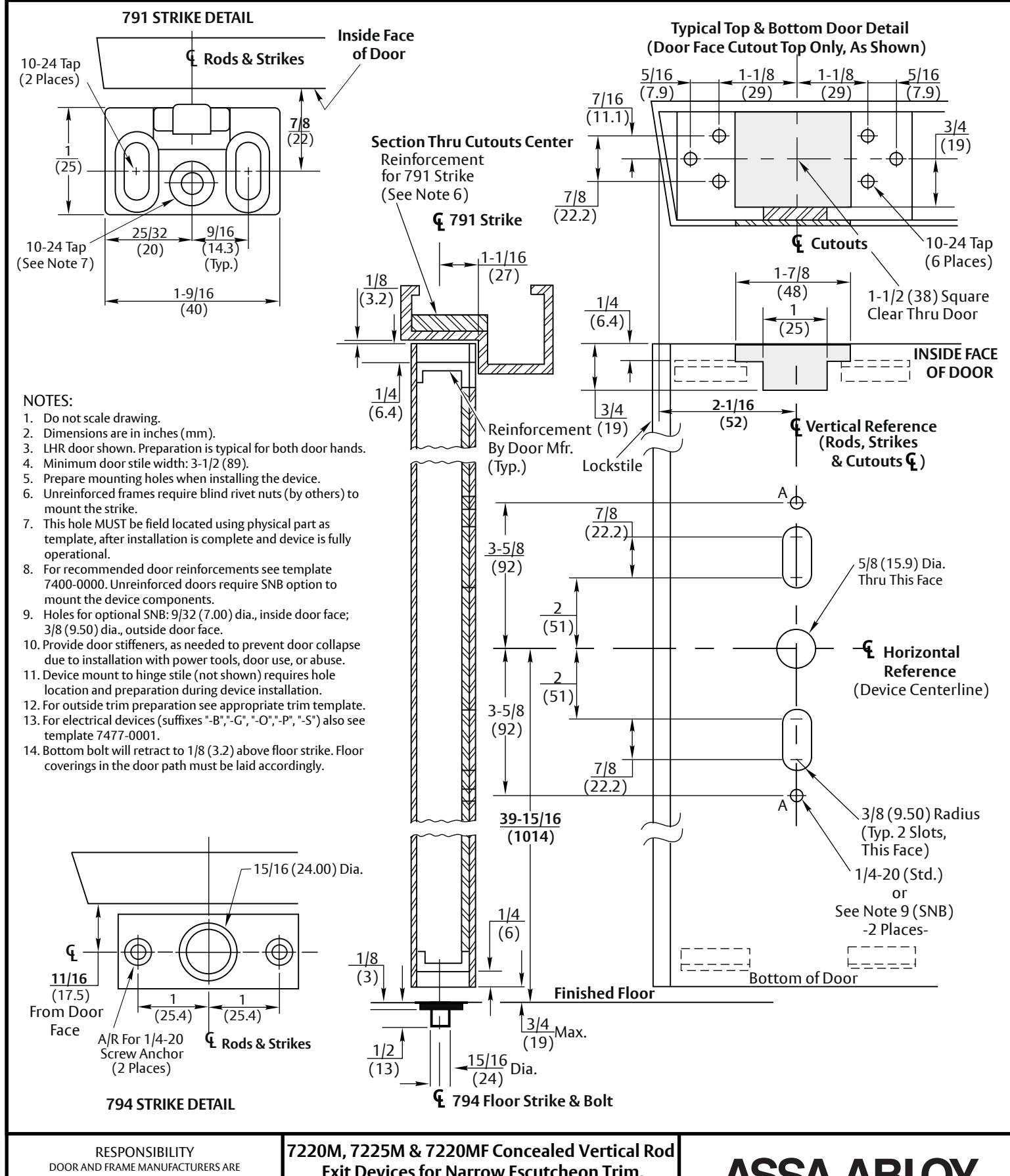

Exit Devices for Narrow Escutcheon Trim,
Application for Metal Door and Frame With Optional 794 Strike
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-0022 01 - 24
