ASSA ABLOY ACCENTRA 7220M(F), 7225M Narrow Stile CVR 790 Floor Strike for Narrow Escutcheon Trim_7473-0020

RESPONSIBILITY

must be laid accordingly.

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

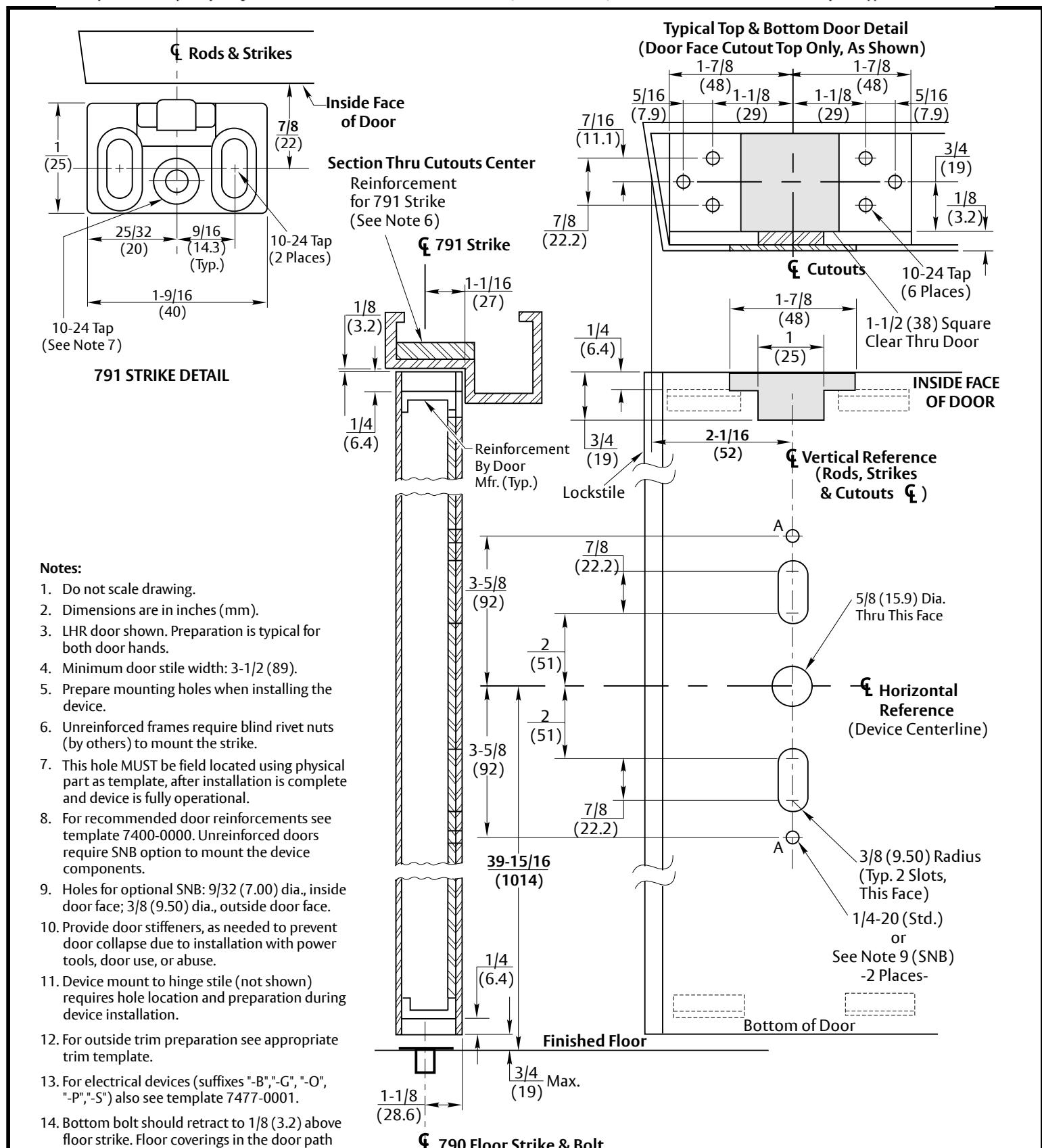

7220M, 7225M & 7220MF Concealed Vertical Rod Exit Devices for Narrow Escutcheon Trim

(See Note 14)

790 Floor Strike & Bolt

Application for Metal Door and Frame With 790 Floor Strike Contact us for support at 1-855-577-5078.

ASSA ABLOY

SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-0020 01 - 24
