ASSA ABLOY ACCENTRA 7210M(F), 7215M Narrow Stile SVR 794 Floor Strike for Narrow Escutcheon Trim_7473-1012

Open the original PDF document

RESPONSIBILITY

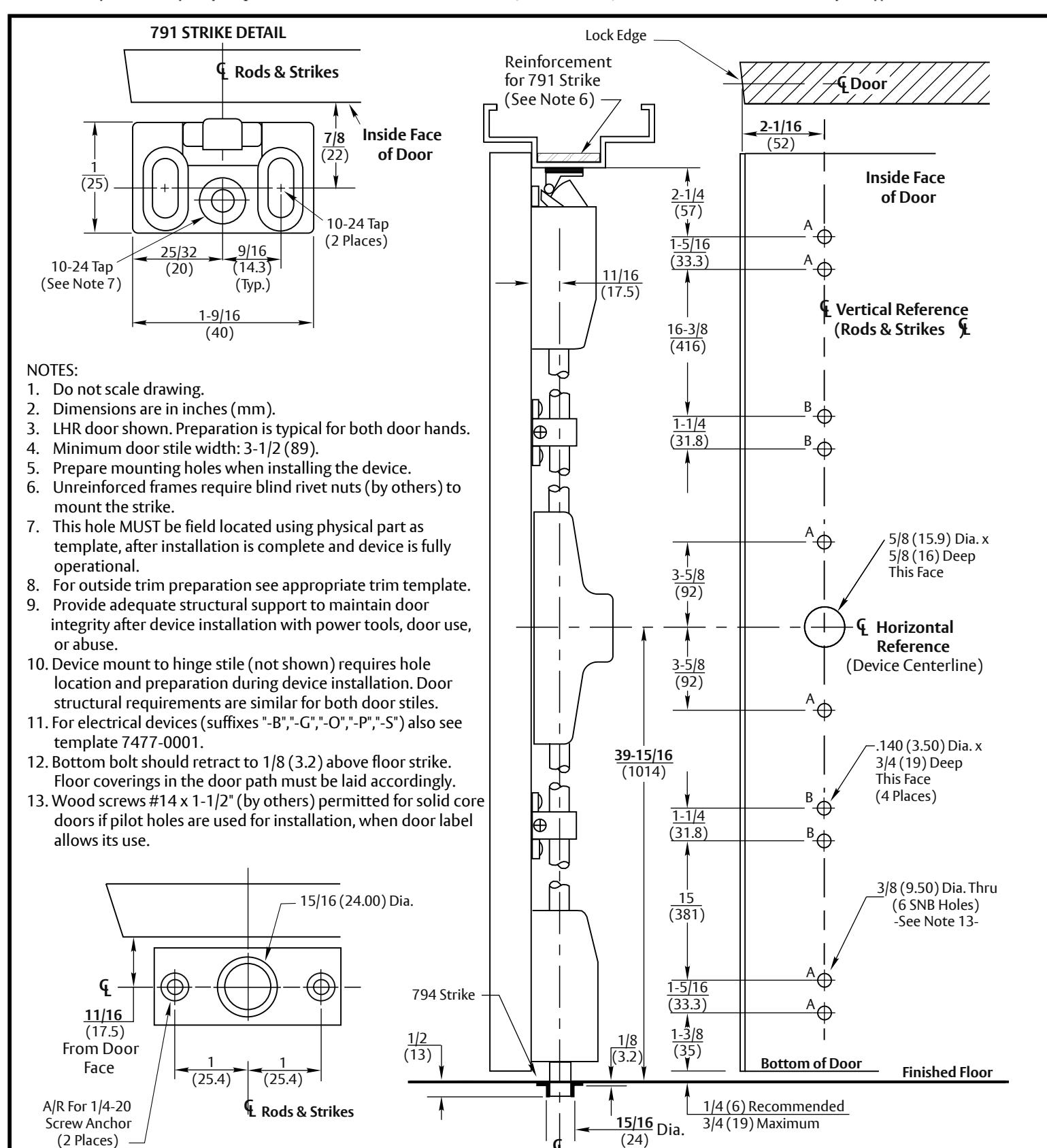

794 STRIKE DETAIL

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

7210M, 7215M & 7210MF Surface Vertical Rod Exit Devices

Rods, Deadbolt and Floor Strike

Application for Wood or Composite Door and H.M. Frame with Optional 794 Floor Strike

ASSA ABLOY

SUPERSEDES 3/01 DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-1012 DATE 01-24
