ASSA ABLOY ACCENTRA 7210M(F), 7215M Narrow Stile SVR 794 Floor Strike for Narrow Escutcheon Trim_7473-0012

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

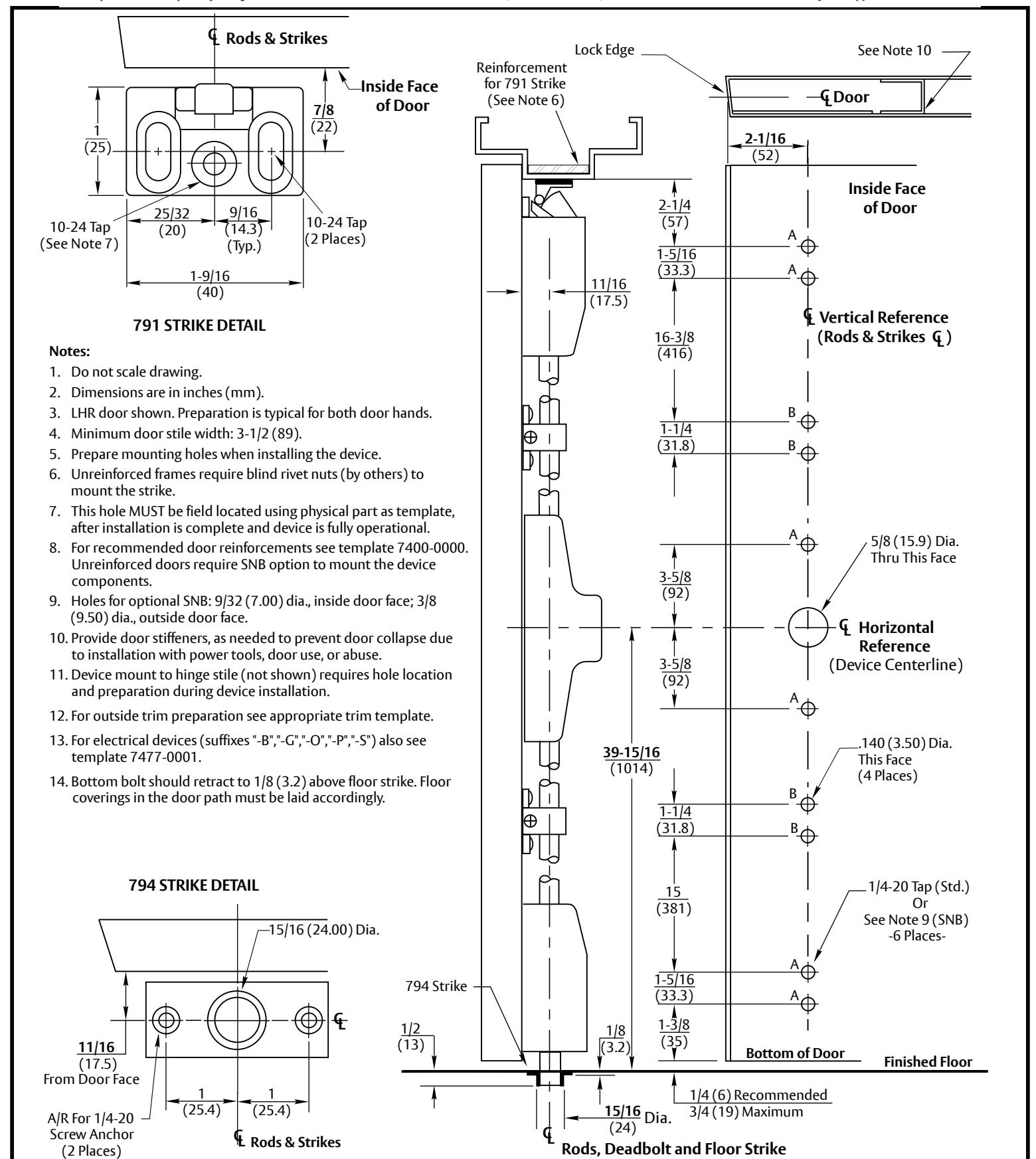

7210M, 7215M & 7210MF Surface Vertical Rod Exit Devices for Narrow Escutcheon Trim, Application for Metal Door and Frame with Optional 794 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7473-0012 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
