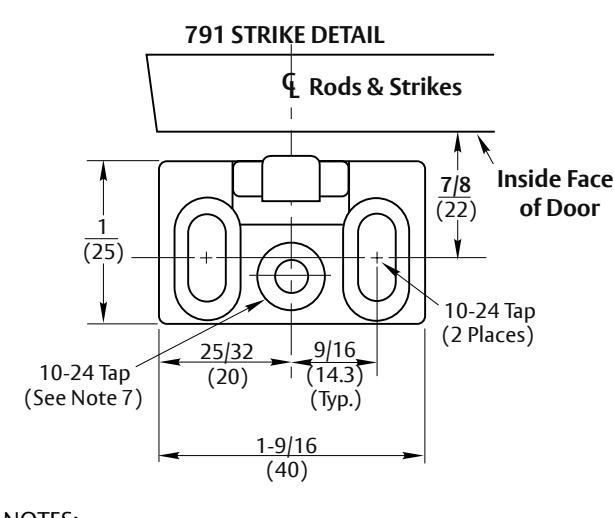

Reinforcement for 791 Strike (See Note 6)

Lock Edge

NOTES:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 3-1/2 (89).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. Thi s hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 8. For outside trim preparation see appropriate trim template.
• 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both door stiles.
• 11. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.
• 12. Wood screws #14 x 1-1/2" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

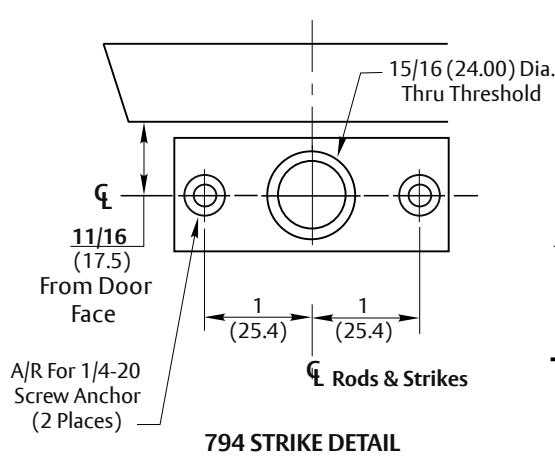

Bottom of Door A A 15 (381) 1-5/16 (33.3) 3/8 (9.50) Dia. Thru (6 SNB Holes) -See Note 12- 1-3/8 (35) CL Rods, Deadbolt and Floor Strike 11/16 (17.5) Finished Floor 794 Strike 1/2 (13) 1/4 (6)

1-1/4 (31.8)

39-15/16 (1014)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

7210M, 7215M & 7210MF Surface Vertical Rod Exit Devices for Narrow Escutcheon Trim

Application for Wood or Composite Door, H.M. Frame with 1/2" Threshold, Optional 794 Floor Strike & SNB

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

CLDoor

A A

2-1/16 (52)

2-1/4 (57) 1-5/16 (33.3)

1-1/4 (31.8)

3-5/8 (92)

3-5/8 (92)

16-3/8 (416)

B B

A

A

.140 (3.50) Dia. x 3/4 (19) Deep This Face (4 Places)

CL Horizontal Reference (Device Centerline)

5/8 (15.9) Dia. x 5/8 (16) Deep This Face

B B

Inside Face of Door

CL Vertical Reference Rods & Strikes

7473-1011 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 3/01 01-24
