ASSA ABLOY ACCENTRA 7210M(F), 7215M Narrow Stile SVR 790 Floor Strike for Narrow Escutcheon Trim_7473-0010

strike. Floor coverings in the door path must be laid accordingly.

5/8 (16.00) Dia.

3/4 (19) Deep For 790 Strike

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

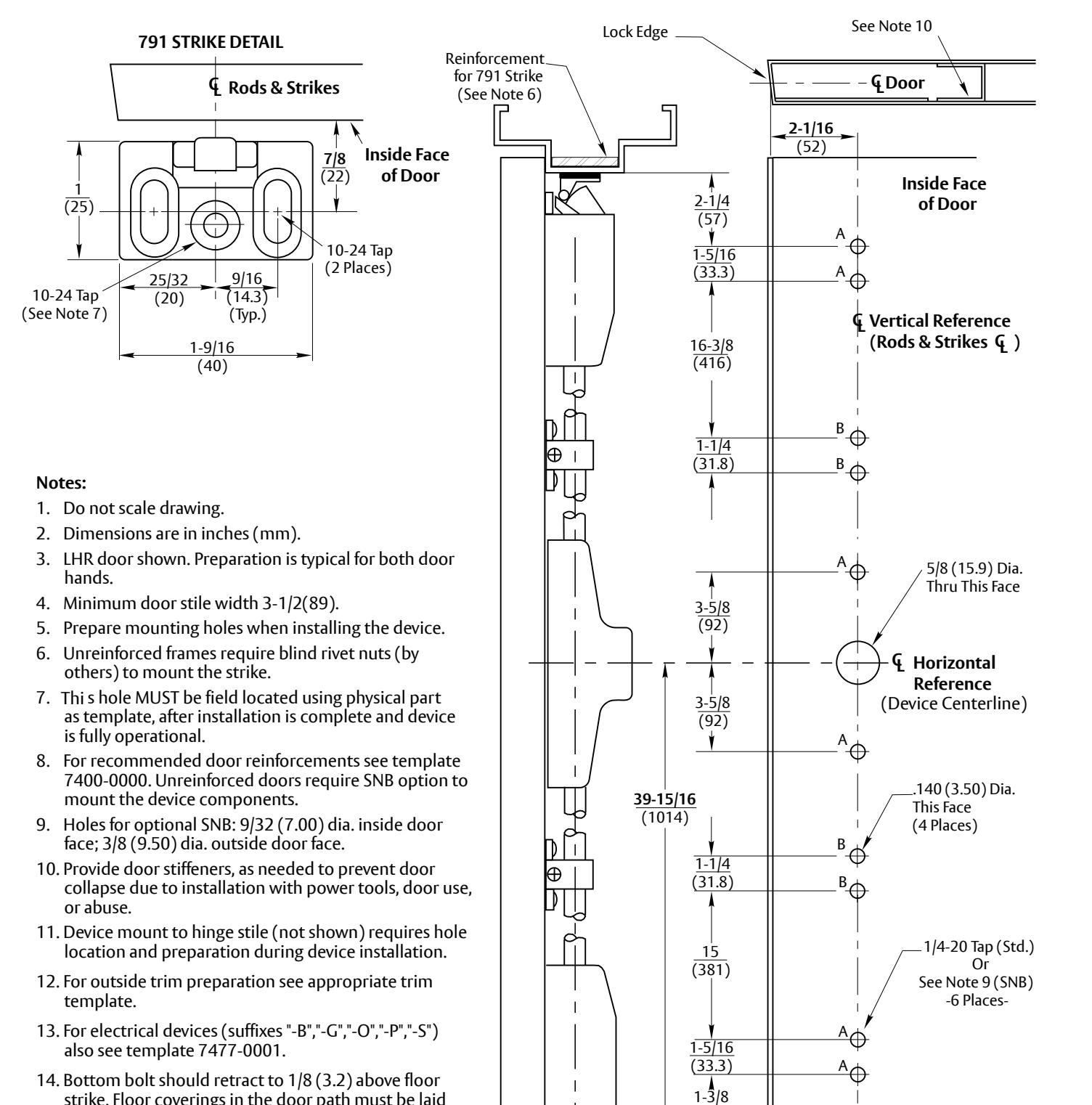

7210M, 7215M & 7210MF Surface Vertical Rod Exit Devices for Narrow Escutcheon Trim Application for Metal Door and Frame with 790 Floor Strike

11/16 (17.5)

CL

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

Finished Floor

(35)

Rods, Deadbolt and Floor Strike

1/4 (6) Recommended 3/4 (19) Maximum

Bottom of Door

7473-0010 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
