RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

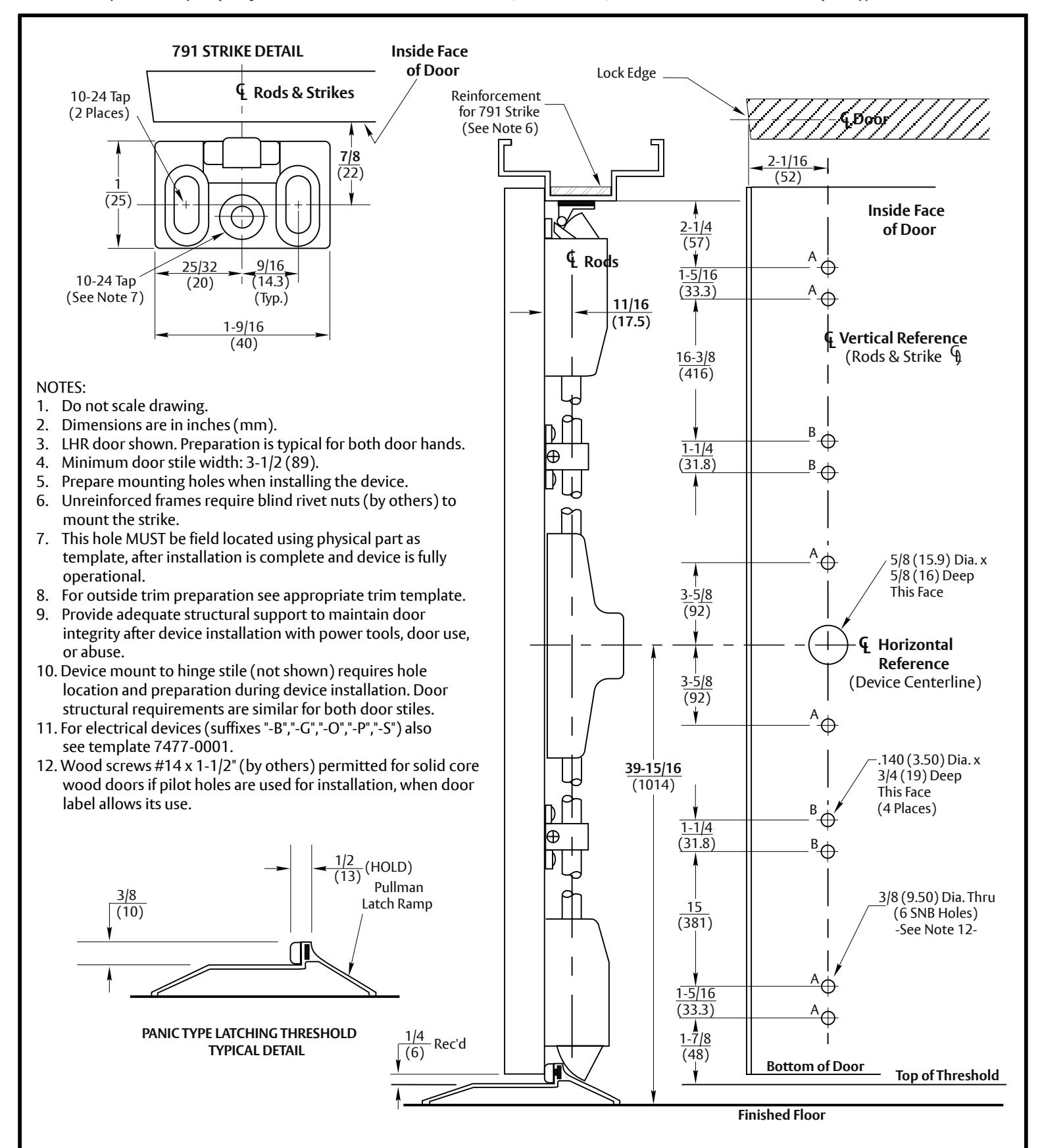

7210M & 7215M Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option

Application for Wood or Composite Door, H.M. Frame, and Latching Threshold

ASSA ABLOY

SUPERSEDES 3/01 DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-1016 DATE 01-24
