RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

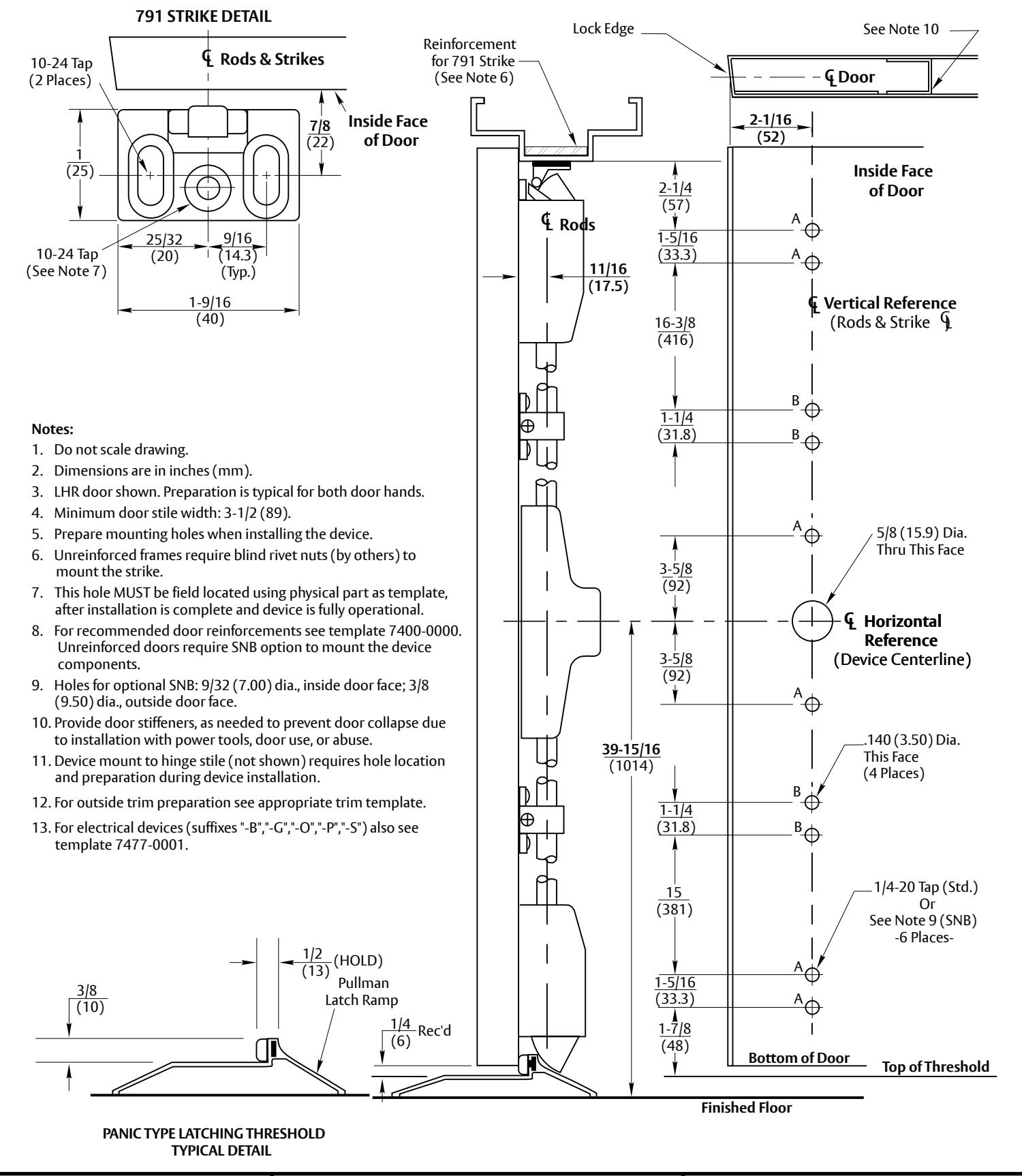

7210M & 7215M Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option Application for Metal Door and Frame, with Latching Threshold

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-0016 DATE 01-24
