ASSA ABLOY ACCENTRA 7210M, 7215M Narrow Stile SVR 702 Floor Strike Bottom Pullman Latch Option Wood_7473-1015

Open the original PDF document

View PDF

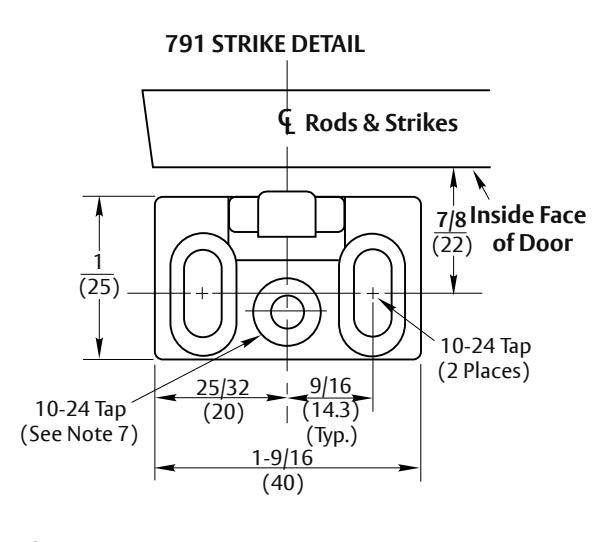

Reinforcement

for 791 Strike (See Note 6)

Lock Edge .

C Rods

11/16

(17.5)

(33.3)

16-3/8 (416)

1-1/4

(31.8)

39-15/16

(1014)

2-1/16

(52)

В

В

Inside Face of Door

Vertical Reference (Rods & Strikes )

5/8 (15.9) Dia. x 5/8 (16) Deep

This Face

4 Horizontal

Reference

(Device Centerline)

.140 (3.50) Dia. x

3/4 (19) Deep

This Face

(4 Places)

NOTES:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width: 3-1/2 (89).
  • 5. Prepare mounting holes when installing the device.
  • Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For outside trim preparation see appropriate trim template.
  • Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
  • Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both door stiles.
  • 11. For electrical devices (suffixes "-B","-G", "-O","-P","-S") also see template 7477-0001.
  • 12. Wood screws #14 x 1-1/2" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

7210M & 7215M Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option

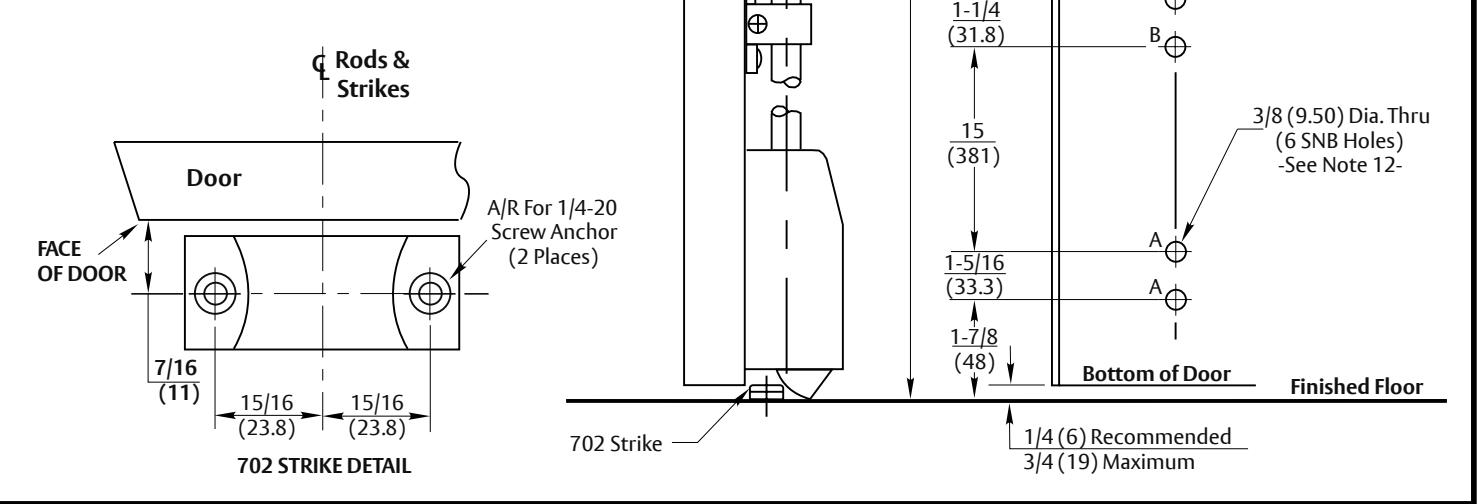

Application for Wood or Composite Door and H.M. Frame without Threshold (702 Floor Strike)

Contact us for support at 1-855-557-5078.

ASSA ABLOY

SUPERSEDES 3/01 DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-1015 DATE 01-24
