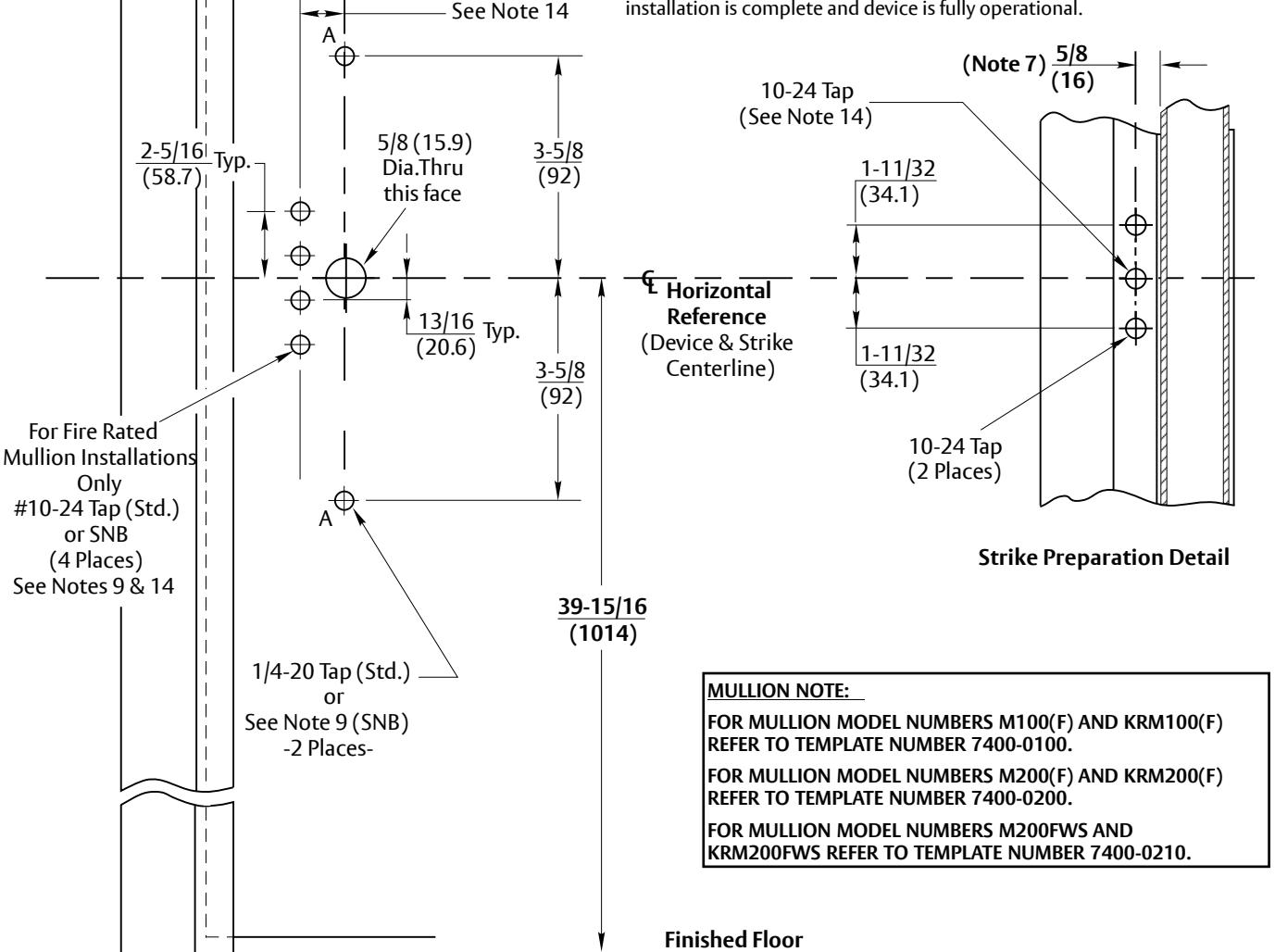

Strike Reinforcement (See Note 6) See Note 10 1-1/4 (32) Minimum

Inside Face Of Door

CL

1-5/8 (41)

Face of Stop or Mullion

Vertical Reference

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 3-1/2 (89).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. Dimension from door face.
• 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components and strike interlock.
• 9. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
• 10. Provide door stiffeners as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For outside trim preparation see appropriate trim template.
• 13. For electrical devices (suffixes "-B", "-G","-O", "-P", "-S") also see template 7477-0001.
• 14. These hole(s) MUST be field located using physical part as template, after installation is complete and device is fully operational.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

7200MF Rim Panic Devices for Narrow Escutcheon Trim - 757F Strike

Application for Fire Labeled Metal Door and Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7473-0002 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
