ASSA ABLOY ACCENTRA 7200MF Narrow Stile Rim 757F Strike Optional SNB for Narrow Escutcheon Trim Wood_7473-1002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

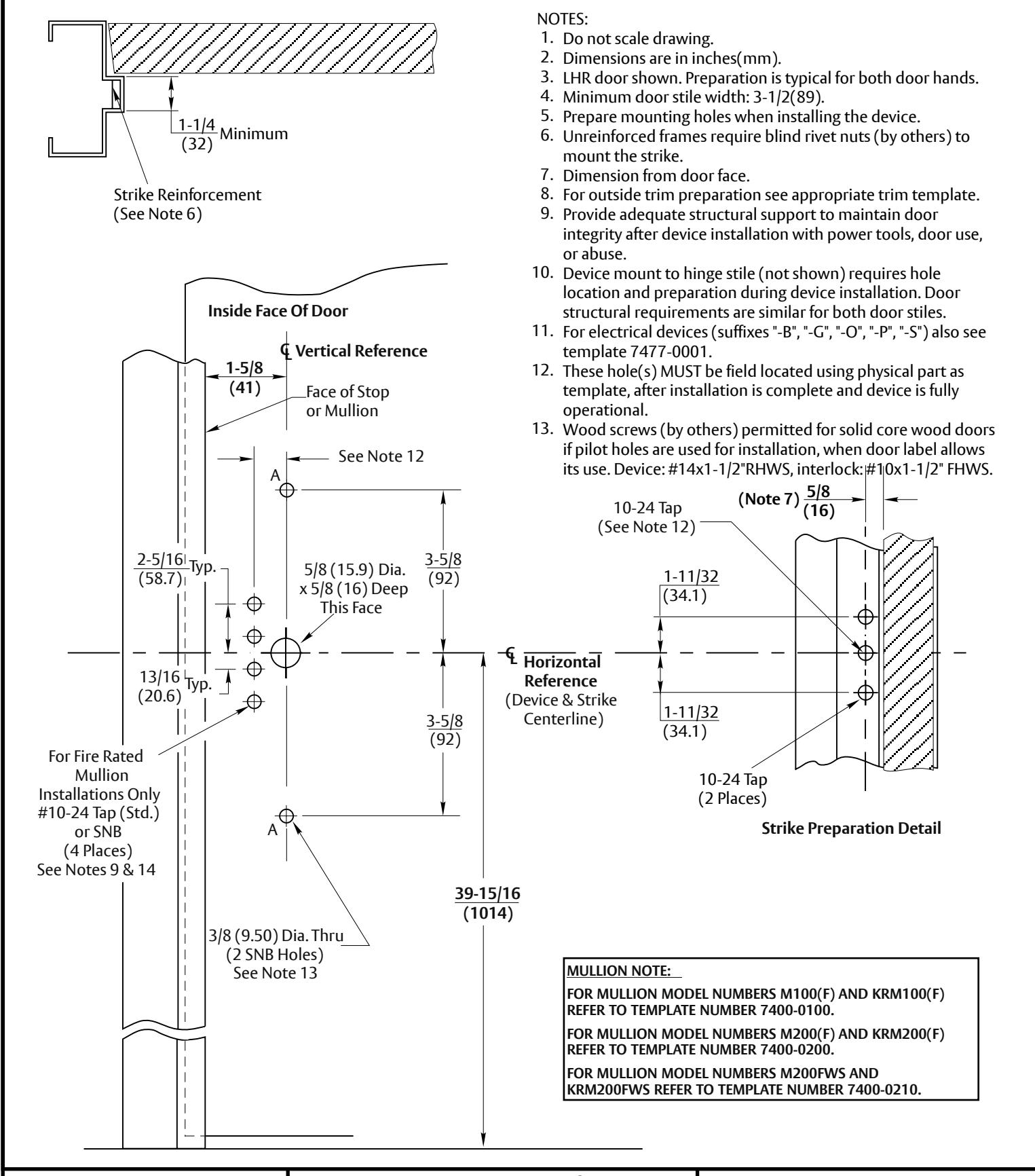

7200MF Rim Fire Exit Devices for Narrow Escutcheon Trim

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion with 757F Strike & SNB

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7473-1002 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/08

01-24

Experience a safer and more open world
