ASSA ABLOY ACCENTRA 7200M, 7205M Narrow Stile Rim 793 Strike Optional SNB for Narrow Escutcheon Trim_7473-1793

Notes:

• 1) Do not scale drawing.
• 2) Dimensions are in inches(mm).
• 3) LHR active pair shown. Preparation is typical for both hands.
• 4) Minimum door stile width: 3-1/2(89).
• 5) Prepare mounting holes when installing the device.
• 6) For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.
• 7) For trim preparation see appropriate trim template.

• 8) Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• Device mount to hinge stile (not shown) requires holes location and preparation during device installation. Door structural requirements are similar for both door stiles.
• 10) For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.
• 11) Wood screws (by others) permitted for solid core wood doors if pilot holes are used for installation.

Device: #14 x 1-1/2": Strike: #10 x 1-1/2".

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION

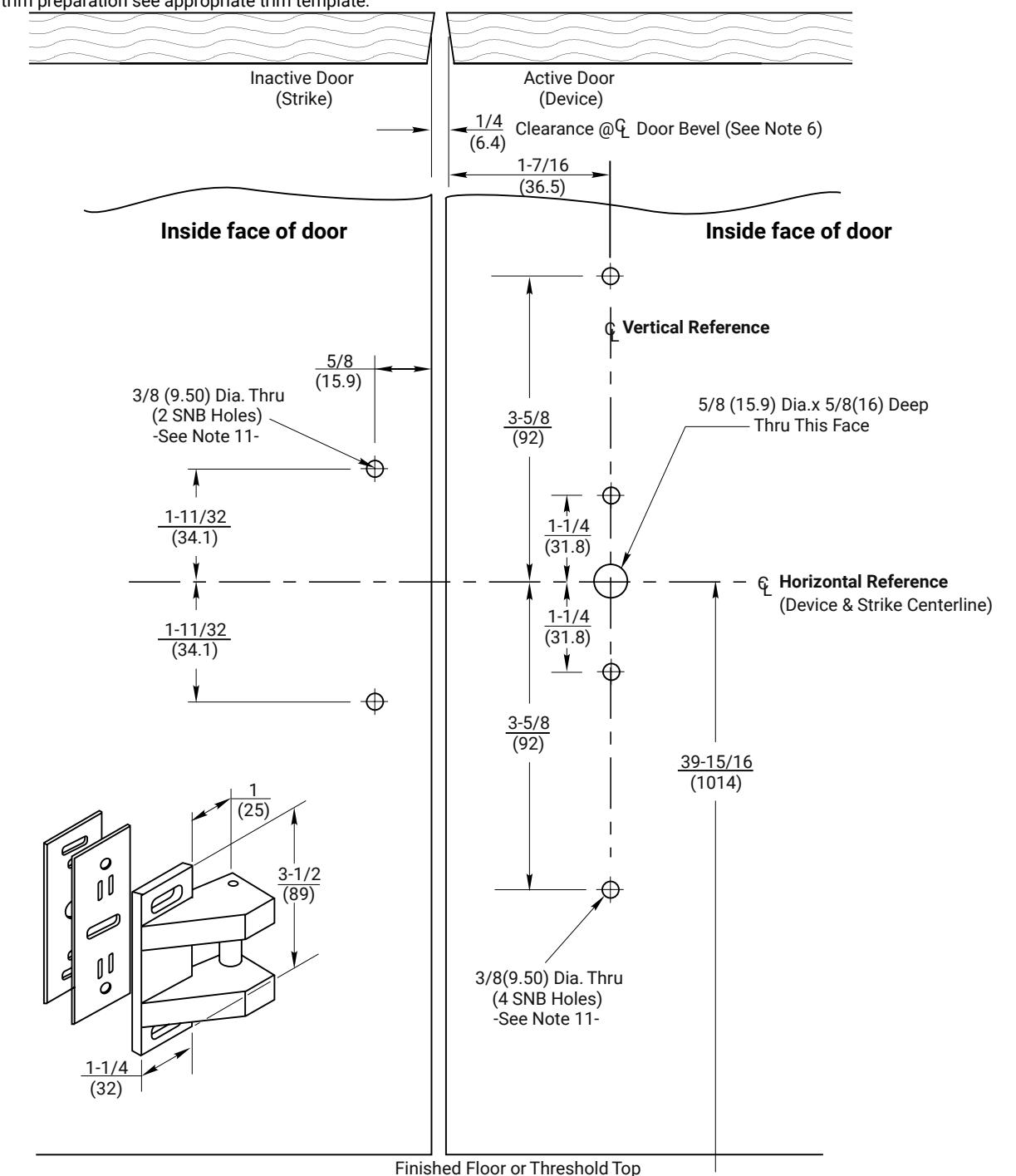

7200M & 7205M Rim Panic Devices For Narrow Escutcheon Trim with Optional 793 Strike and SNB Application to Pair of Wood or Composite Doors without Mullion

(Not for Fire Labeled Devices)

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

ASSA ABLOY

ACCENTRA

Experience a safer and more open world

Copyright ©2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES 7473-1793 02/24

TEMPLATE NUMBER 7473-1793

SHEET DA

DO NOT SCALE DRAWING

04-24
