ASSA ABLOY ACCENTRA 7200M, 7205M Narrow Stile Rim 757 Strike for Narrow Escutcheon Trim Metal Door_7473-0000

Open the original PDF document

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADFOLIATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST RE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

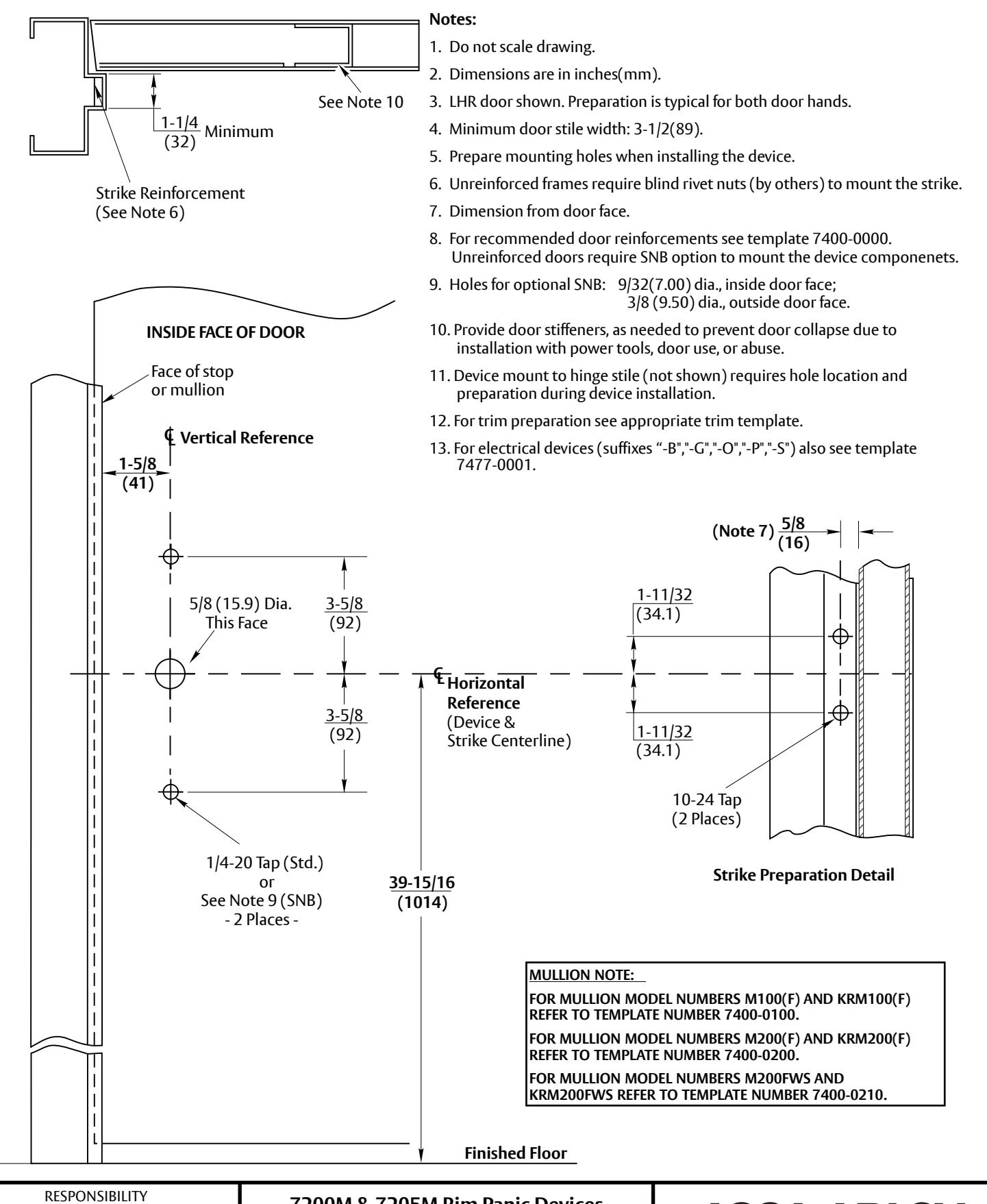

7200M & 7205M Rim Panic Devices for Narrow Escutcheon Trim - 757 Strike Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)

ASSA ABLOY

SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7473-0000

01 - 24
