ASSA ABLOY ACCENTRA 7200M, 7205M Narrow Stile Rim 757 Strike Optional SNB for Narrow Escutcheon Trim_7473-1000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

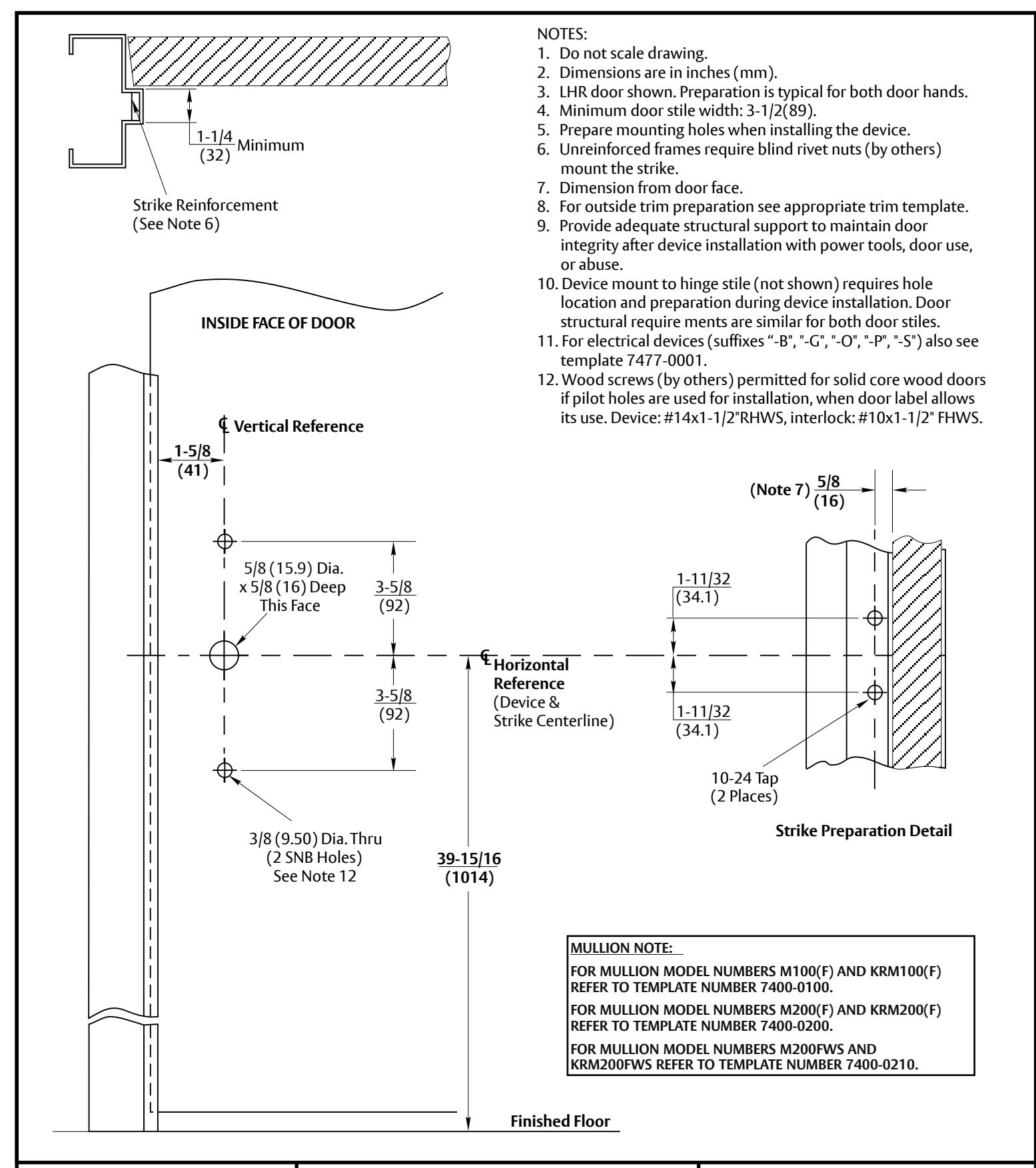

7200M & 7205M Rim Panic Devices for Narrow Escutcheon Trim - 757 Strike

Application for Wood or Composite Door and H.M. Frame or Mullion with 757 Strike & SNB (Not for Fire Labeled Devices)

SUPERSEDES DO NOT SCALE DRAWING 02/08

7473-1000 DATE TEMPLATE NUMBER

01-24
