ASSA ABLOY ACCENTRA 7180(F)TD Wide Stile Multi-Point Metal Door Template_7470-0080

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

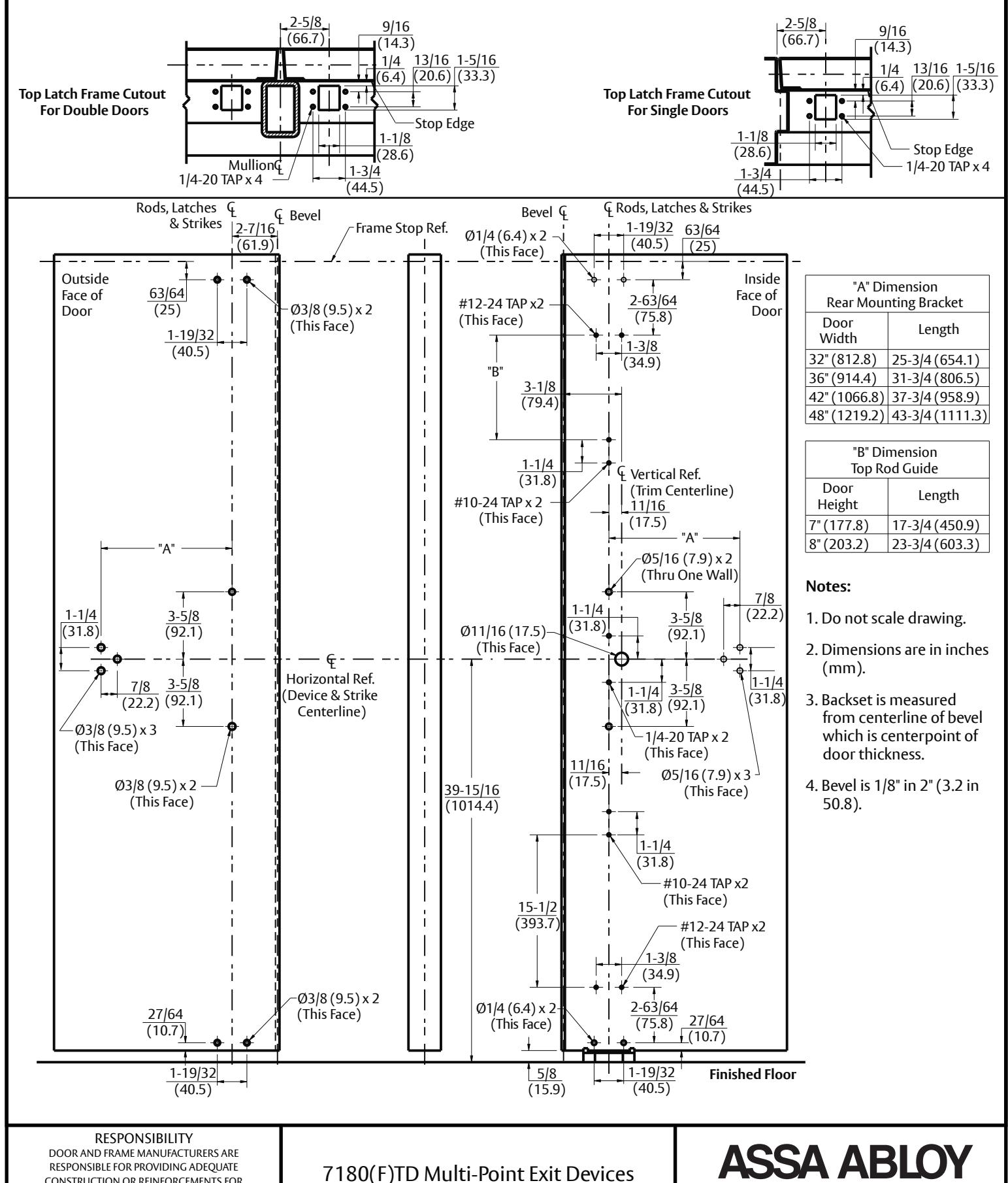

7180(F)TD Multi-Point Exit Devices Metal Door Preparation

Contact us for support at 1-855-577-5078.

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7470-0080 DATE 01-24
