ASSA ABLOY ACCENTRA 718 Open Back Strike for Mortise Locks 1-3, 4 Wood or H.M. Door Template_7086-0016

DO NOT SCALE

Lock Wood Door Preparation

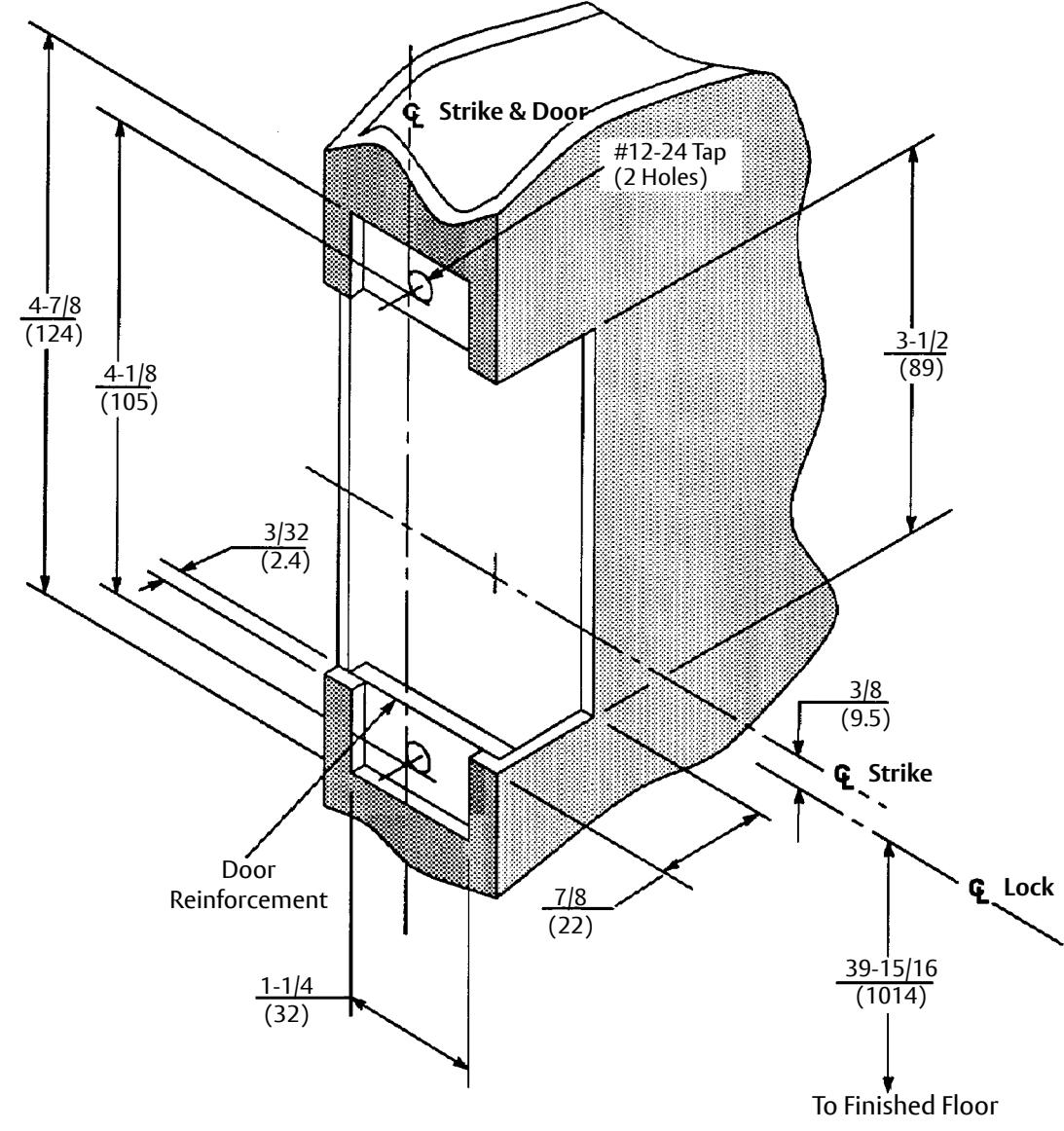

Hollow Metal Door Preparation All dimensions given in inches (mm).

Copyright © 2004, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

Mounting Template for 718 Open Back Strike for All Series Mortise Locks (1-3/4" Door) Wood or H.M. Doors Date: 01/24

Template Number: 7086-0016

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
