ASSA ABLOY ACCENTRA 7170(F)WS Wide Stile SVR Windstorm Certified Metal Door and Frame without_7470-2072

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

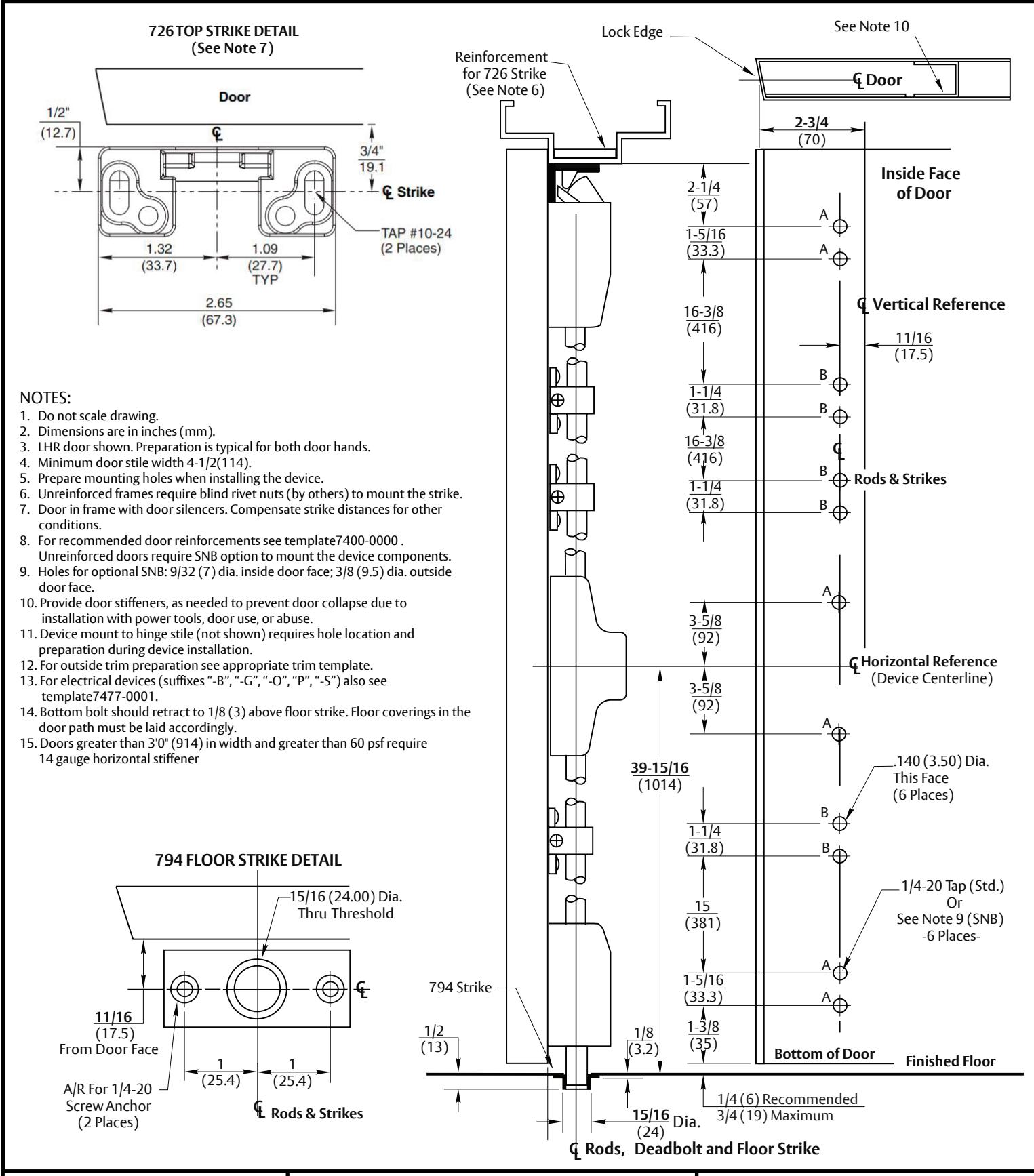

WINDSTORM CERTIFIED 7170(F)WS Series

Surface Vertical Rod Exit Device Application for Metal Door and Frame without Threshold

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7470-2072 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 02/21 01-24
