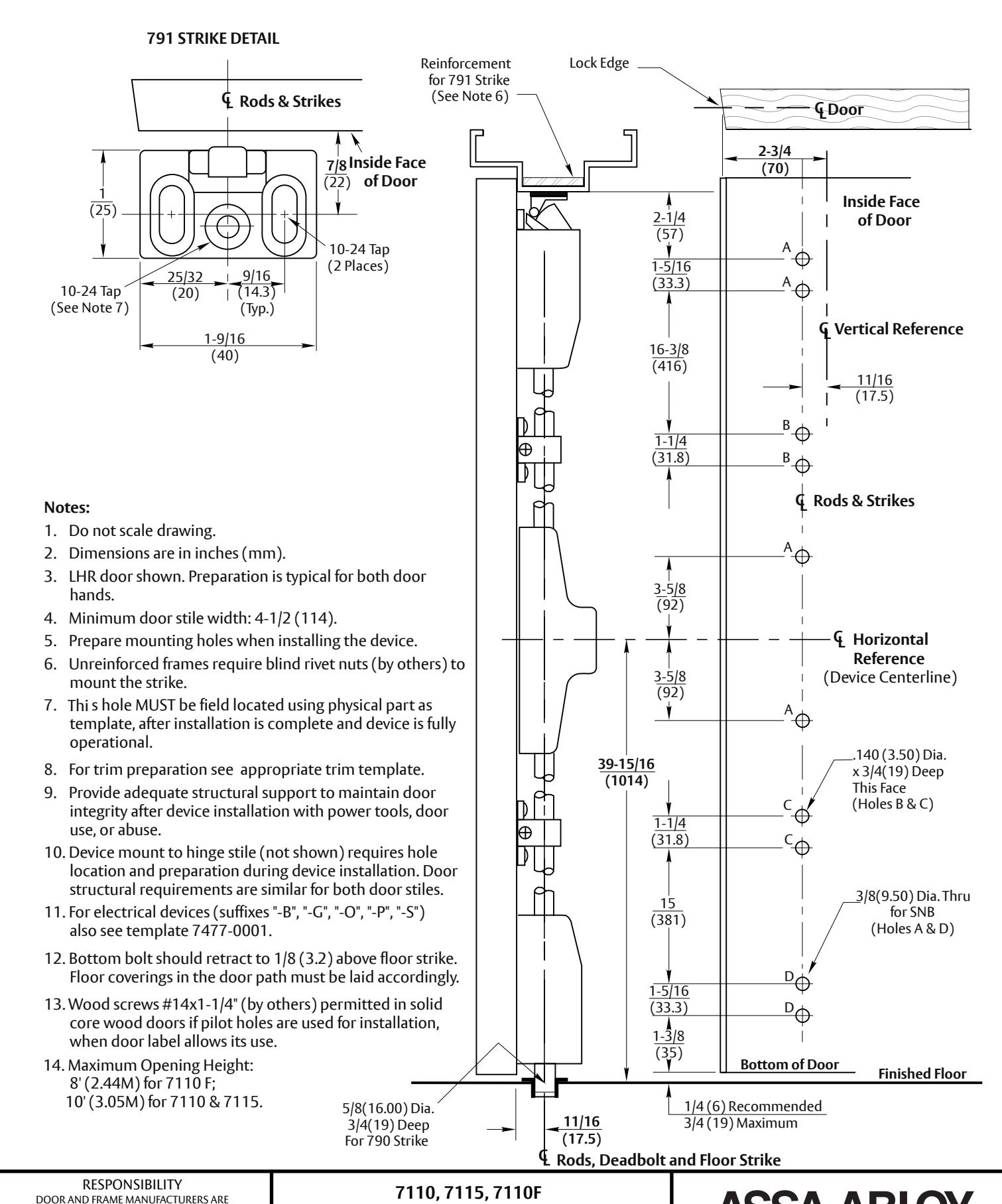

ASSA ABLOY ACCENTRA 7110(F), 7115 Wide Stile SVR Wood or Composite Door and H.M. Frame Template_7470-1010

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

Surface Vertical Rod Exit Devices

Standard Application for Wood or Composite Door and H.M.Frame

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-1010 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
