ASSA ABLOY ACCENTRA 7110(F), 7115 Wide Stile SVR 794 Floor Strike Optional SNB Wood or Composite_7470-1012

RESPONSIBILITY

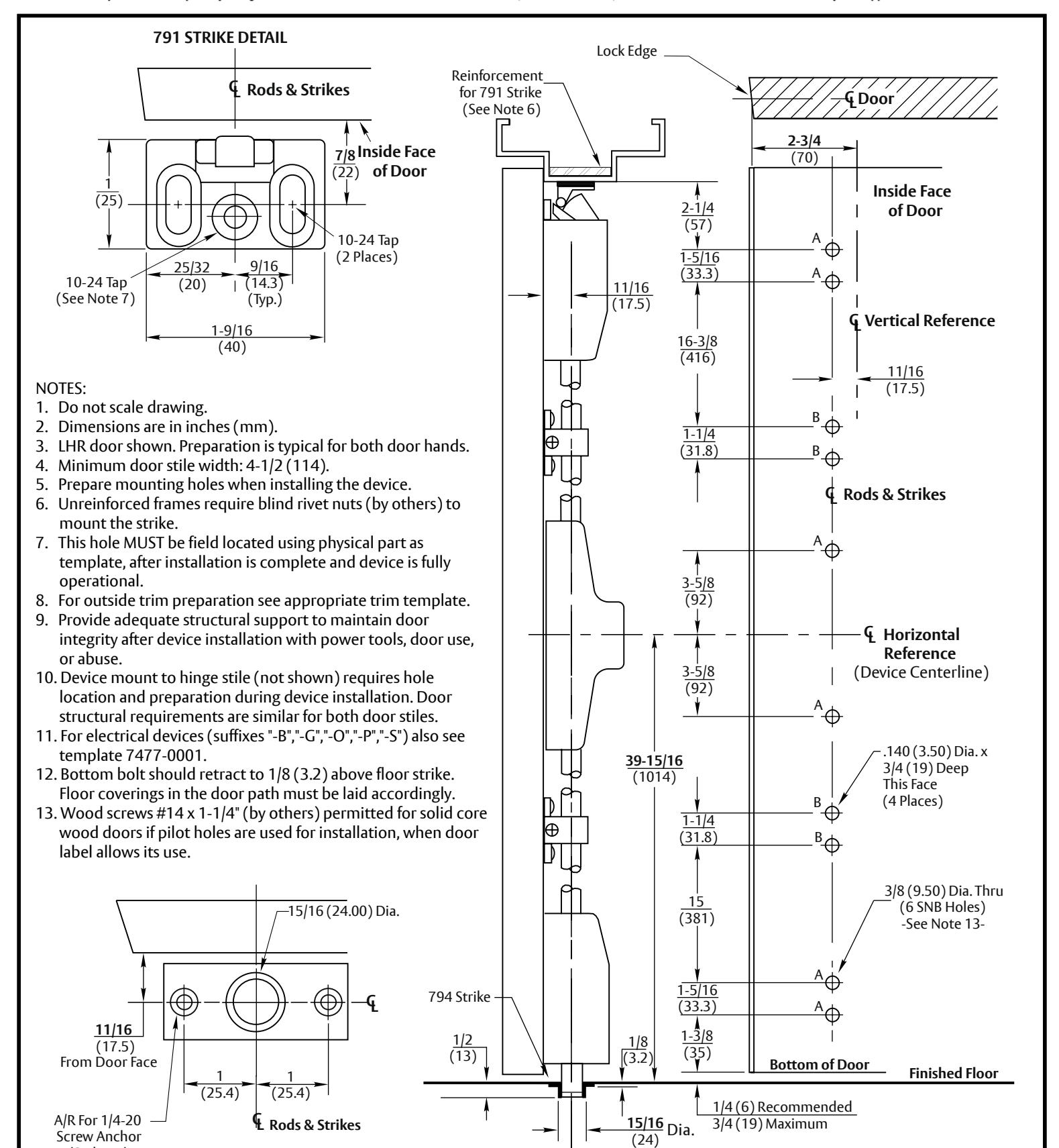

794 STRIKE DETAIL

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

7110, 7115 & 7110F Surface Vertical Rod Exit Devices with Optional 794 Floor Strike and SNB

Rods, Deadbolt and Floor Strike CL

Application for Wood or Composite Door and H.M. Frame without Threshold

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7470-1012 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23

(2 Places)
