ASSA ABLOY ACCENTRA 7110, 7115 Wide Stile SVR Bottom Pullman Latch Option Wood or Composite Door_7470-1016

Open the original PDF document

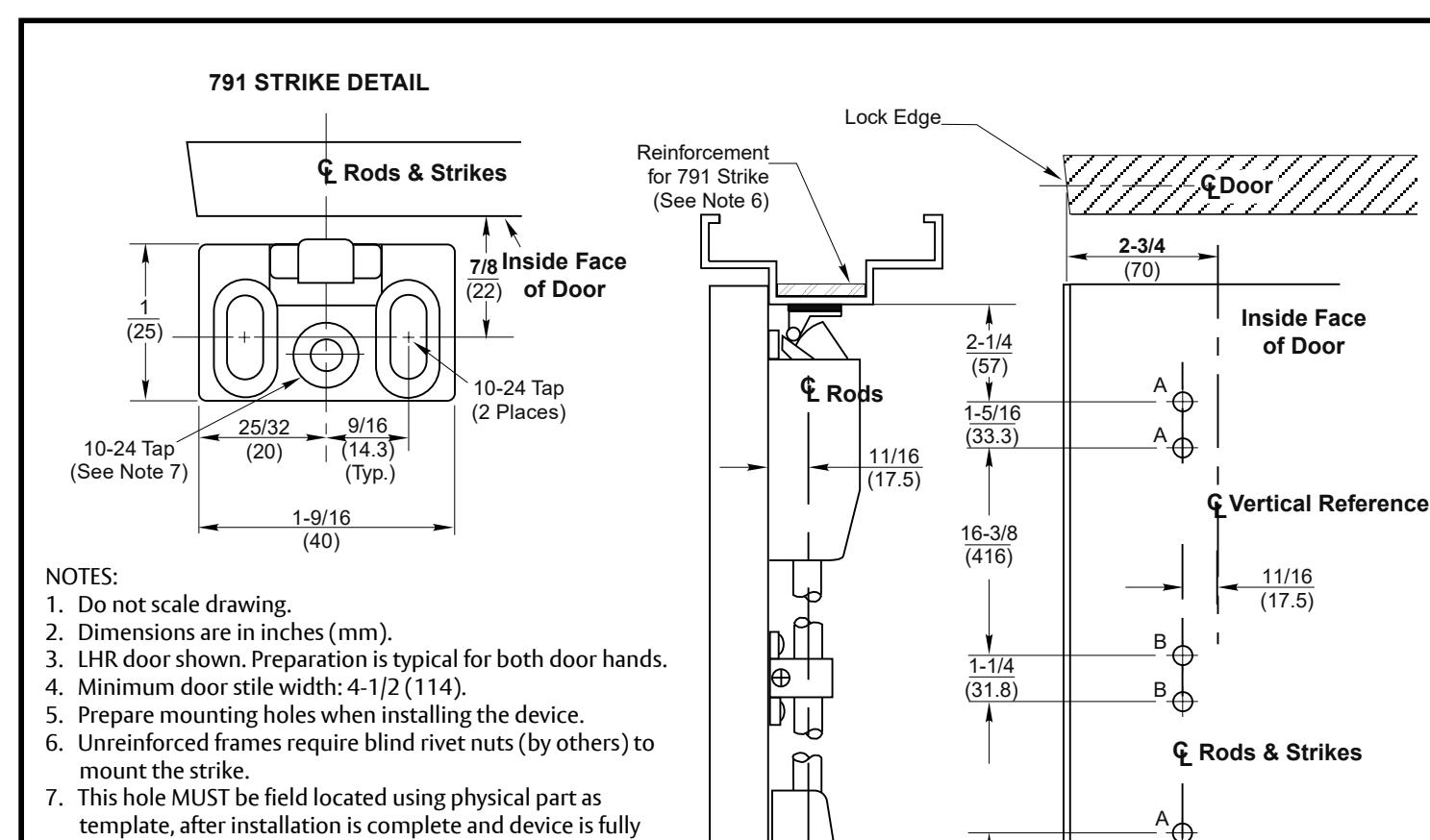

operational. 8. For outside trim preparation see appropriate trim template.
9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both door stiles.
11. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.
12. Wood screws #14 x 1-1/4" (by others) permitted for solid core wood doors if pilot holes are used for installation, when door label allows its use.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

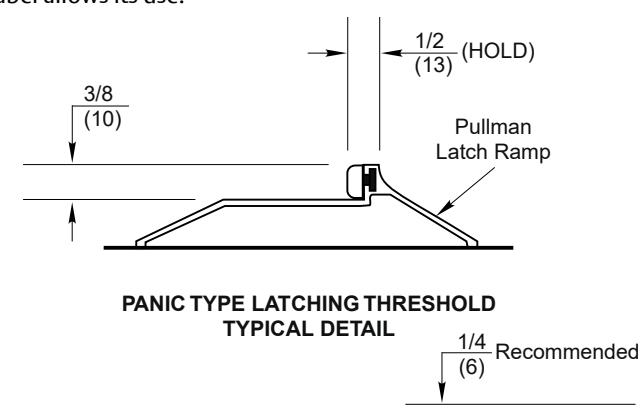

7110 & 7115 Surface Vertical Rod Panic Devices

Application for Wood or Composite Door and H.M. Frame, with Latching Threshold

Bottom of Door

A A

.140 (3.50) Dia. x 3/4 (19) Deep This Face (4 Places)

CL Horizontal Reference (Device Centerline)

3/8 (9.50) Dia. Thru (6 SNB Holes) -See Note 12-

Top of Threshold

B B

1-1/4 (31.8)

39-15/16 (1014)

15 (381)

1-5/16 (33.3) 1-7/8 (48)

3-5/8 (92)

7470-1016 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
