RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

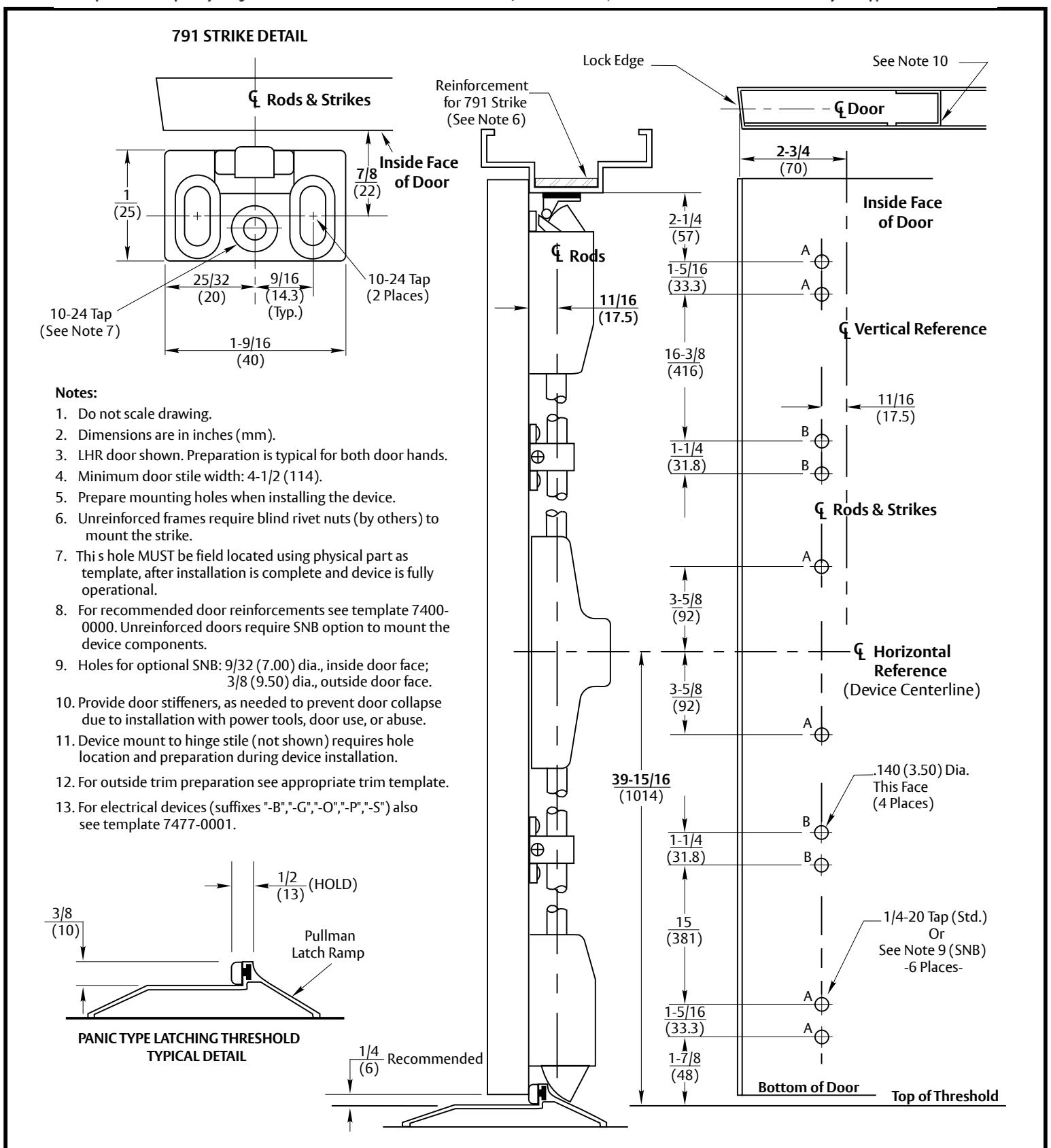

7110 & 7115 Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option
Application for Metal Door and Frame, with Latching Threshold
Contact us for support at 1-855-577-5078.
ASSA ABLOY
SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7470-0016 DATE 01-24
