RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

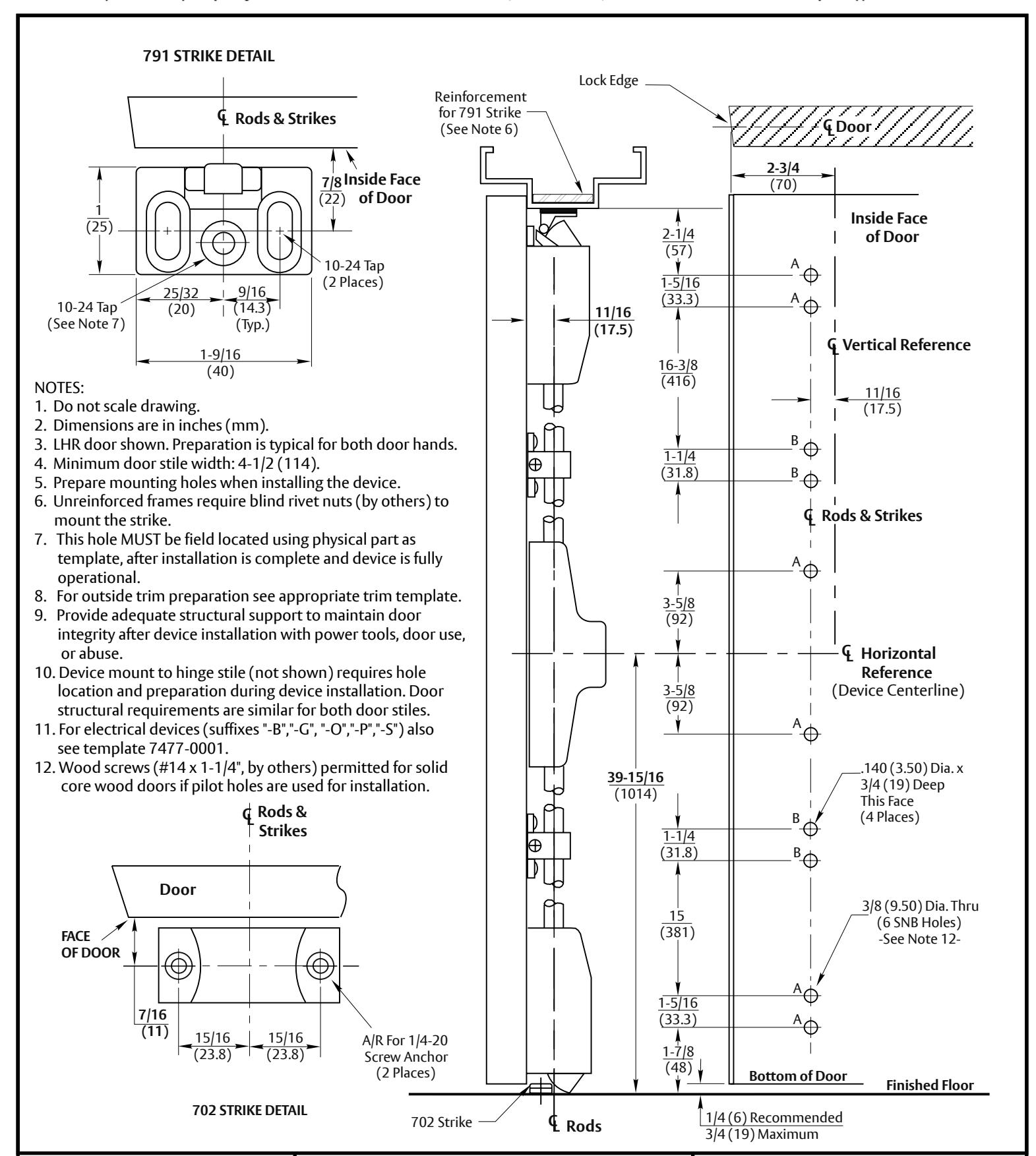

7110 & 7115 Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option
Application for Wood or Composite Door and H.M. Frame with 702 Floor Strike
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SUPERSEDES 8/99 DO NOT SCALE DRAWING TEMPLATE NUMBER 7470-1015 DATE 12-23
