ASSA ABLOY ACCENTRA 7110, 7115 Wide Stile SVR 702 Floor Strike Bottom Pullman Latch Option Metal_7470-0015

Open the original PDF document

View PDF

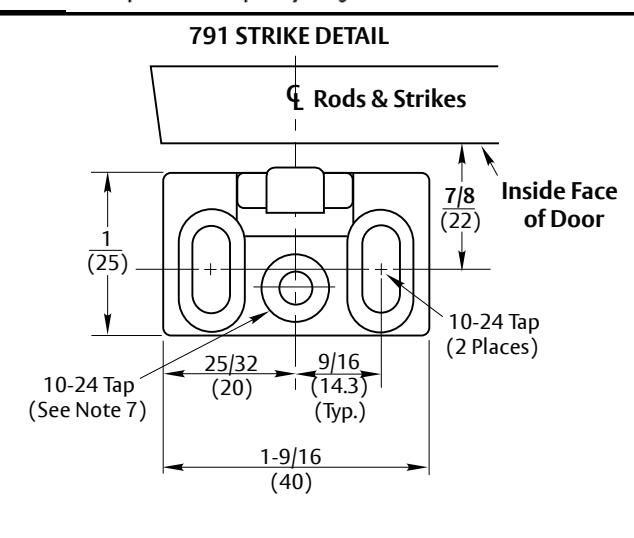

Reinforcement for 791 Strike (See Note 6)

2-1/4 (57) 1-5/16 (33.3)

1-1/4 (31.8)

16-3/8 (416)

11/16 (17.5)

Lock Edge

1-1/4 (31.8)

39-15/16 (1014)

15 (381)

1-5/16 (33.3) 1-7/8 (48)

3-5/8 (92)

3-5/8 (92)

Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width 4-1/2(114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. Thi s hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
  • 9. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
  • 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
  • 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
  • appropriate 12. For outside trim preparation see trim template.
  • 13. For electrical devices (suffixes "-B", "-G", "-O", "-P", "-S") also see template 7477-0001.

RESPONSIBILITY DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

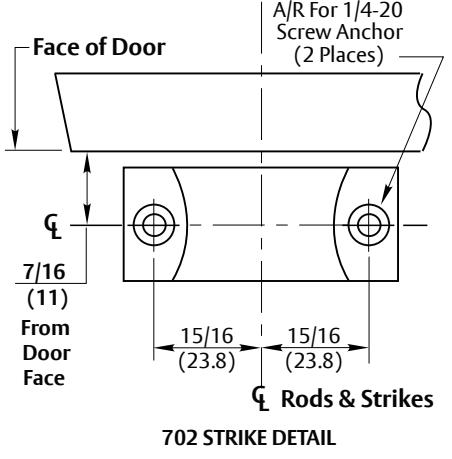

702 Strike CL

7110 & 7115 Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option Application for Metal Door and Frame without Threshold (702 Floor Strike)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

Bottom of Door

1/4 (6) Recommended 3/4 (19) Maximum

A A

.140 (3.50) Dia. This Face (4 Places)

Horizontal Reference (Device Centerline)

CL

1/4-20 Tap (Std.) Or See Note 9 (SNB) -6 Places-

Finished Floor

See Note 10

Inside Face of Door

Vertical Reference

11/16 (17.5)

CL Door

A A

2-3/4 (70)

CL

B B

A

CL

Rods & Strikes

A

B B

7470-0015 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
