ASSA ABLOY ACCENTRA 7100, 7200 Wide and Narrow Stile Electric Exit Devices with Suffixes -D, -G, -P_7477-0001

• 4. This preparation is an addition to preparation shown on device template.
• 5. See device template to locate centerline of device template.
• Shields for wiring access recommended for insulated and composite doors.
• 7. Locate and prepare wiring access holes when installing device.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

7100 and 7200 Series Electric Exit Devices with Suffixes "D", "G", "-P", "-B", "-O", "-S", "-Safe", and "-Secure"

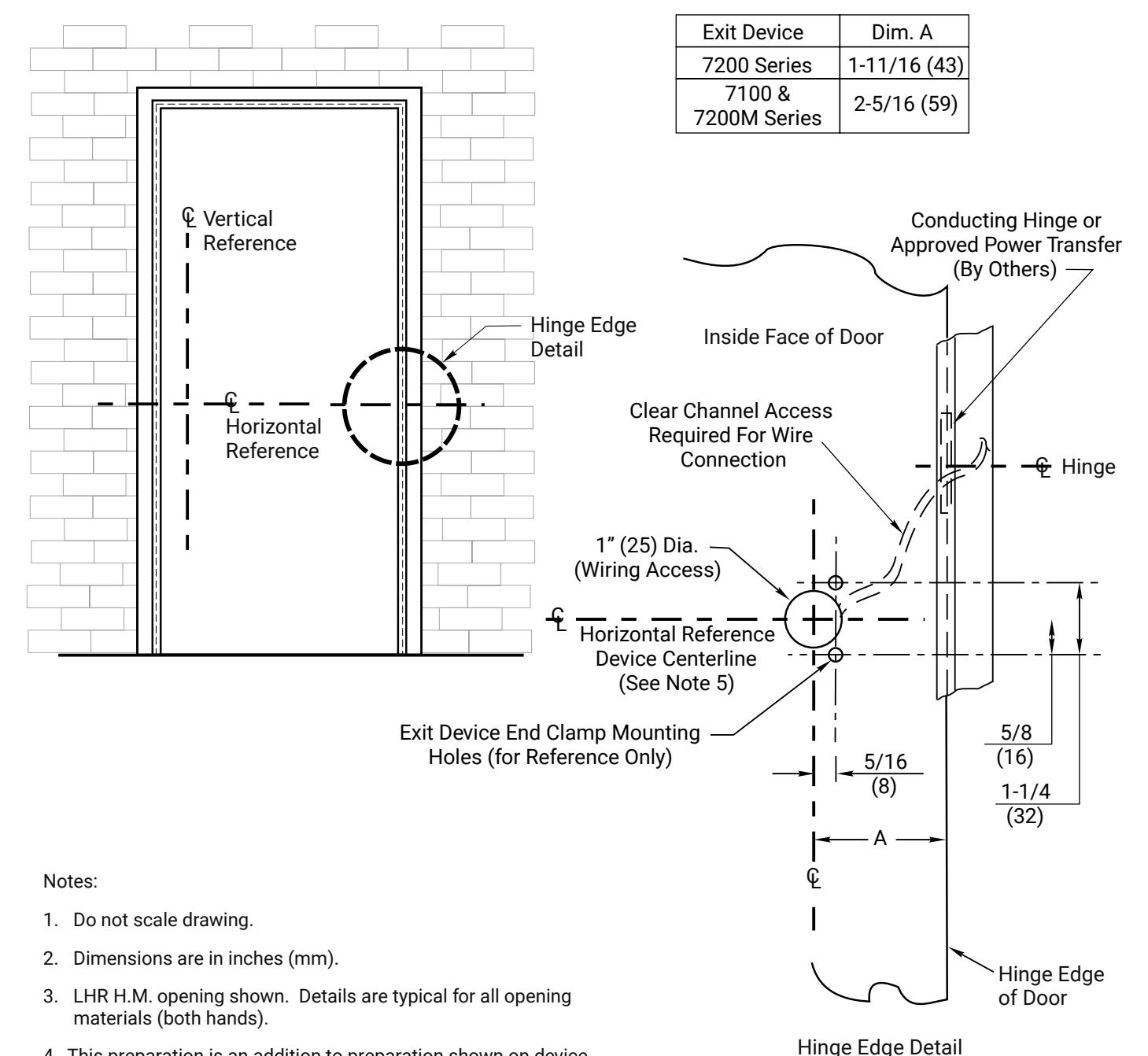

Preparation of Wiring Access for Metal or Wood Door and Frames (Not for Fire Labeled Devices) 1-855-557-5078 Ext. 2 www.accentra-assaabloy.com
