ASSA ABLOY ACCENTRA 690F and 691F (Electric) Trim for 2100(F), 6000(F), 7100(F) Rim, SquareBolt, SVR_7400-1690

Open the original PDF document

NOTES

1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
2. Do not scale drawing.
3. Dimensions are in inches (mm).
4. LHR door shown. Preparation is typical for both door hands.
5. Provide adequate structural support to maintain door integrity during operation.
6. Prepare mounting holes when installing trim.
7. Dimensions given about a centerline are symmetrical.
8. Unspecified radius 1/8 maximum.

NOTE: For 7000 Series, wire access hole must be prepared if a wire raceway in the door is not provided (device will be used as raceway). For 2100(F) and 6000(F) series, wire raceway MUST BE provided in the door. Do not prepare wire access hole.

Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADFOLIATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST RE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

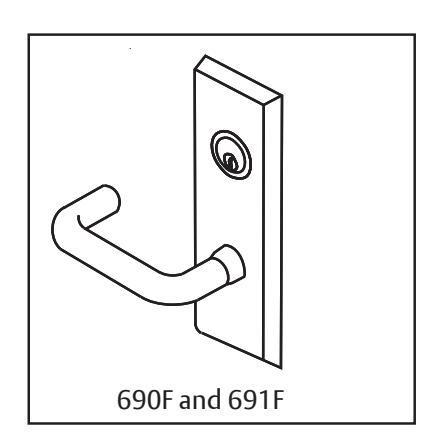

690F, 691F (Electric Trim)

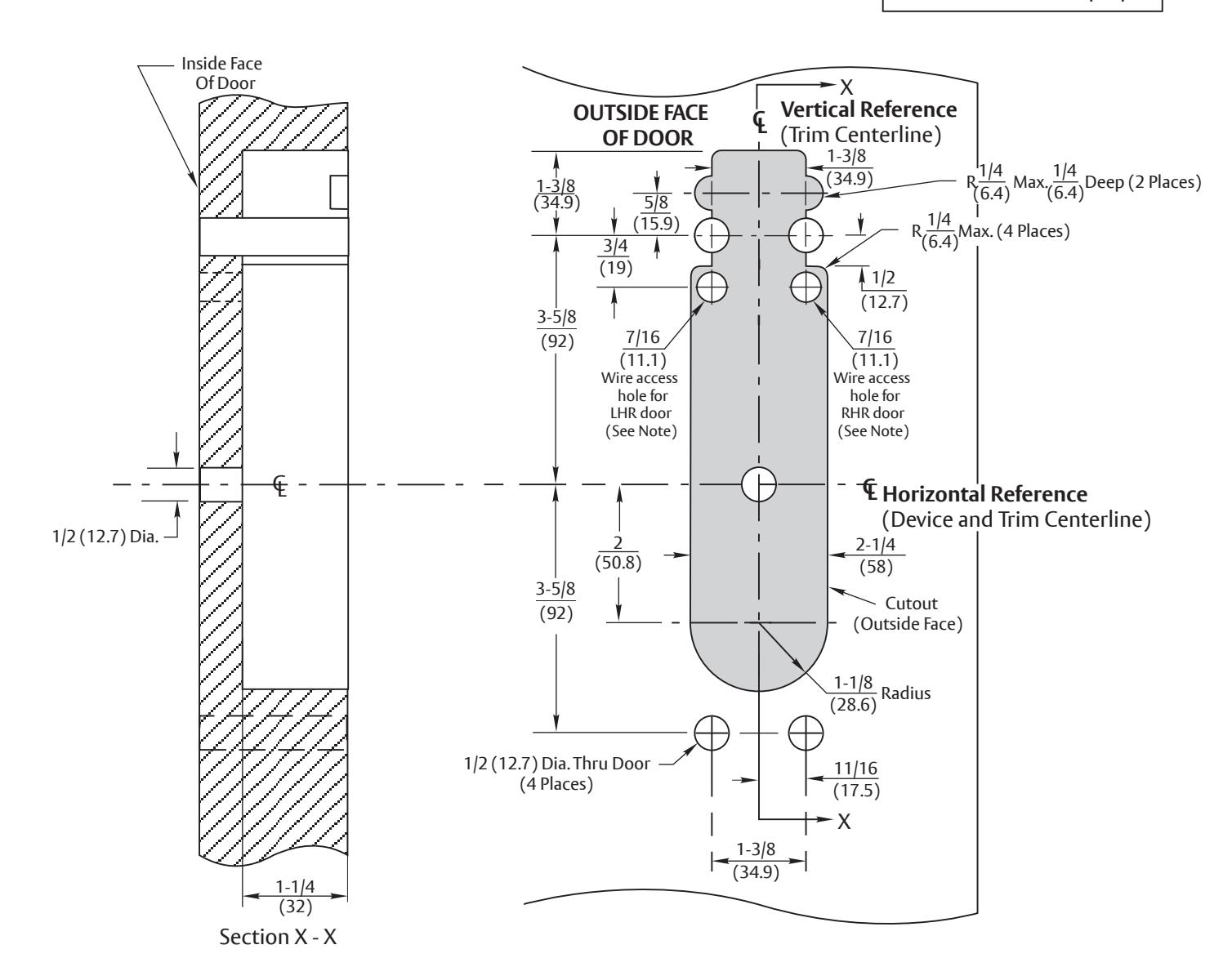

7000(F) Series, 6000(F) Series & 2100(F) Series SquareBolt®, Rim and Surface Vertical Rod Exit Devices Wood or Composite Door Preparation

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING 7400-1690 05-18

11-23

TEMPLATE NUMBER 7400-1690
