ASSA ABLOY ACCENTRA 684F Trim for 1500(F) and 7100(F) Wide Stile Mortise Wood or Composite Doors_7400-1684

Open the original PDF document

NOTES:

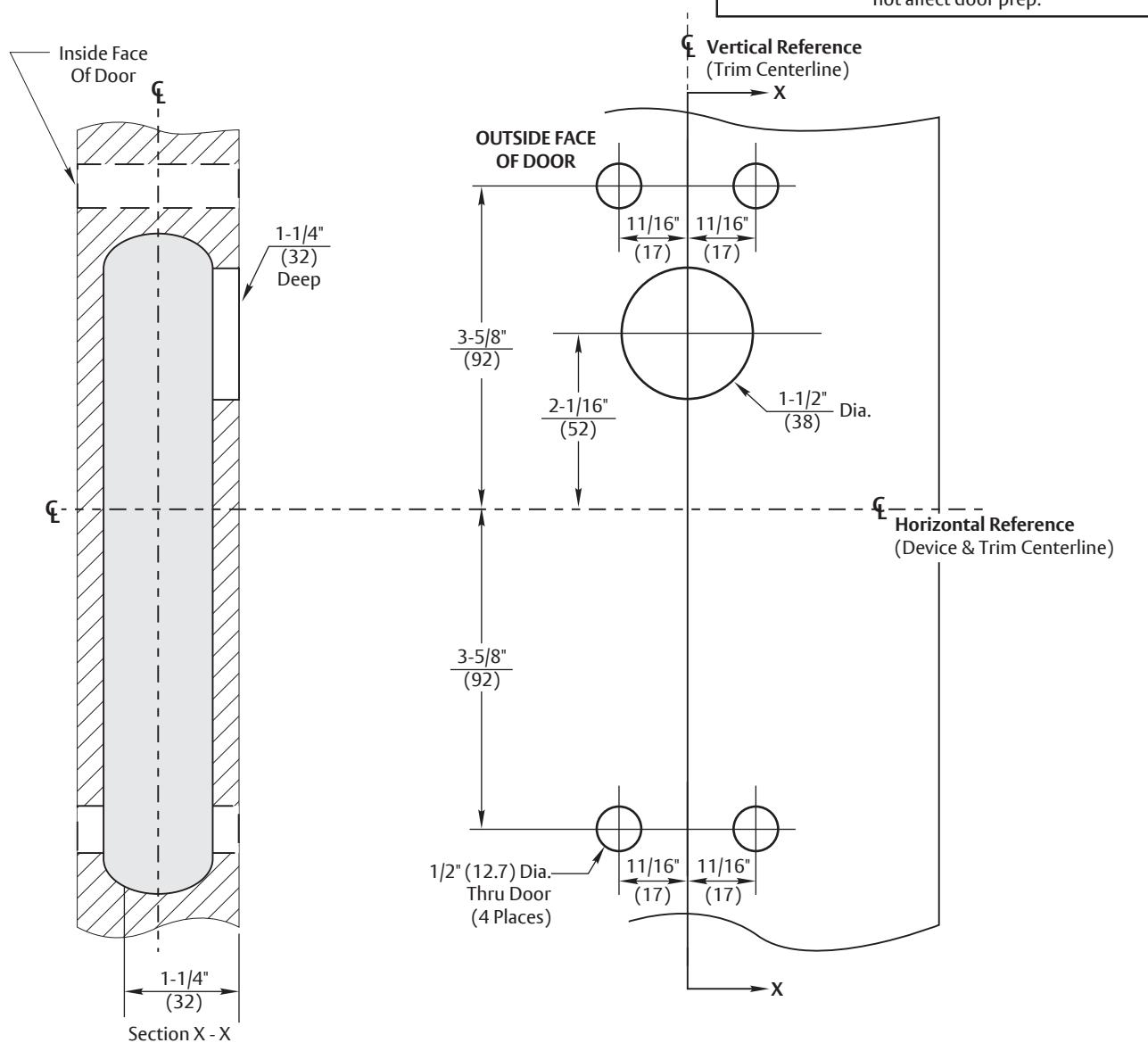

1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
2. Do not scale drawing.
3. Dimensions are in inches (mm).
4. LHR door shown. Preparation is typical for both door hands.
5. Provide adequate structural support to maintain door integrity during operation.
6. Prepare mounting holes when installing trim.
7. Dimensions given about a centerline are symmetrical.

NOTE: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

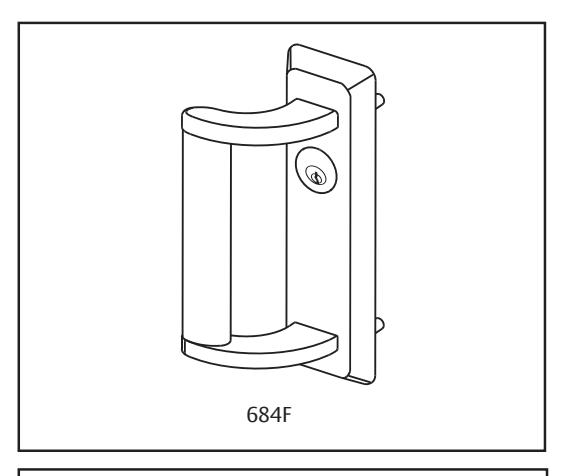

684F Trim For use with 1500(F) or 7100(F) Mortise Exit Devices

Wood or Composite Door Preparation

ASSA ABLOY

SUPERSEDES 7400-1684 (11-06)

DO NOT SCALE DRAWING

TEMPLATE NUMBER

7400-1684

01-24
