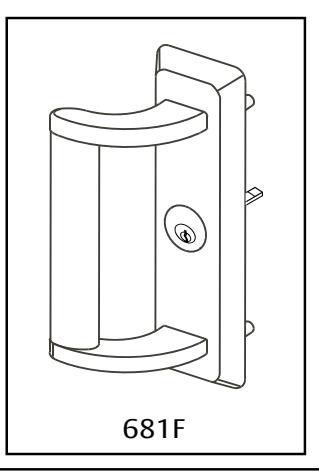

ASSA ABLOY ACCENTRA 681F Trim for 7100(F), 7150(F) Wide Stile Rim, SquareBolt Nightlatch (03_7400-0681

NOTES:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Dimensions given about a centerline are symmetrical.

Note: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

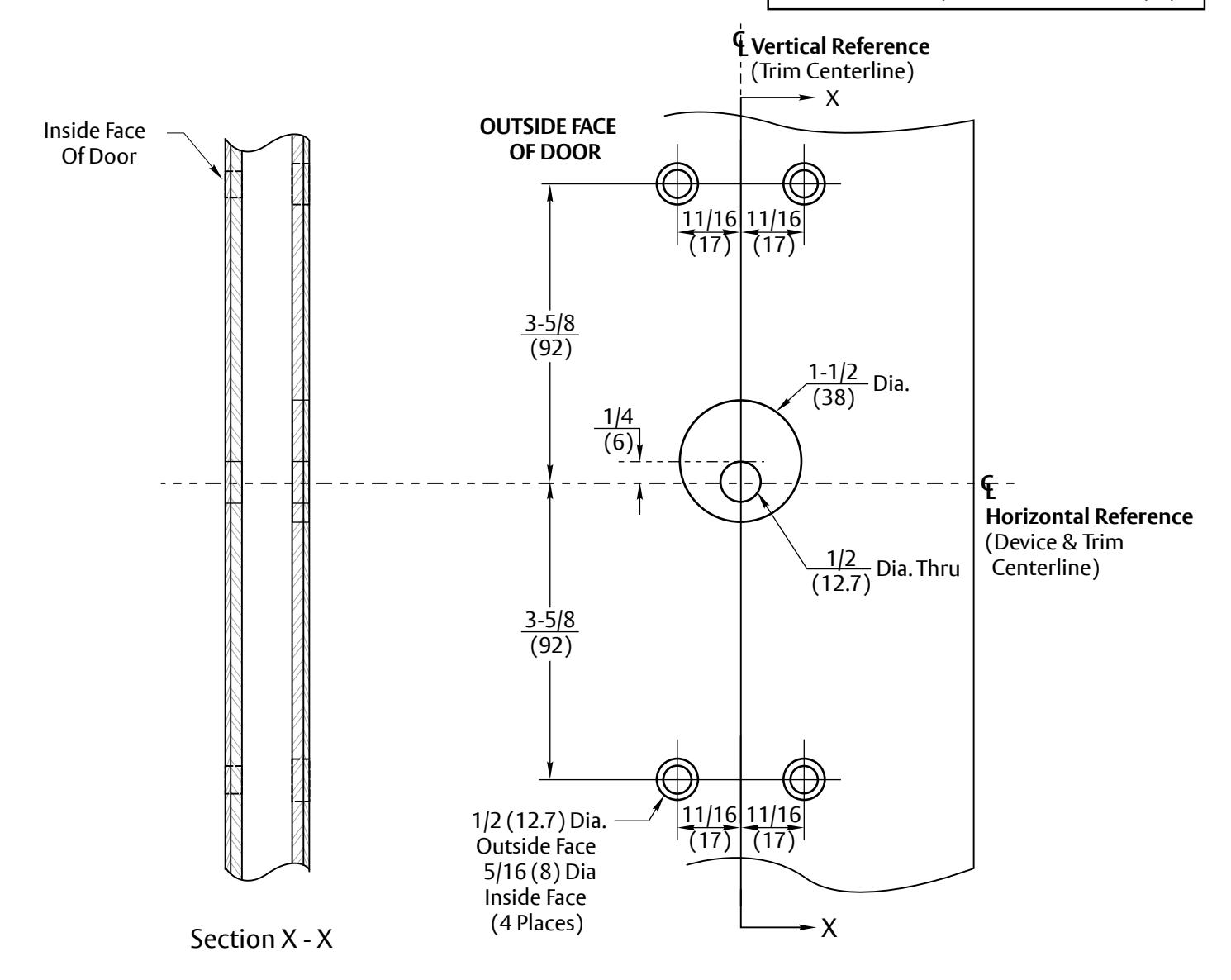

681F Trim Metal Door Preparation

For use with 1500(F), 2100(F) or 7100(F) Series Rim and Mortise Exit Devices (Not Recommended for Vertical Rod)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7400-0681 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 11/06 12-23
