ASSA ABLOY ACCENTRA 680F Trim for 1500(F), 2100(F), and 7100(F) Wide Stile Rim, SquareBolt, SVR, CVR_7400-0680

NOTES:

• 1.This template is an addition to the device template.Locate centerlines using horizontal and vertical references on device template.
• 2.Do not scale drawing.
• 3.Dimensions are in inches (mm).
• 4.LHR door shown.Preparation is typical for both door hands.
• 5.Provide adequate structural support to maintain door integrity during operation.
• 6.Prepare mounting holes when installing trim.

Note: Lever and knob prefix does not affect door prep.

OUTSIDE FACE OF DOOR X Vertical Reference (Trim Centerline) CL X CL 7.Dimensions given about a centerline are symmetrical. Horizontal Reference (Device & Trim Centerline) 3-5/8 (92) 3-5/8 (92) 11/16 (17) 11/16 (17) 11/16 (17) 11/16 (17) Section X - X Inside Face Of Door 1/2 (12.7) Dia. Outside Face 5/16 (8) Dia Inside Face (4 Places)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

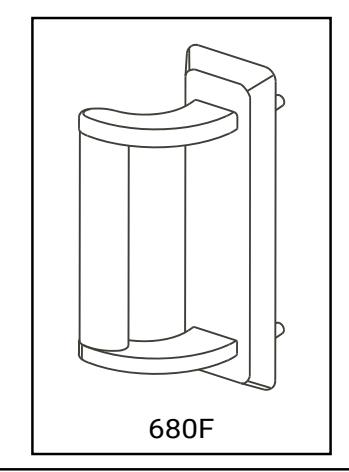

680F Trim Metal Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com For use with 1500(F), 2100(F) or 7100(F) Series Rim, Mortise and Vertical Rod Exit Devices

Copyright © 2006, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

11/06

SUPERSEDES DO NOT SCALE DRAWING

7400-0680 TEMPLATE NUMBER

DATE 04-24
