ASSA ABLOY ACCENTRA 675F Trim for 1530(F), 6130ED(F), 7130(F) Wide Stile Mortise Passage (15_7400-0675

NOTES:

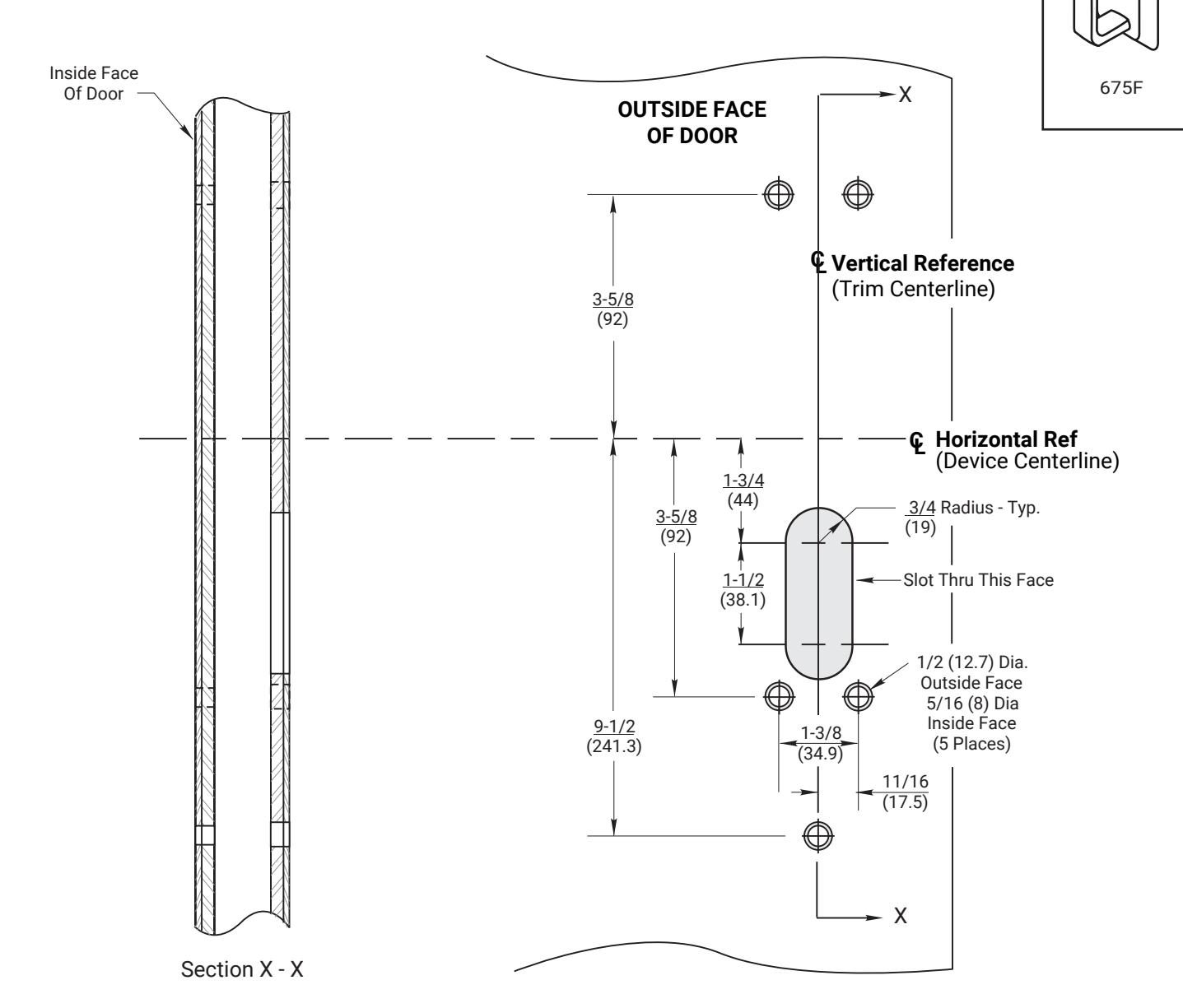

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• For door reinforcement see template 7400-0000. 5.
• 6. Provide adequate internal support to prevent door deformation from bolting trim to the device.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

675F Trim

With 1530(F), 6130(F) or 7130(F) Series Mortise Exit Devices

1-855-557-5078 Ext. 2 Metal Door Preparation

www.accentra-assaabloy.com

Copyright © 2006, 2015, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

TEMPLATE NUMBER

05/15

SUPERSEDES DO NOT SCALE DRAWING

7400-0675

DATE 04-24
