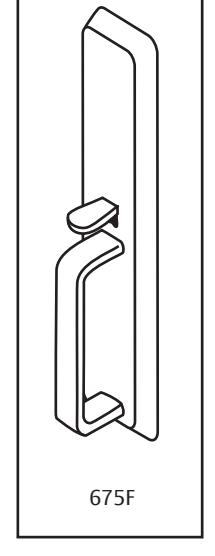

ASSA ABLOY ACCENTRA 675F Trim for 1500(F), 6100ED(F), and 7100(F) Series Wide Stile Mortise Passage_7400-1675

NOTES :

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Shaded area represents mortise lock cavity from device template.
• 6. Provide adequate structural support to maintain door integrity during operation.

RESPONSIBILITY

Section X - X

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

675F Trim Application With 1530(F), 6130(F), or 7130(F) Series Mortise Exit Devices

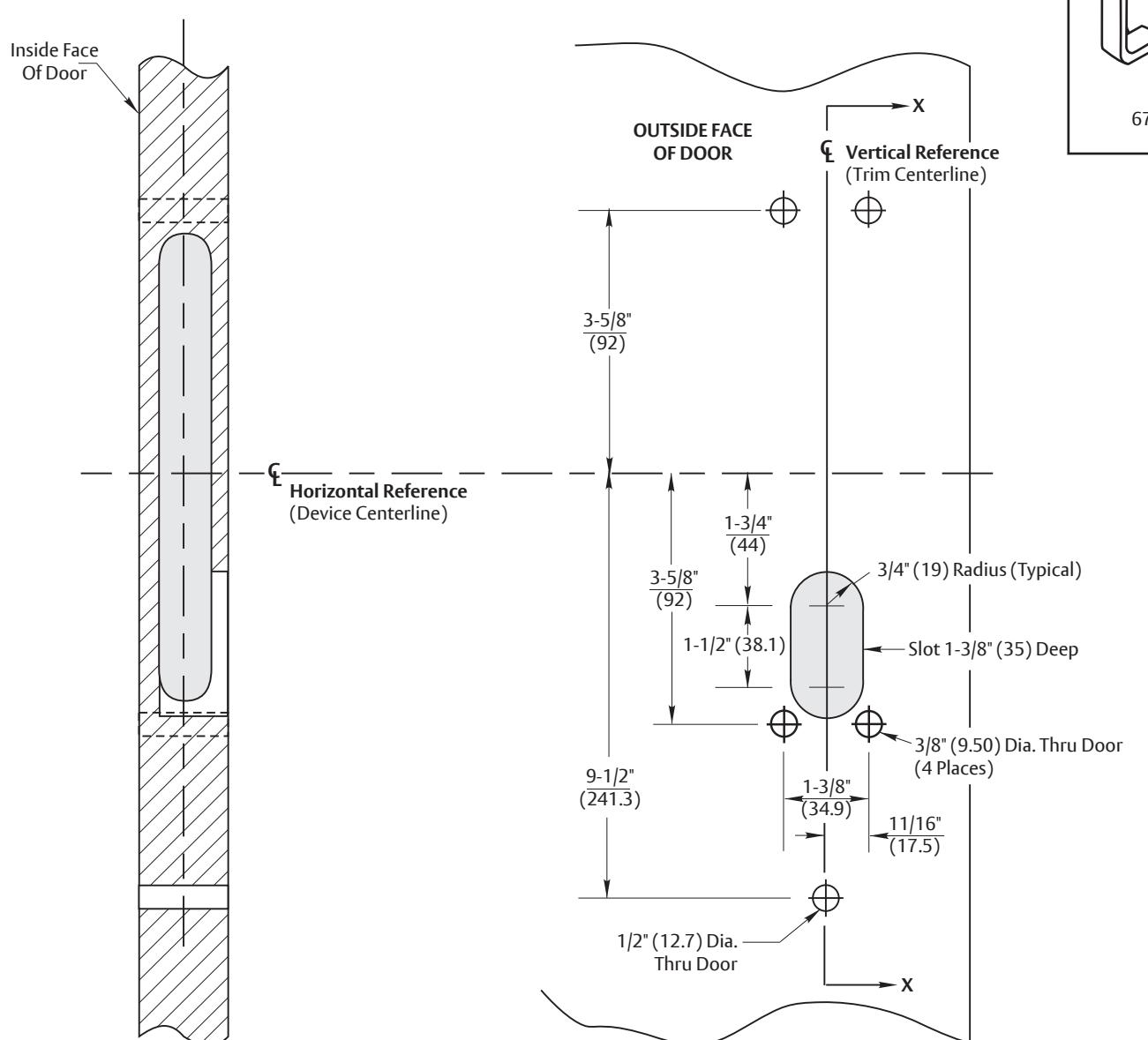

Wood or Composite Door Preparation

SUPERSEDES DO NOT SCALE DRAWING 7400-1675 (05-15)

TEMPLATE NUMBER

7400-1675 DATE

01-24
