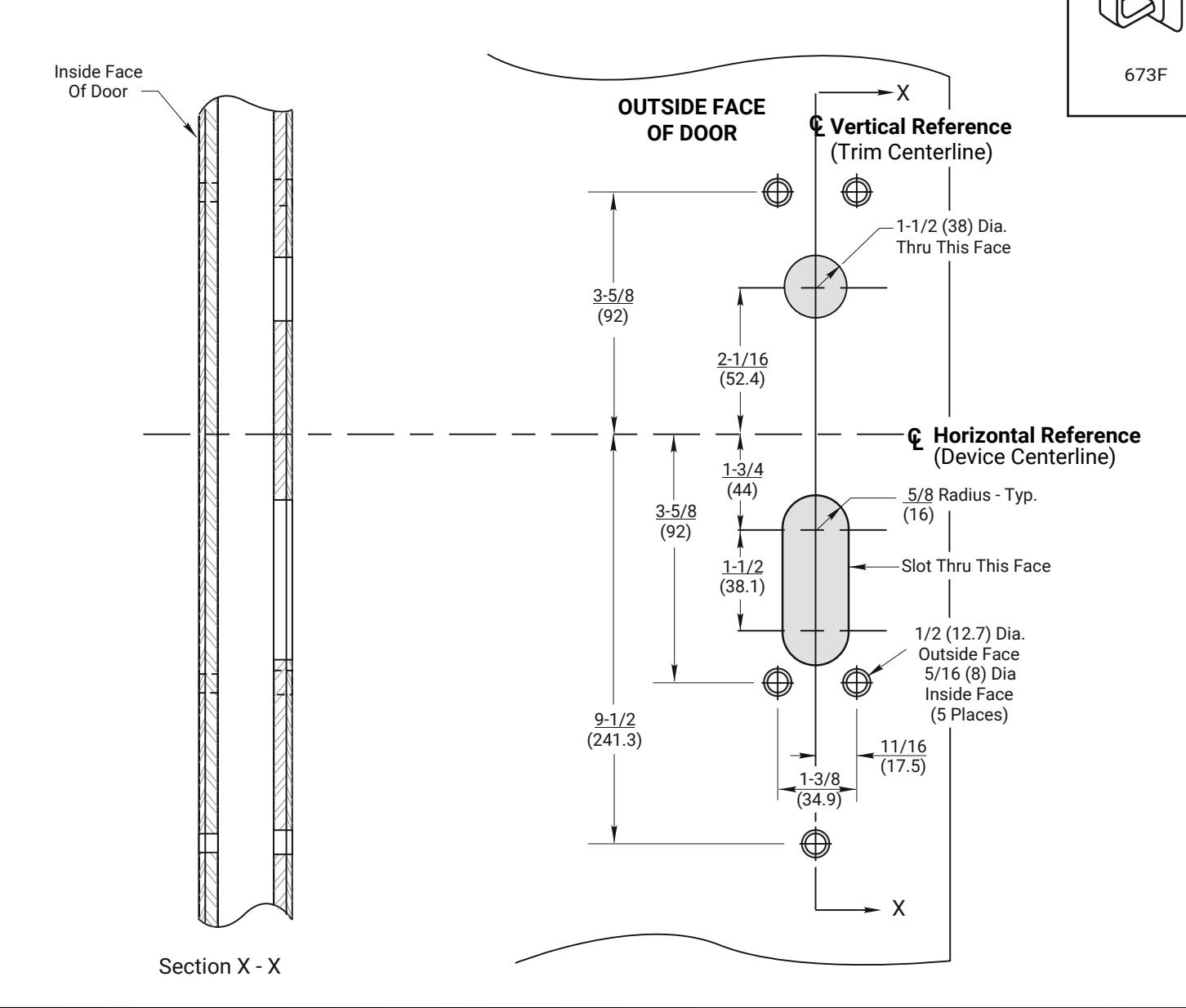

ASSA ABLOY ACCENTRA 673F Trim for 1530(F), 6130ED(F), 7130(F) Wide Stile Mortise Classroom (05_7400-0673

NOTES:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Provide adequate internal support to prevent door deformation from bolting trim to the device.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

673F Trim

Electrically Operated Mortise Lock Fail Safe (SAF) & Fail Secure (SEC)

Metal Door Preparation
