ASSA ABLOY ACCENTRA 662F Trim for 1530(F), 6130ED(F), 7130(F) Wide Stile Mortise Nightlatch (03_7400-0662

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

RESPONSIBILITY DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

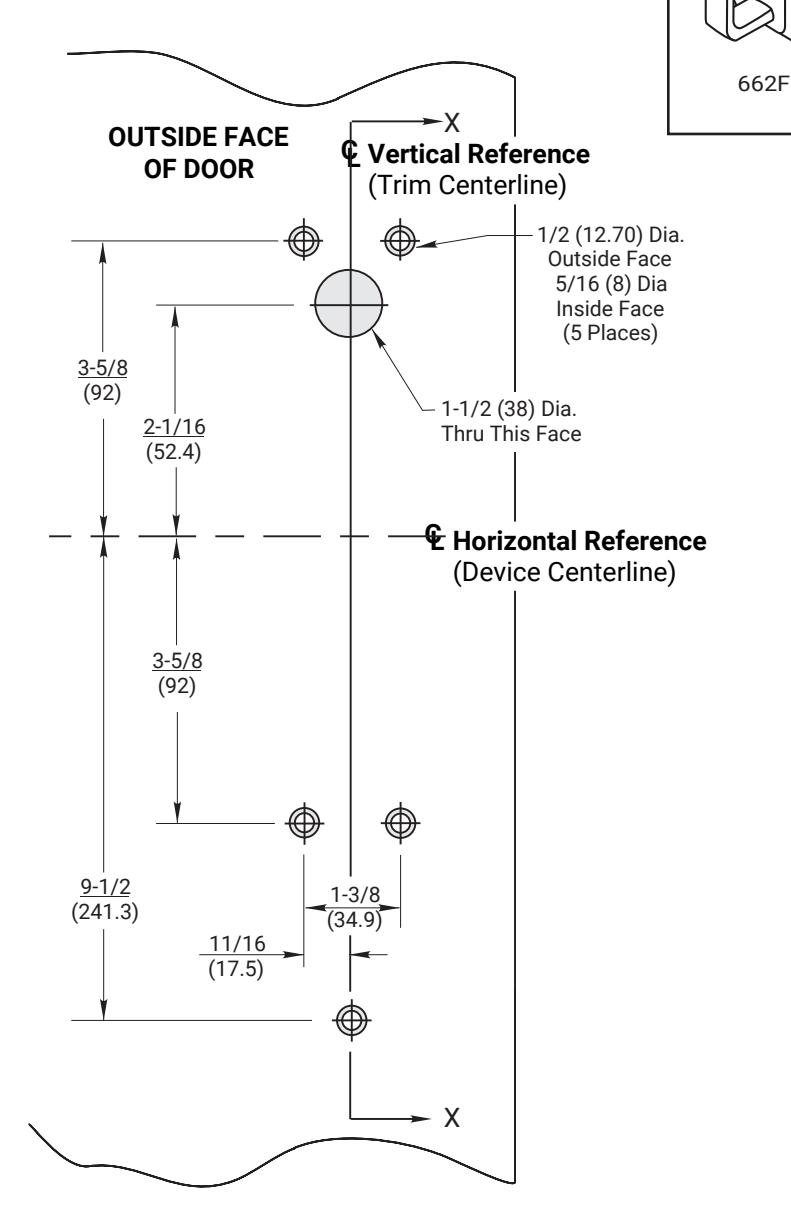

662F Trim

With 1530(F), 6130(F) or 7130(F) Series Mortise Exit Devices

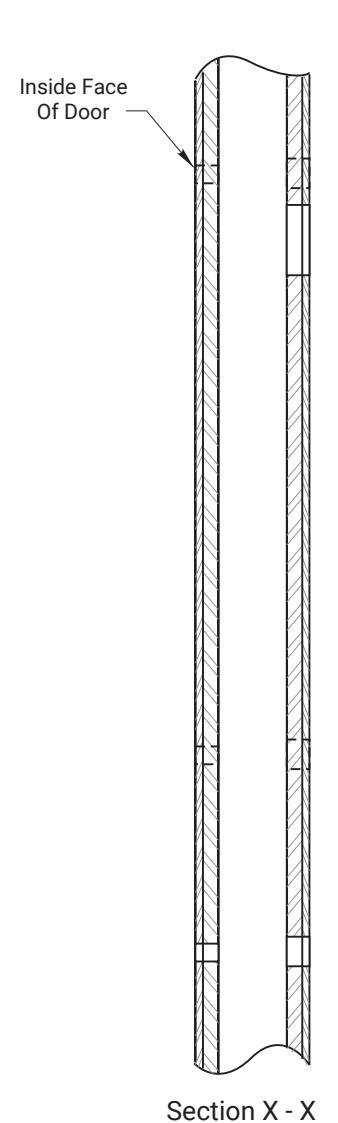

Metal Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

ASSA ABLOY

ACCENTRA

Experience a safer and more open world

Copyright © 2006, 2015, 2024, ASSA ABLOY ACCENTRA ^{\rm M} Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES 05/15 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE

7400-0662 1 of 1

04-24
