ASSA ABLOY ACCENTRA 661F Trim for 1530(F), 7130(F) Wide Stile Mortise Nightlatch (03) Function Metal_7400-0661

Notes:

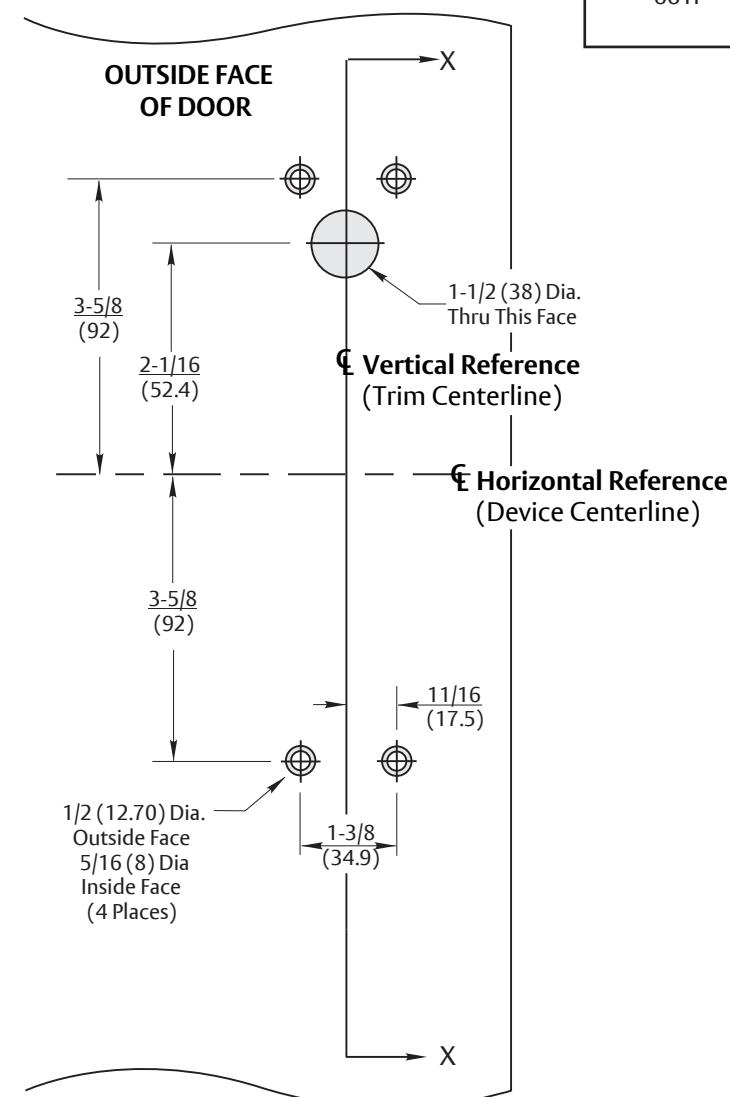

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

RESPONSIBILITY

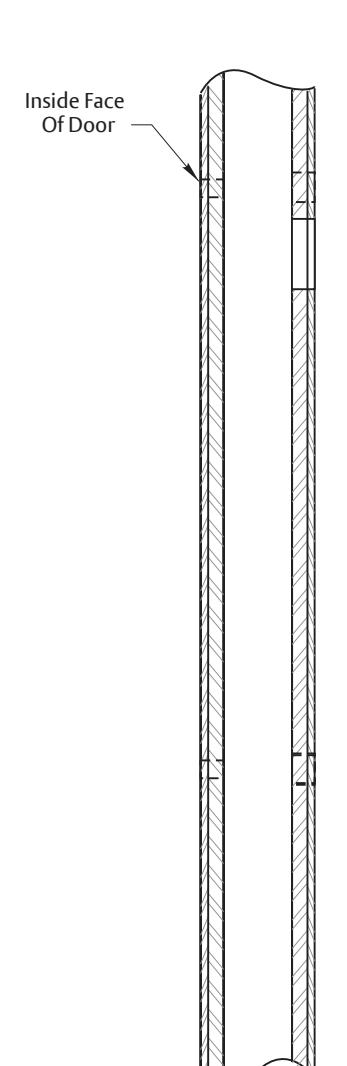

Section X - X

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

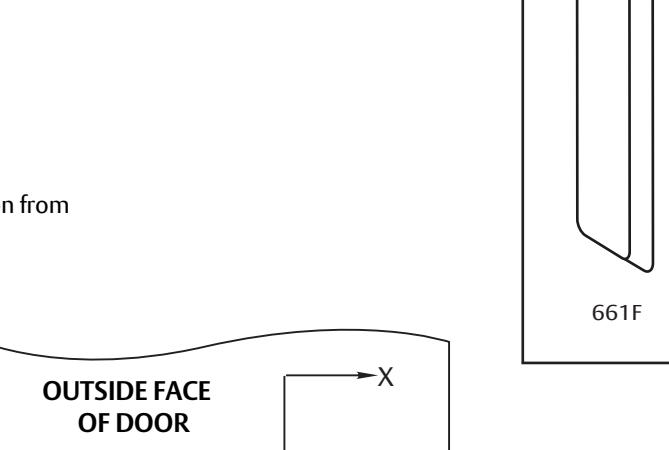

661F Trim

With 1530(F) or 7130(F) Series Mortise Exit Devices

Metal Door Preparation MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7400-0661 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 08/12 12-23
