ASSA ABLOY ACCENTRA 654F and 658F Trim for 6130ED(F), 7130(F) Wide Stile Mortise Dummy (02_7400-0658

Notes:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• For door reinforcement see template 7400-0000. 5.
• Prepare mounting holes when installing trim. 6.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

NOTE: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

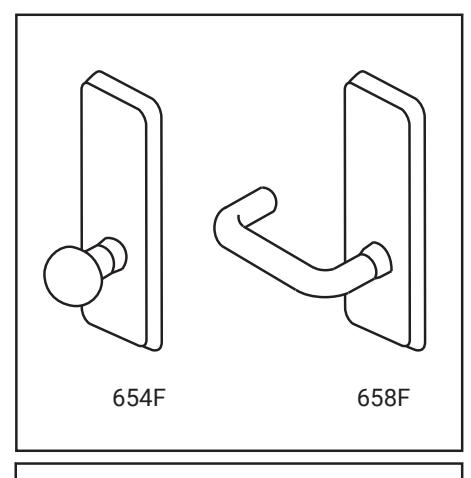

654F and 658F Trim

With 6130(F) & 7130(F) Series Mortise Exit Devices

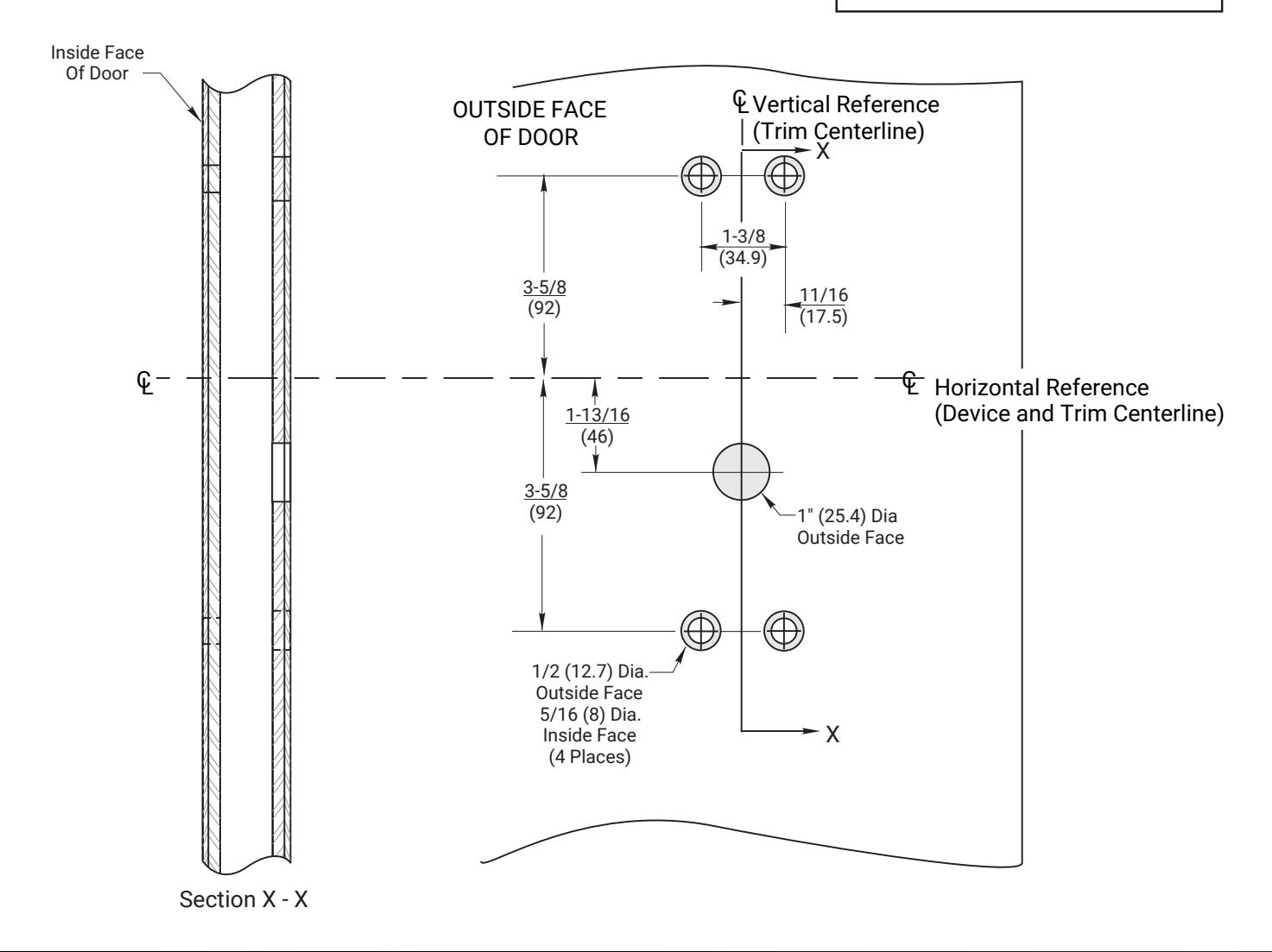

Metal Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

Copyright © 2006, 2015, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

05/15

SUPERSEDES DO NOT SCALE DRAWING

7400-0658 TEMPLATE NUMBER

DATE 04/24
