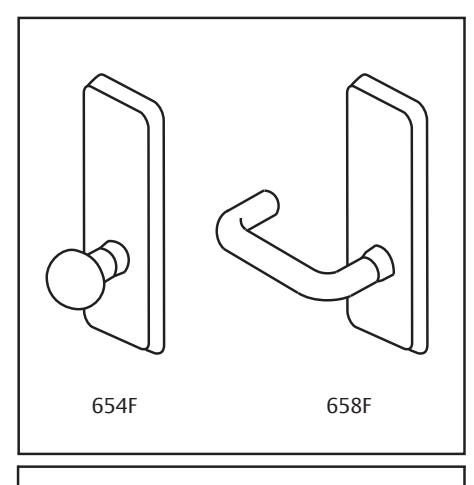

ASSA ABLOY ACCENTRA 654F and 658F Trim for 6100ED(F) and 7100(F) Series Wide Stile Mortise Dummy (02_7400-1658

NOTES :

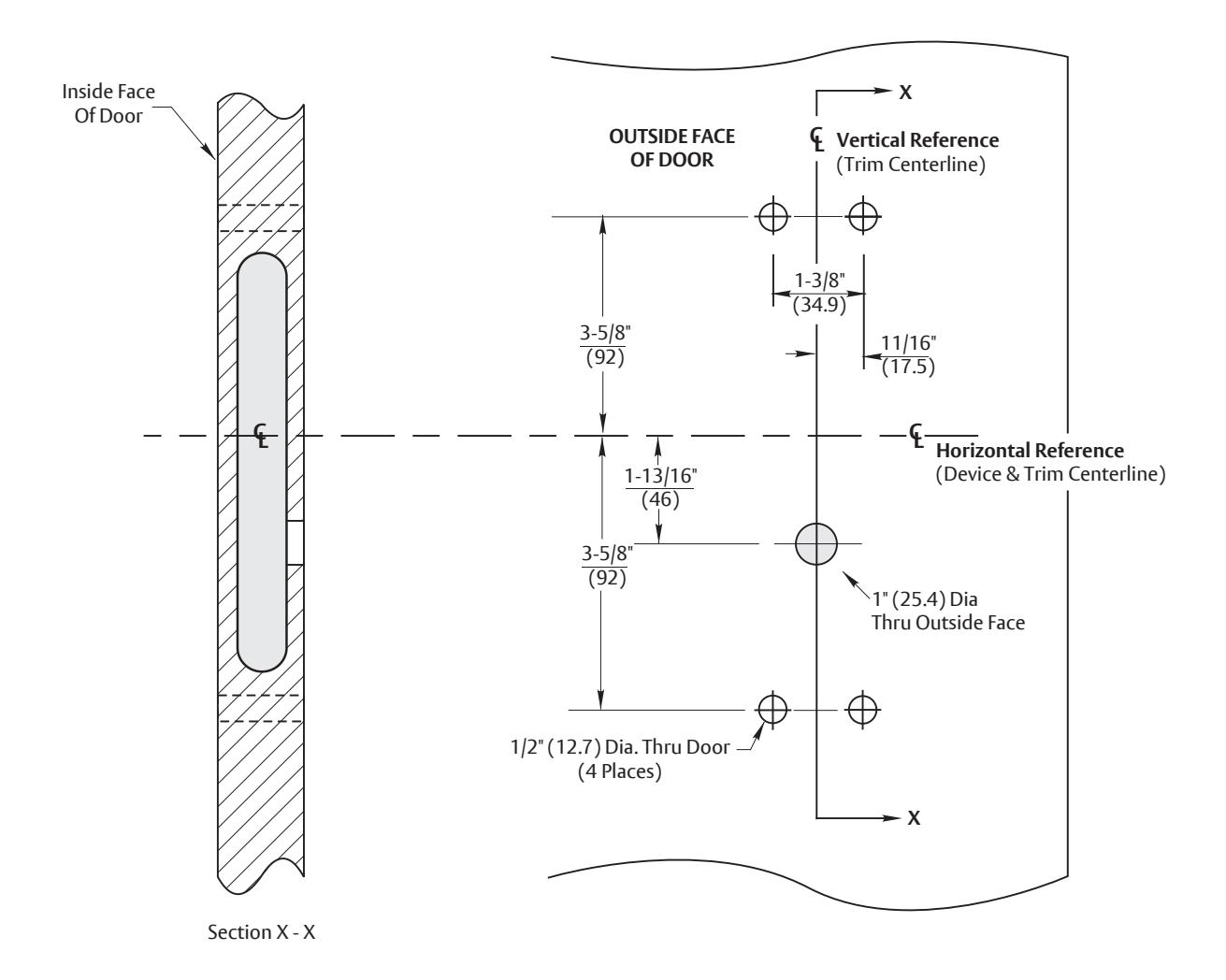

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Shaded area represents mortise lock cavity from device template.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate structural support to maintain door integrity during operation.

NOTE: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

654F and 658F Trim With 6130(F) or 7130(F) Series Mortise Exit Devices

Wood or Composite Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7400-1658 (05-15)

TEMPLATE NUMBER

7400-1658 DATE

12-23
