RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

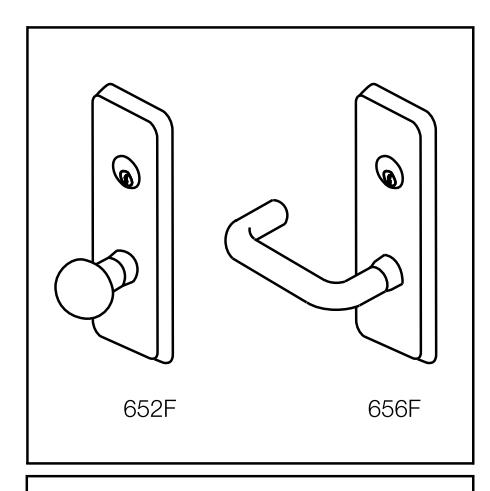

652F and 656F Trim

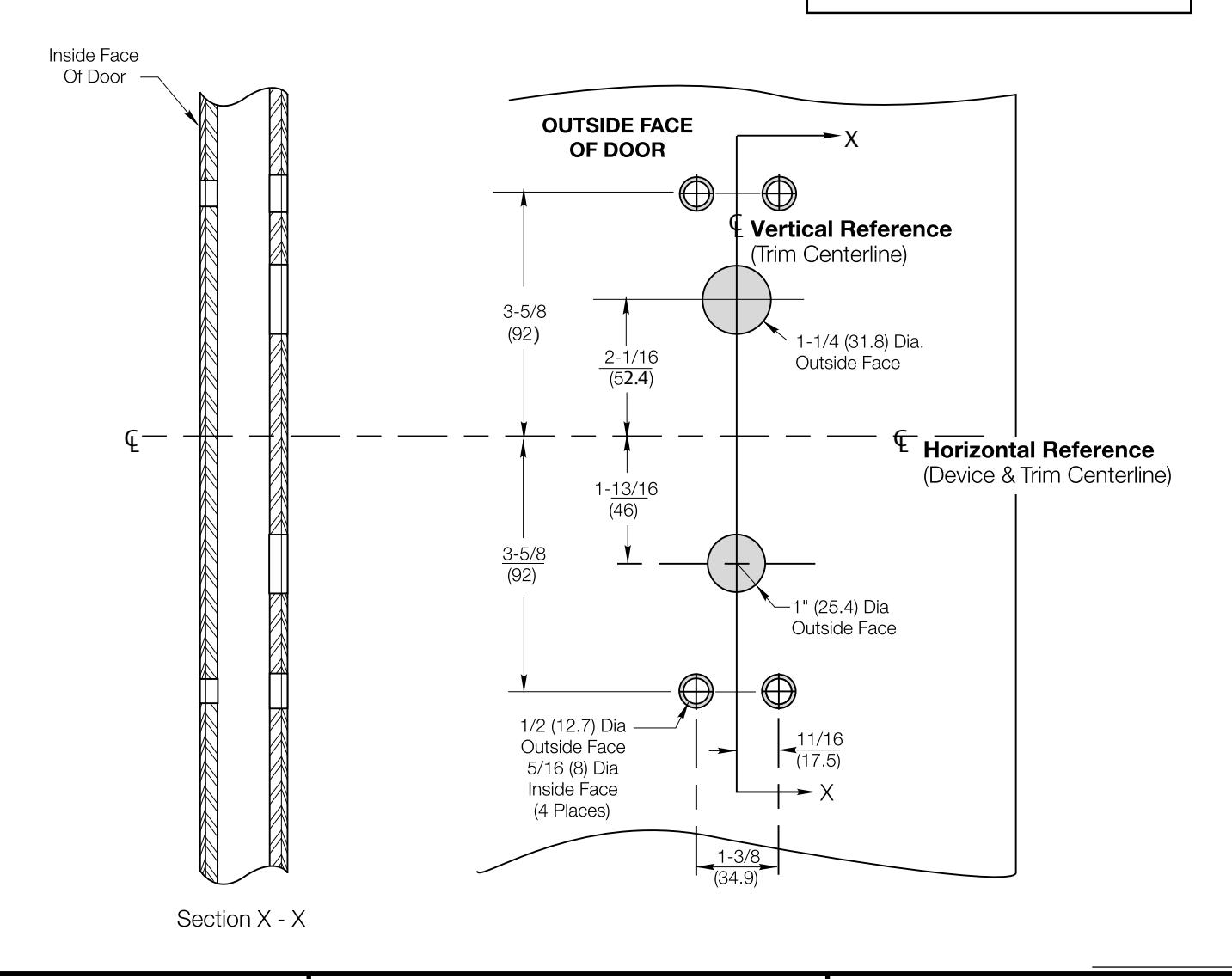

With 6130(F) & 7130(F) Series Mortise Exit Devices Metal Door Preparation
Contact us for support at 1-800-438-1951.
SUPERSEDES DO NOT SCALE DRAWING 7400-0656 03-20
7400-0656 DATE TEMPLATE NUMBER
10-23
