ASSA ABLOY ACCENTRA 651F Trim for 1530(F), 7130(F) Wide Stile Mortise Nightlatch (03) Function Metal_7400-0651

Printed in U.S.A. 7400-0651

Notes:

• This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

651F Trim

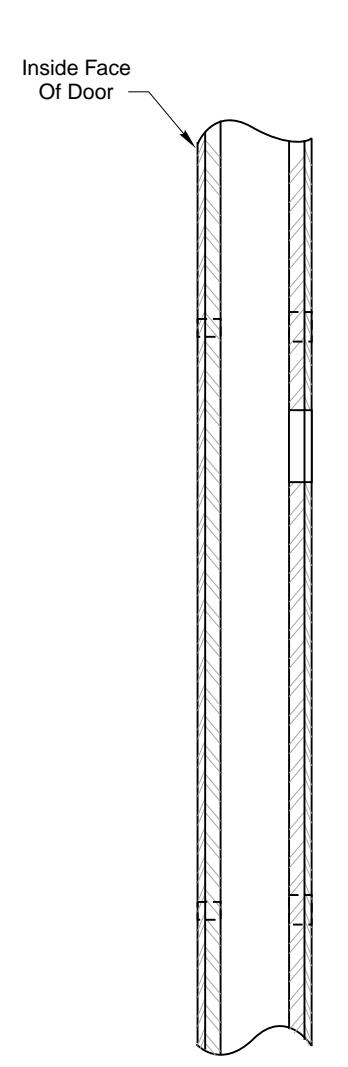

Section X - X

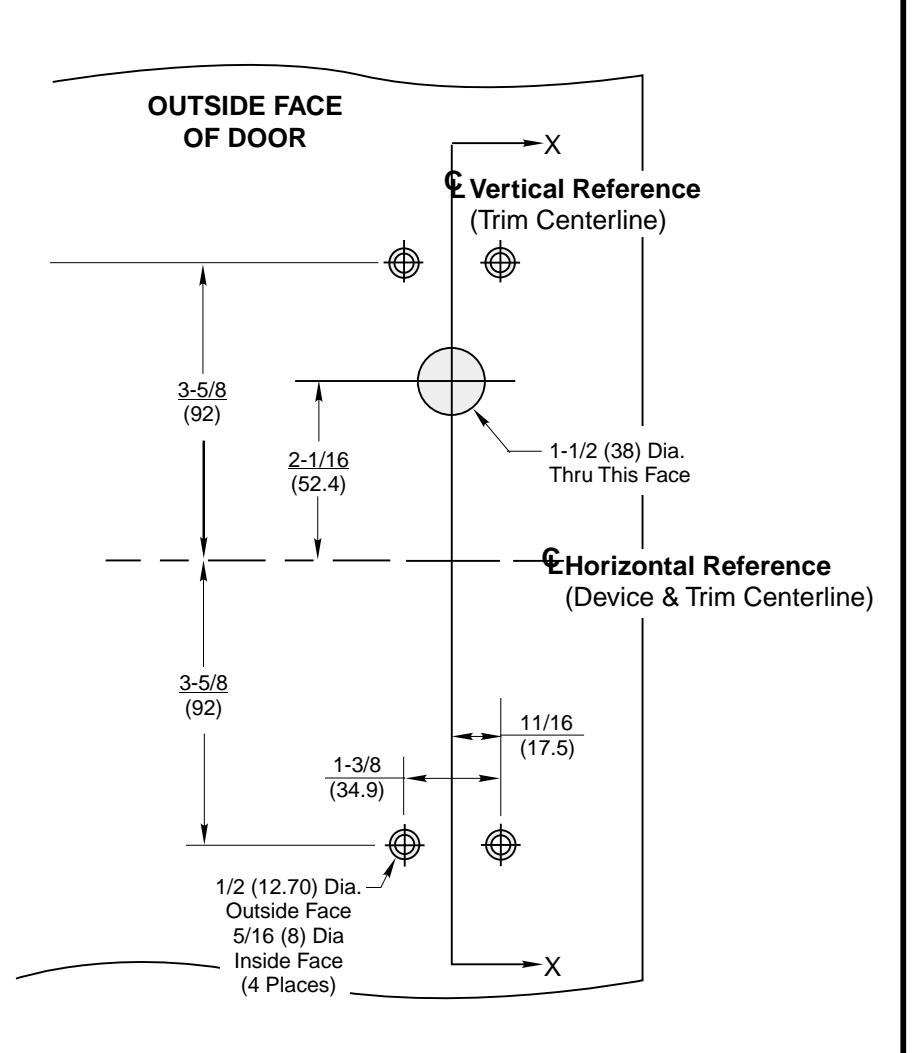

With 1530(F) or 7130(F) Series Mortise Exit Devices Metal Door Preparation

Yale ^®

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER

7400-0651

6-06
