ASSA ABLOY ACCENTRA 651F Trim for 1500(F) and 7100(F) Series Wide Stile Mortise Nightlatch (03_7400-1651

NOTES :

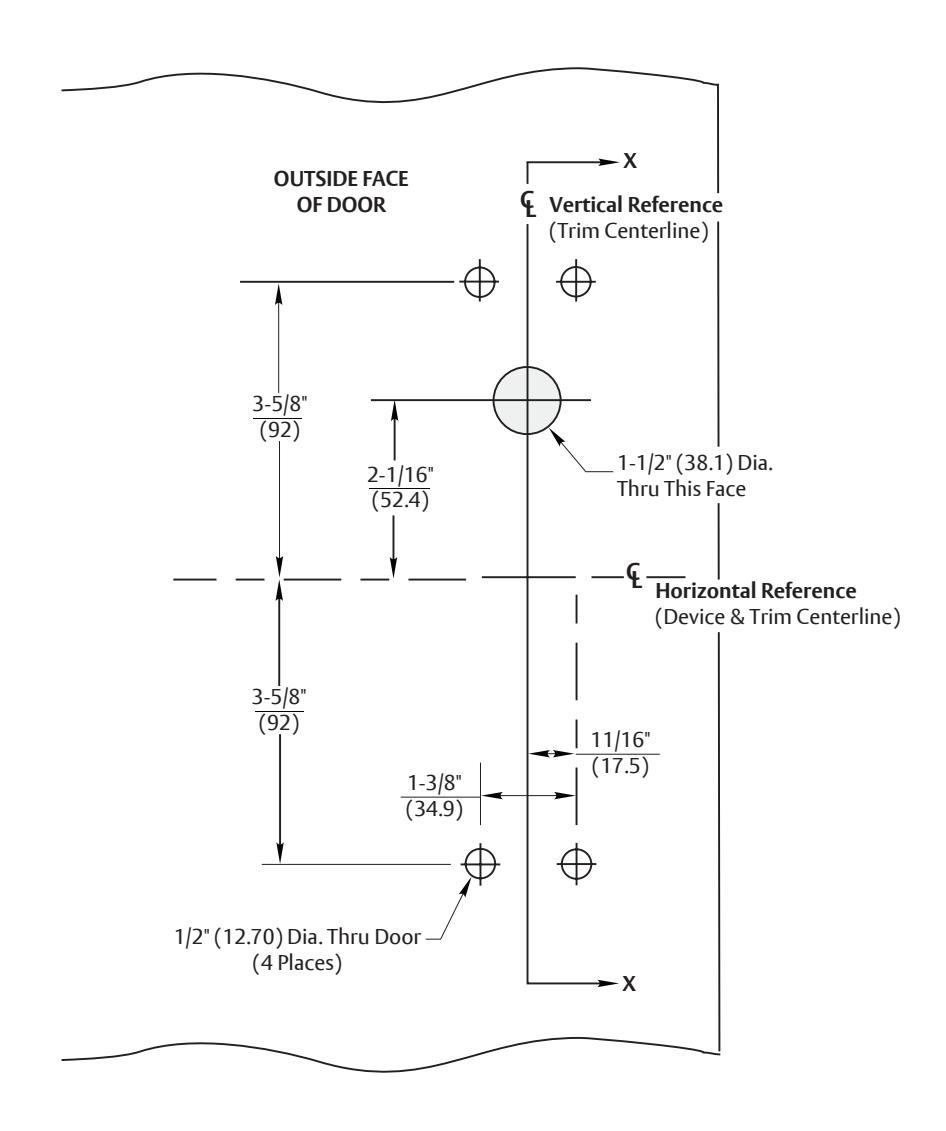

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structrual support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Shaded area represents mortise lock cavity from device template.

RESPONSIBILITY

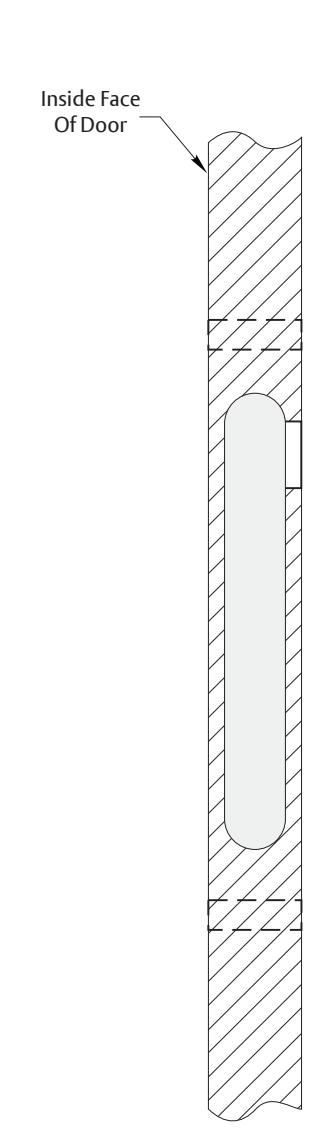

Section X - X

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

651F Trim With 1530(F), or 7130(F) Series Mortise Exit Devices

Wood or Composite Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7400-1651 (06-06)

TEMPLATE NUMBER

7400-1651 DATE

12-23
