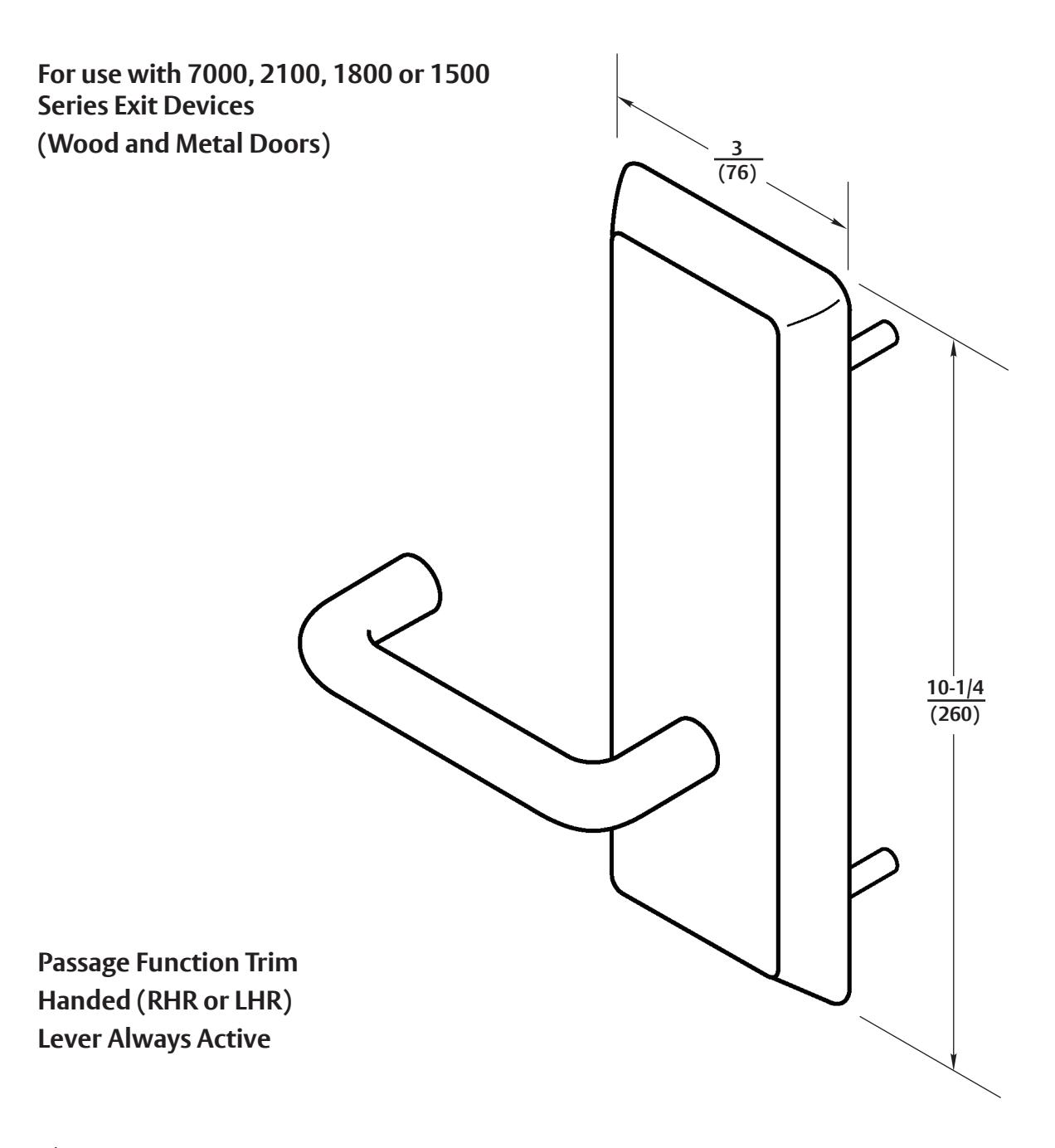

Exit Device Trim

Installation Instructions

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c situation. When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening, please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-847-0628-000 11/23

628F Exit Device Trim Installation Instructions

1. Trim Components

628F

Exit Device Trim

Installation Instructions

2. Installation

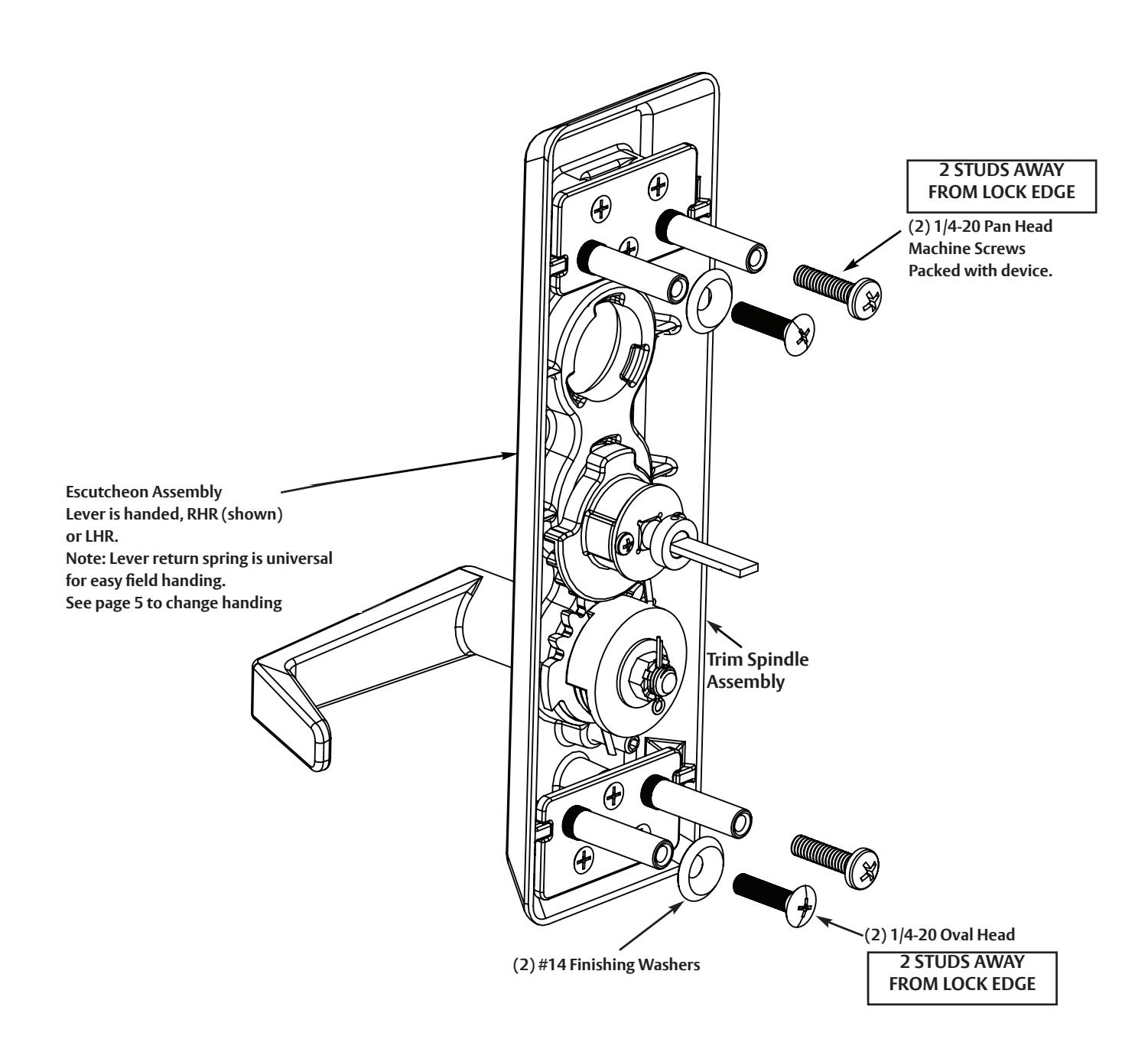

• 1. Assemble trim. See previous page forcomponents

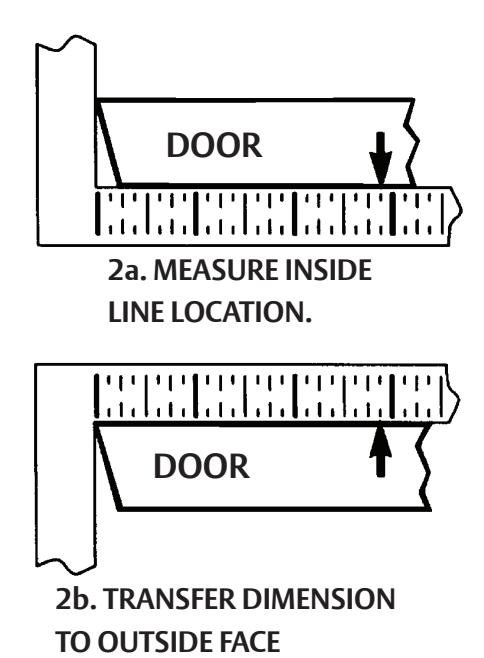

• 2. After marking door inside face for device location (Device Instructions) transfer Vertical Reference Centerline from inside to outside door face. Follow steps 2a and 2b below.
• 3. Transfer Horizontal Reference Centerline from inside to outside door face.

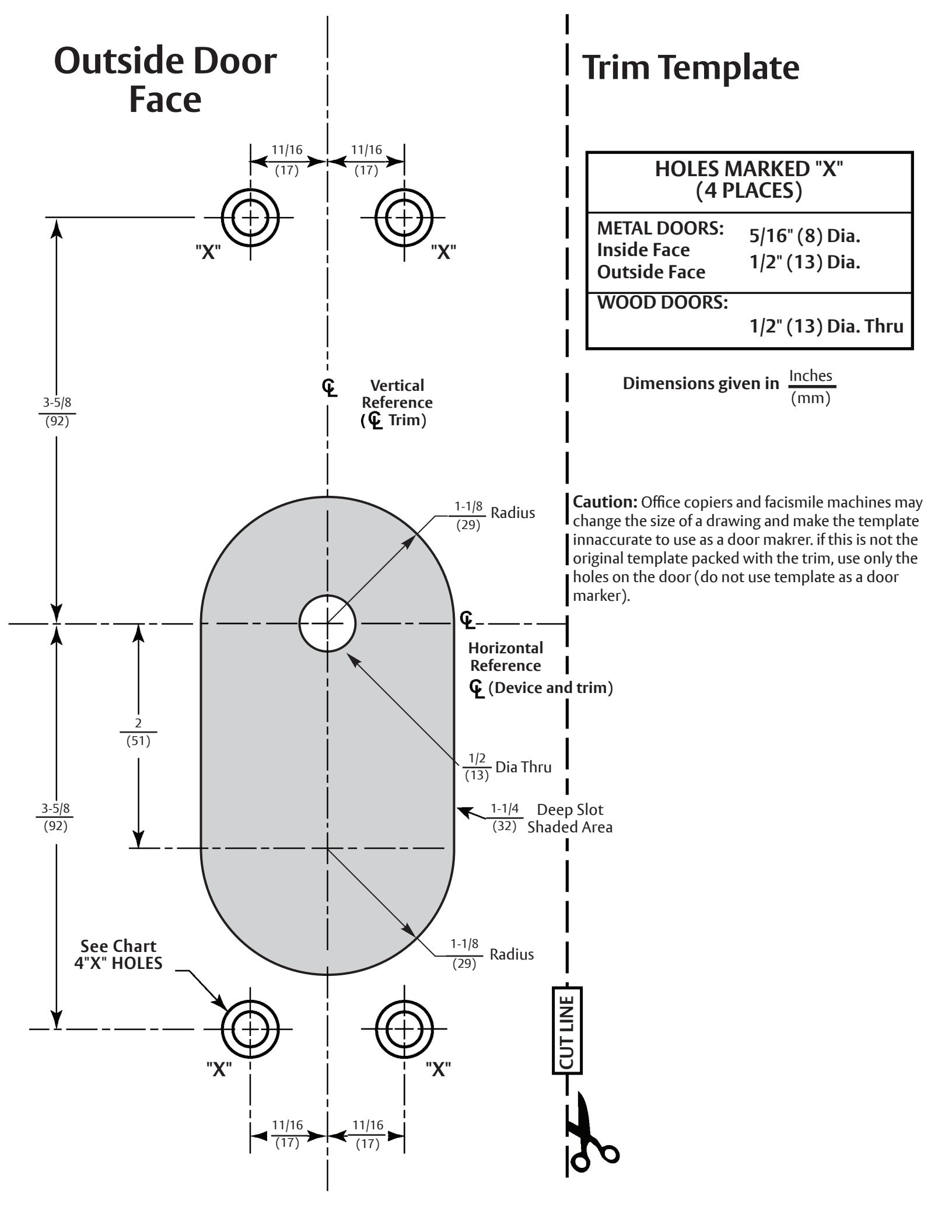

• 4. Align trim template and tape to outside door face
• 5. Spot holes and prepare door for trim.

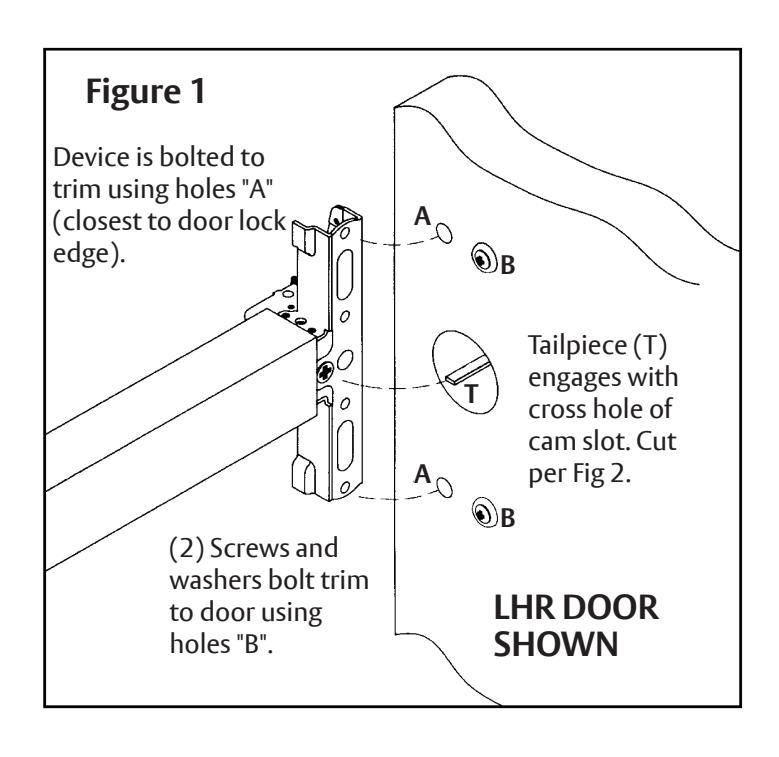

• 6. Mount trim to door thru holes "B". Fasten fi nger tight only with 2 screws and washers seating on door as shown in Figure 1.

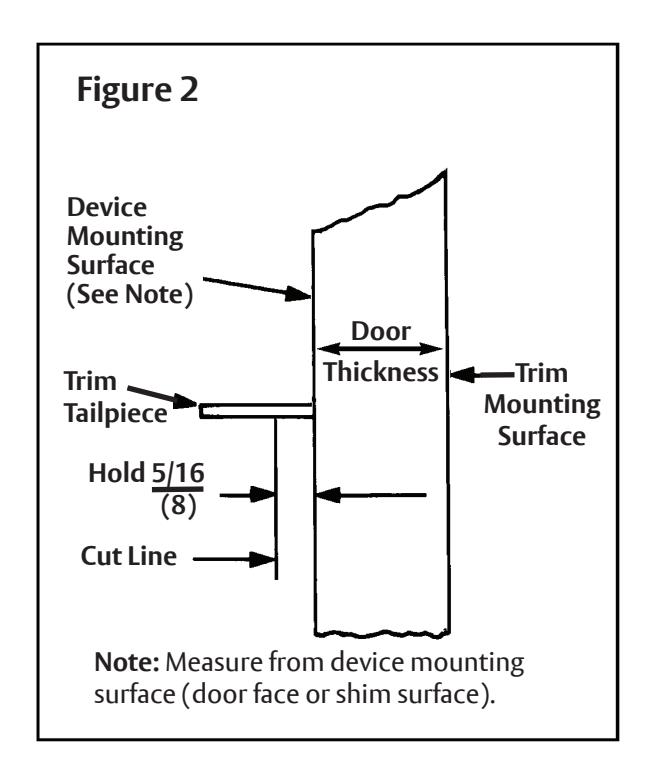

• 7. Cut trim tailpiece as shown in Figure 2.
• 8. Seat device so that trim tailpiece penetrates cam slot as shown in Figure 1. Continue as shown in device instructions.

628F

Exit Device Trim Installation Instructions

3. How To Change Handing

Note:

• 1. During change ensure black driven gear does not rotate.
• 2. Please wear safety glasses and be aware of spring tension on spring hub upon removal and assembly.
• 3. Light lubrication is recommended under fl at gear, white lithium grease can be used.

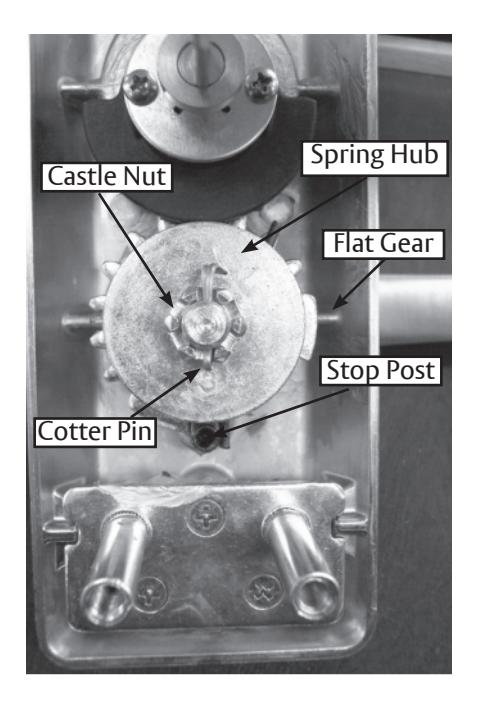

LEFT HAND REVERSE GEAR & SPRING ORIENTATION

RIGHT HAND REVERSE GEAR & SPRING ORIENTATION

628F Exit Device Trim Installation Instructions

4. To Change Hands

Tools Needed: Needle Nose pliers, Crescent wrench.

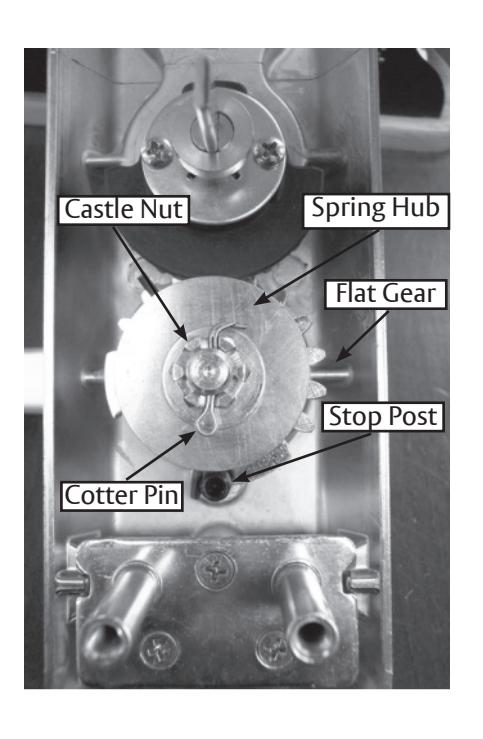

• 1. Remove cotter pin.
• 2. Remove castle nut.
• 3. Remove washer.
• 4. Carefully pull up on spring hub to disengage spring.
• 5. Remove spring and note orientation.
• 6. Remove lever handle.

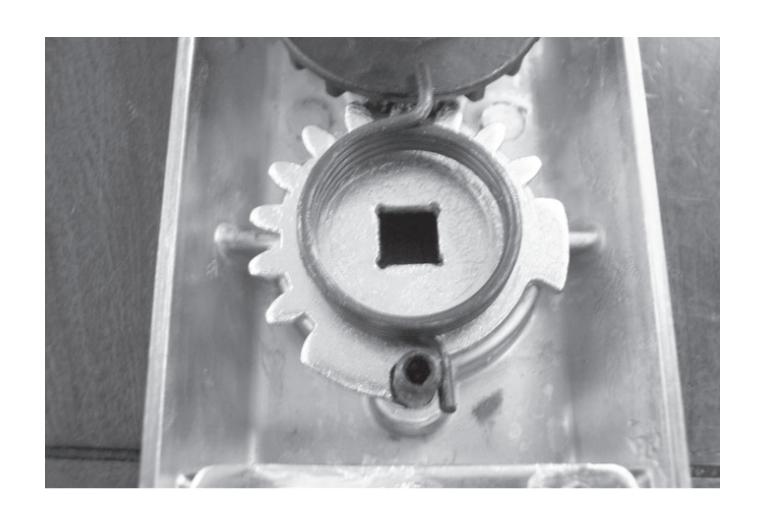

• 7. Pick-up fl at gear, fl ip and orient stop on opposite side of stop post. See pictures for orientation.
• 8. Install spring upside down from original orientation and place spring leg on opposite side of stop post from original installation orientation. See pictures for orientation.

628F

Exit Device Trim Installation Instructions

4. To Change Hands cont'd

Tools Needed: Needle Nose pliers, Crescent wrench.

• 9. Install lever 180 degrees from original position.
• 10. Install spring hub with stamped number in the 6 o'clock position.
• 11. Rotate spring leg around with needle nose pliers to engage notch in spring hub, refer to pictures for reference position. Press down on spring hub to ensure complete engagement.
• 12. Install washer.
• 13. Install castle nut, do not over tighten, verify by insuring lever returns horizontally on its own.
• 14. Install cotter pin.

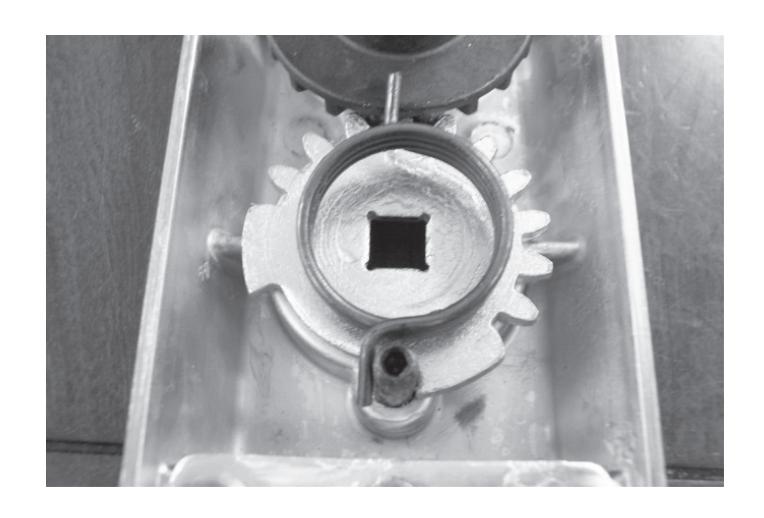

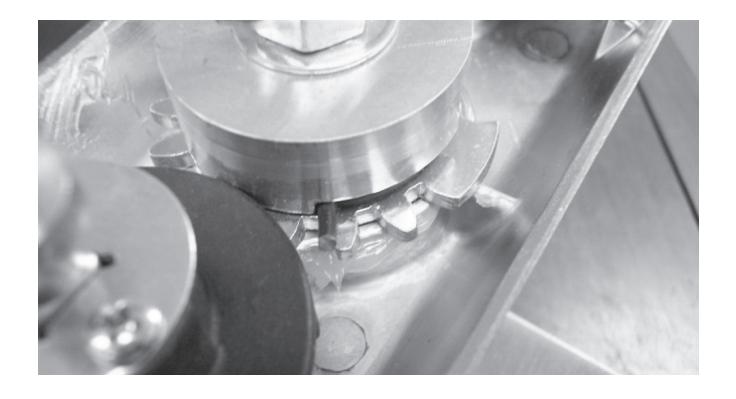

NOTCH FOR SPRING TO ENGAGE FOR LEFT HAND REVERSE OPERATION

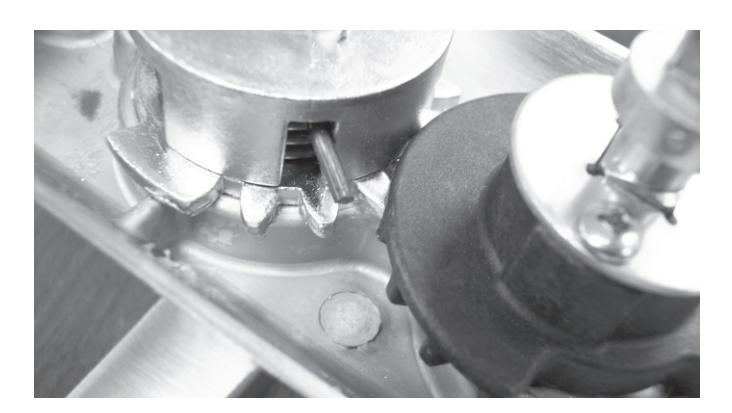

SPRING ORIENTATION FOR RIGHT HAND REVERSE OPERATION
