ASSA ABLOY ACCENTRA 625F and 629F Trim for 1500(F), 2100(F), 6100ED(F), and 7100(F) Series Wide_7400-1625

NOTES:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate internal support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.

NOTE: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

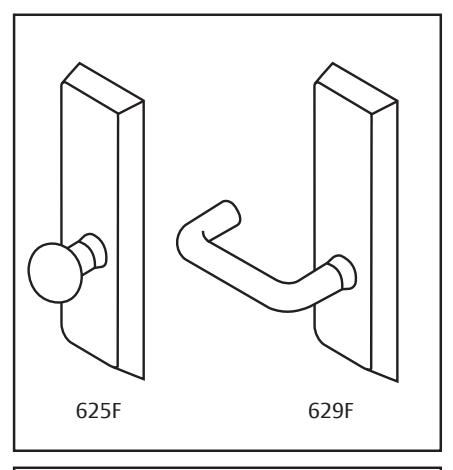

625F and 629F Trim With 1500(F), 2100(F), 6100(F), or 7100(F) Series Rim and Vertical Rod Exit Devices

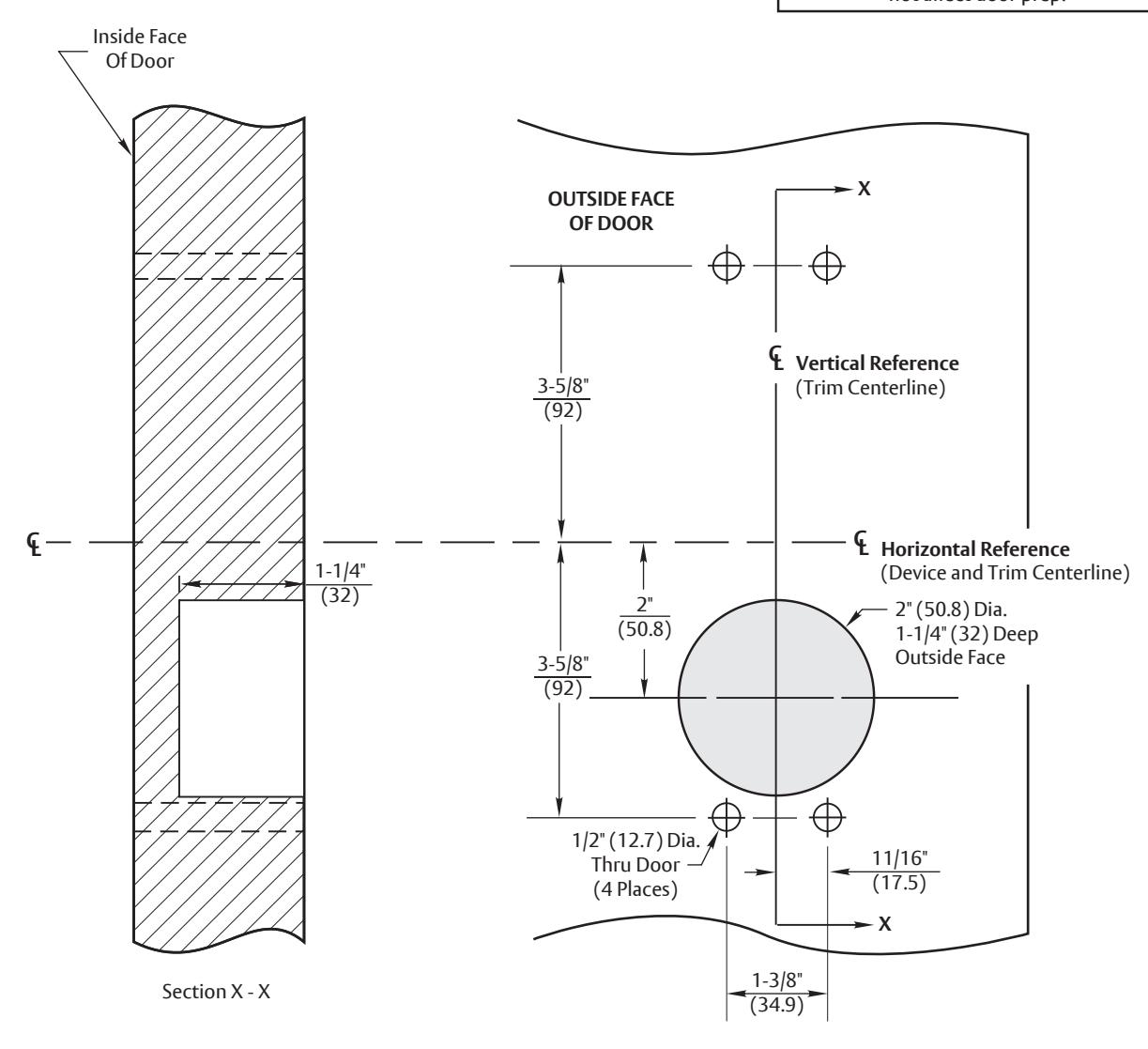

Wood or Composite Door Preparation

Contact us for support at 1-800-438-1951.

ASSA ABLOY

SUPERSEDES 7400-1625 (05-15)

DO NOT SCALE DRAWING

TEMPLATE NUMBER

7400-1625

¹ 12-23
