ASSA ABLOY ACCENTRA 625F and 629F Trim for 1500(F), 2100(F), 6100ED(F), and 7100(F) Series Wide_7400-0625

Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2006, 2015, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

Notes:

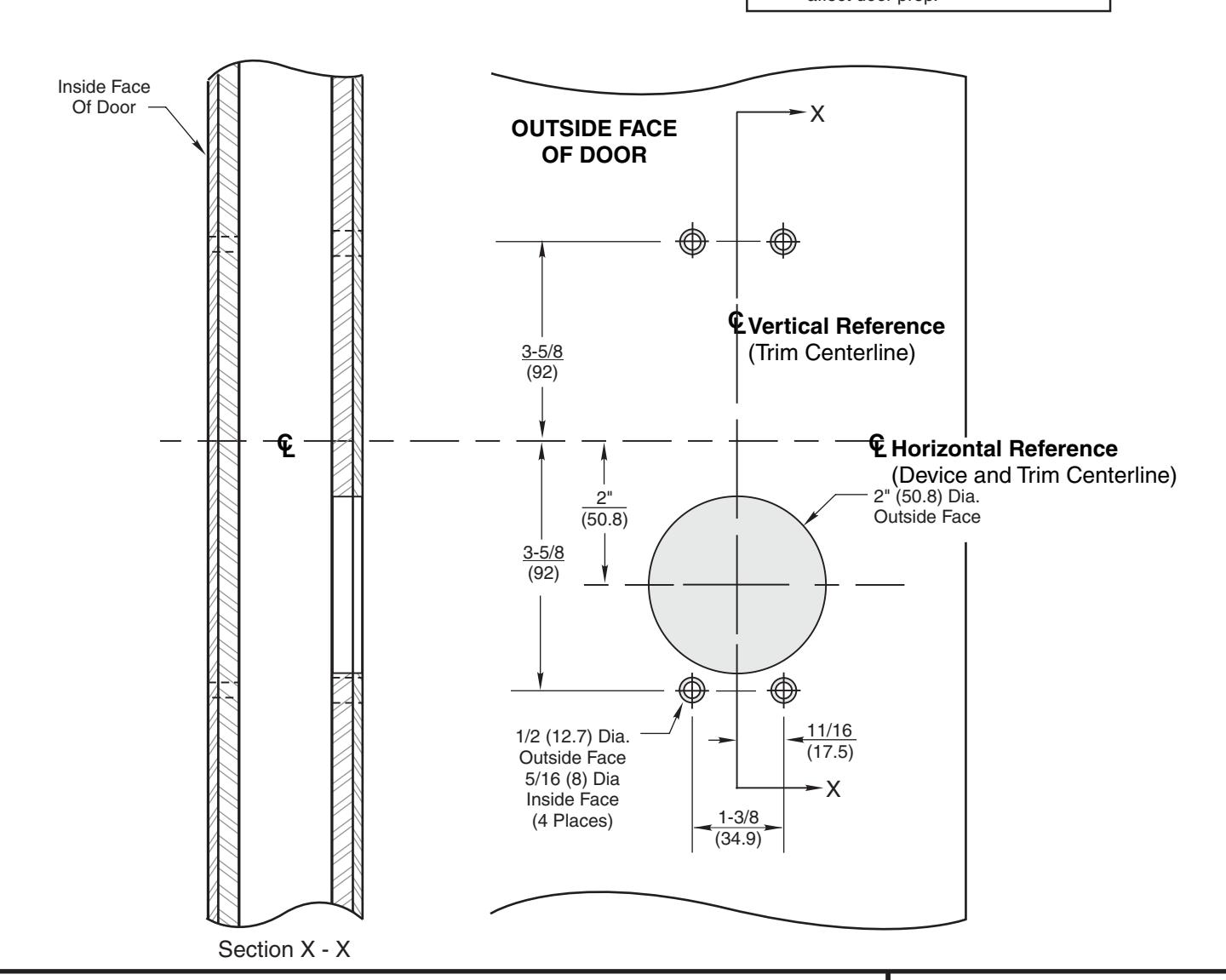

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Note: Lever and knob prefix does not affect door prep.

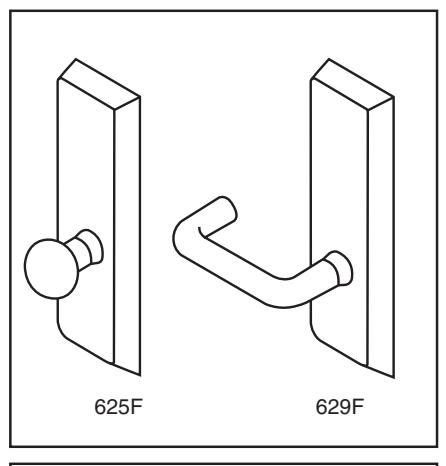

625F and 629F Trim With 1500(F), 2100(F), 6100(F) or 7100(F) Series

Rim and Vertical Rod Exit Devices Metal Door Preparation

www.yalelocks.com 1-800-438-1951

TEMPLATE NUMBER DATE

7400-0625

05-15
