ASSA ABLOY ACCENTRA 6250, 6255, 7250, 7255 Narrow Stile SquareBolt 759 Strike Aluminum Door_7472-0050

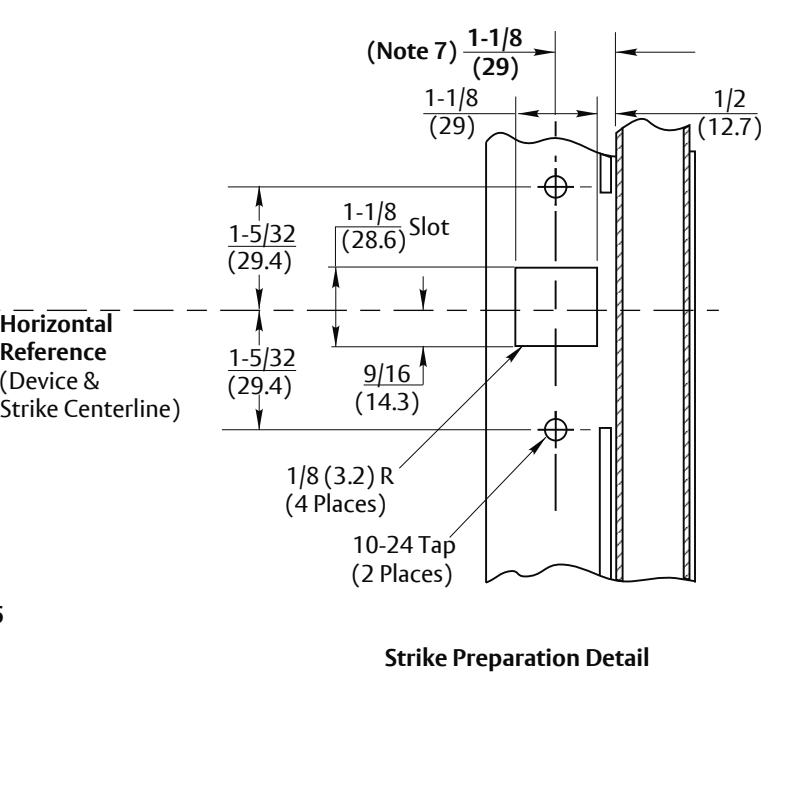

1-1/2 (38) See Note 10 Strike Reinforcement (See Note 6) Minimum

1-9/16 (40) 1-9/16 (40) 1-5/16 (33.3) Blade stop CL CL 39-15/16 (1014) 3-5/8 (92) 3-5/8 (92) 5/8 (15.9) Dia. Thru this F ace Vertical Reference & Device Mounting (Notch as shown) INSIDE FACE OF DOOR

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches(mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 2(51).
• 5. Prepare mounting holes when installing the device.
• 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 7. Dimension from door face.
• 8. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device componenets.
• 9. Holes for optional SNB: 9/32(7.00) dia., inside door face; 3/8(9.50) dia., outside door face.
• 10. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 11. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.
• 12. For trim preparation see appropriate trim template.
• 13. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

6250, 6255, 7250 & 7255 Narrow Stile SquareBolt® Panic Devices Application for Aluminum Door and Blade Stop Frame with 759 Strike

Finished Floor

Horizontal Reference (Device &

7472-0050 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24

1/4-20 Tap (Std.) or See Note 9 (SNB) - 2 Places -
