624F

Exit Device Trim

Installation Instructions

For use with all ASSA ABLOY ACCENTRA™ 7000, 2100, 1800 and 1500 Series Exit Devices (Wood and Metal Doors)

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

80-8470-0624-000 04/24 Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com

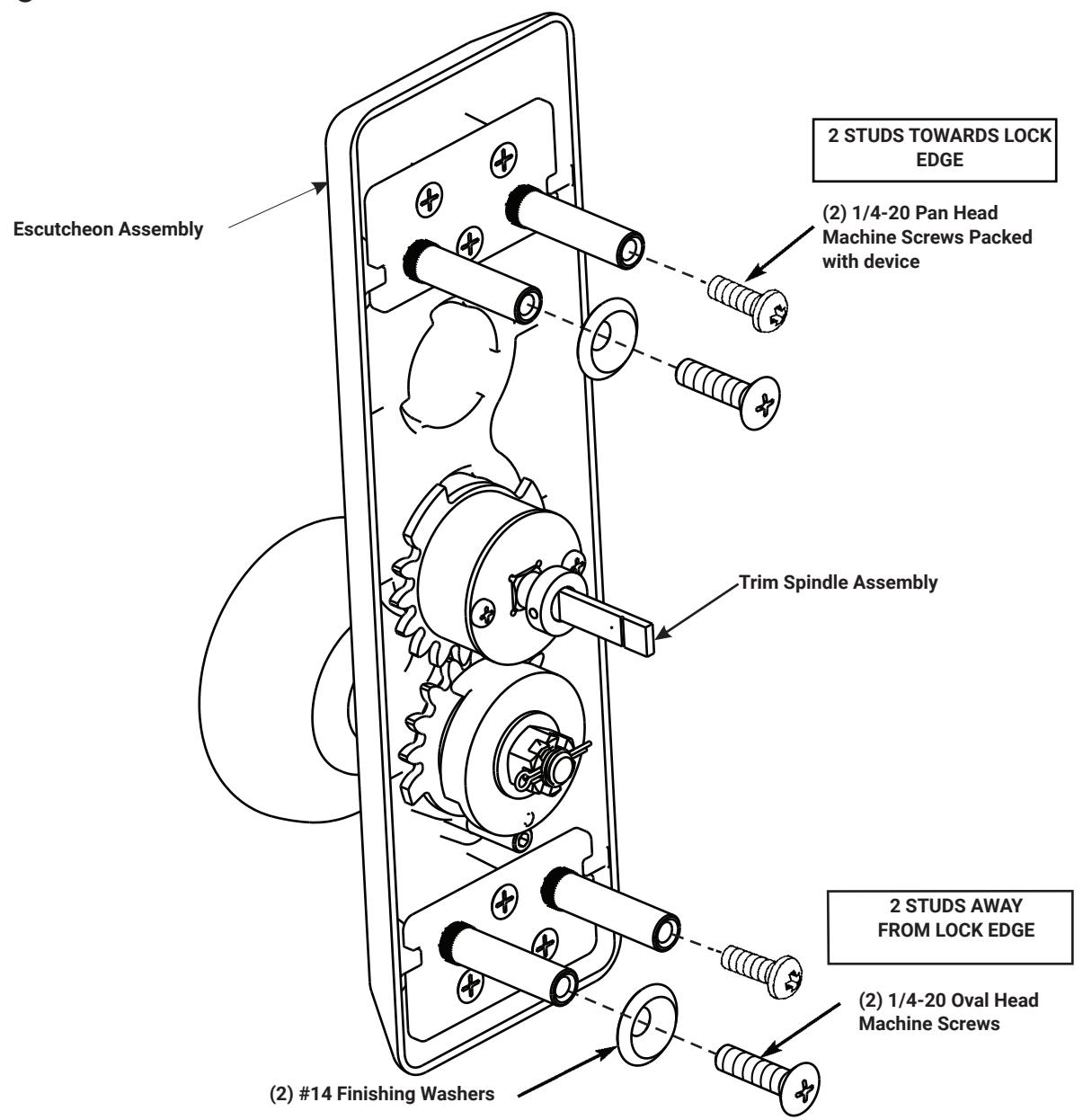

Trim Components

624F

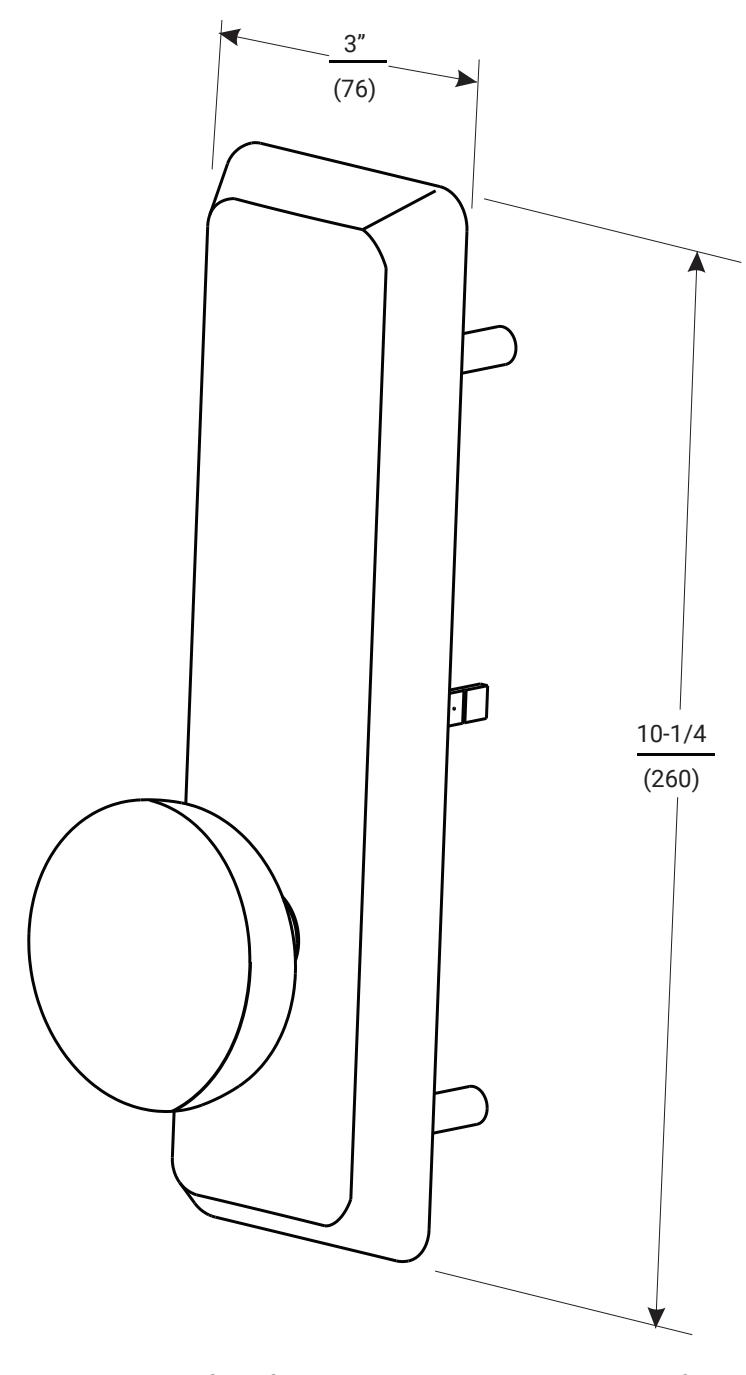

Passage Function Trim

624F

Exit Device Trim Installation Instructions

Installation Instructions

• 1. Check box for contents. See previous page for components

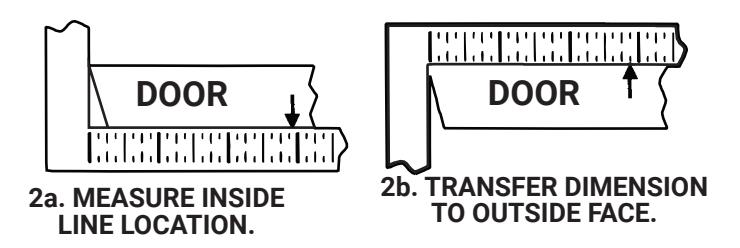

• 2. After marking door inside face for device location(Device Instructions), transfer Vertical Reference Centerline from inside to outside door face. Follow steps 2a. and 2b. below.

• 3. Transfer Horizontal Reference Centerline from inside to outside door face.
• 4. Align trim template and tape to outside door face.

• 5. Spot holes and prepare door for trim

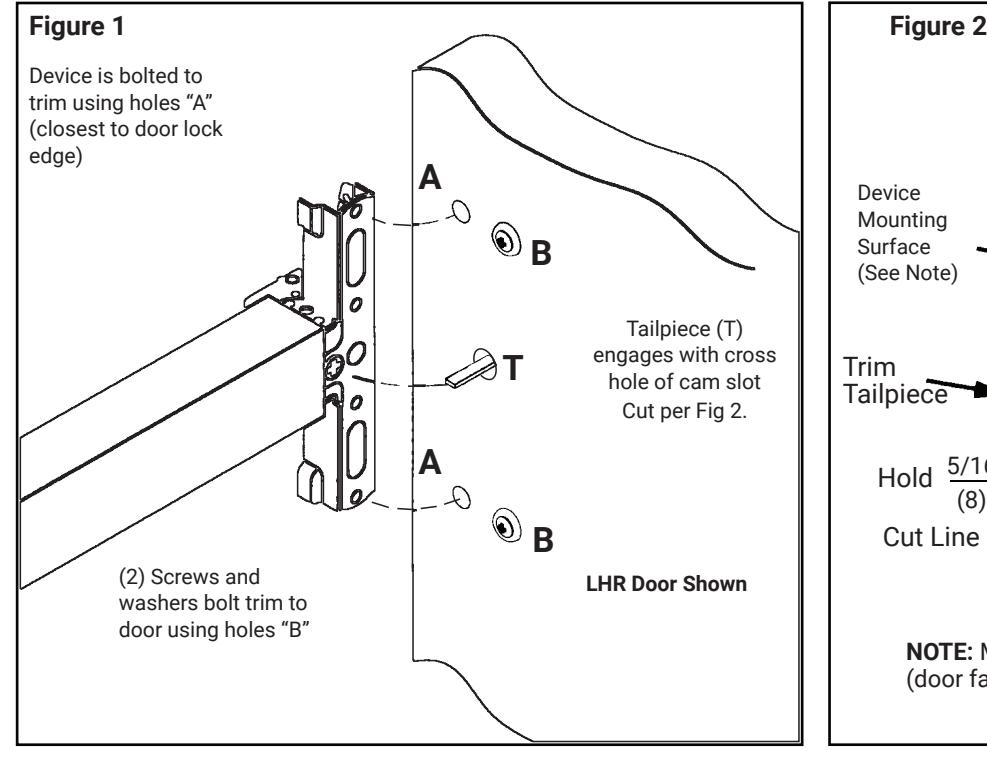

• 6. Mount trim to door thru holes "B". Fasten finger tight only with (2) screws and washers seating on door as shown in Fig. 1

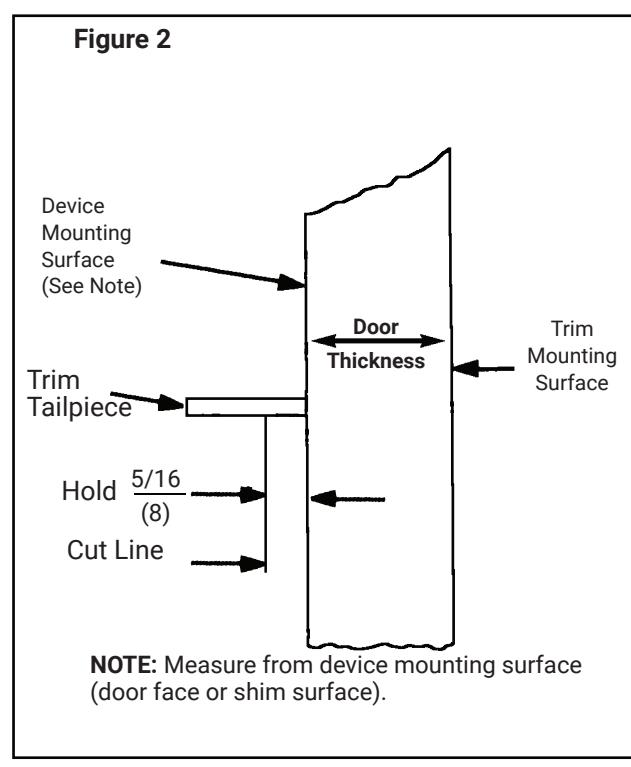

• 7. Cut trim tailpiece as shown in Figure 2.
• 8. Seat device so that the trim tailpiece penetrates the cam slot as shown in Figure 1. Continue as shown in the device instructions.

80-8470-0624-000 04/24

Trim Template Outside Door Face HOLES MARKED "X" (4 Places) METAL DOORS: Inside Face Outside Face WOOD DOORS: 5/16" (8) Dia. 1/2" (13) Dia. 1/2" (13) Dia. Thru Dimensions given in CAUTION: Office copiers, printers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. Inches (mm) VERTICAL REFERENCE HORIZONTAL REFERENCE ( Trim) ( Device andTrim) CUT LINE "X" "X" "X" "X" See Chart 4 "X" HOLES 11/16 (17) 11/16 (17) Radius Radius Dia Thru 1 (25) 1 (25) 1/2 (13) 2 (51) 3-5/8 (92) 3-5/8 (92) 11/16 (17) 11/16 (17) Deep Slot Shaded Area 1-1/4 (32)
