ASSA ABLOY ACCENTRA 6220, 6225, 7220, 7225 Narrow Stile CVR 794 Floor and 791 Top Strike Aluminum_7472-0021
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

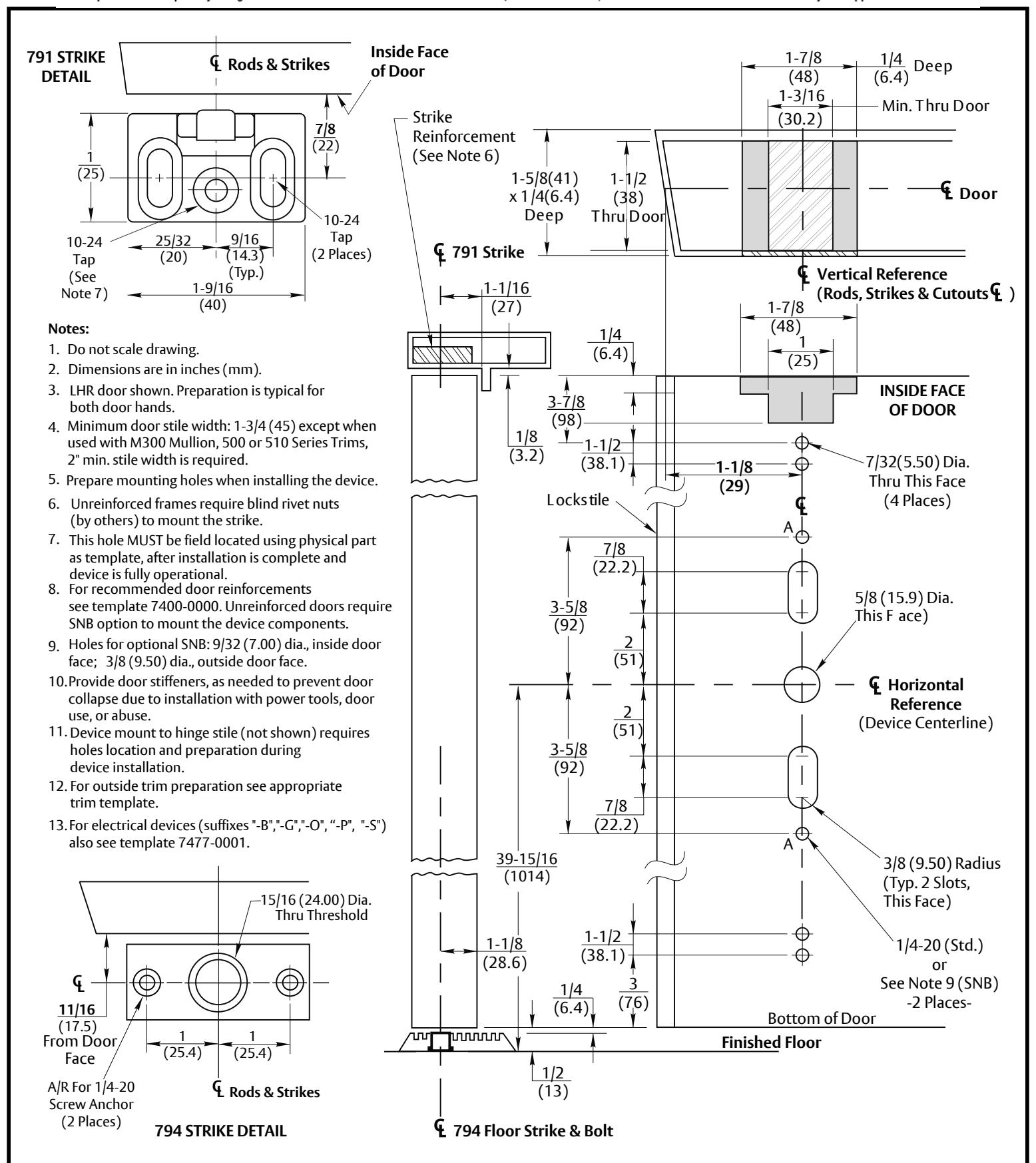

6220, 6225, 7220 & 7225 Narrow Stile Concealed Vertical Rod Panic Devices
Application for Aluminum Door and Blade Stop Frame With 1/2"Threshold; 791 Top Strike and 794 Optional Floor Strike
Contact us for support at 1-855-577-5078.
ASSA ABLOY
SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7472-0021 DATE 01-24
