ASSA ABLOY ACCENTRA 6220, 6225, 7220, 7225 Narrow Stile CVR 790 Floor and 791 Top Strike Pairs_7472-0020
Open the original PDF document
View PDF
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

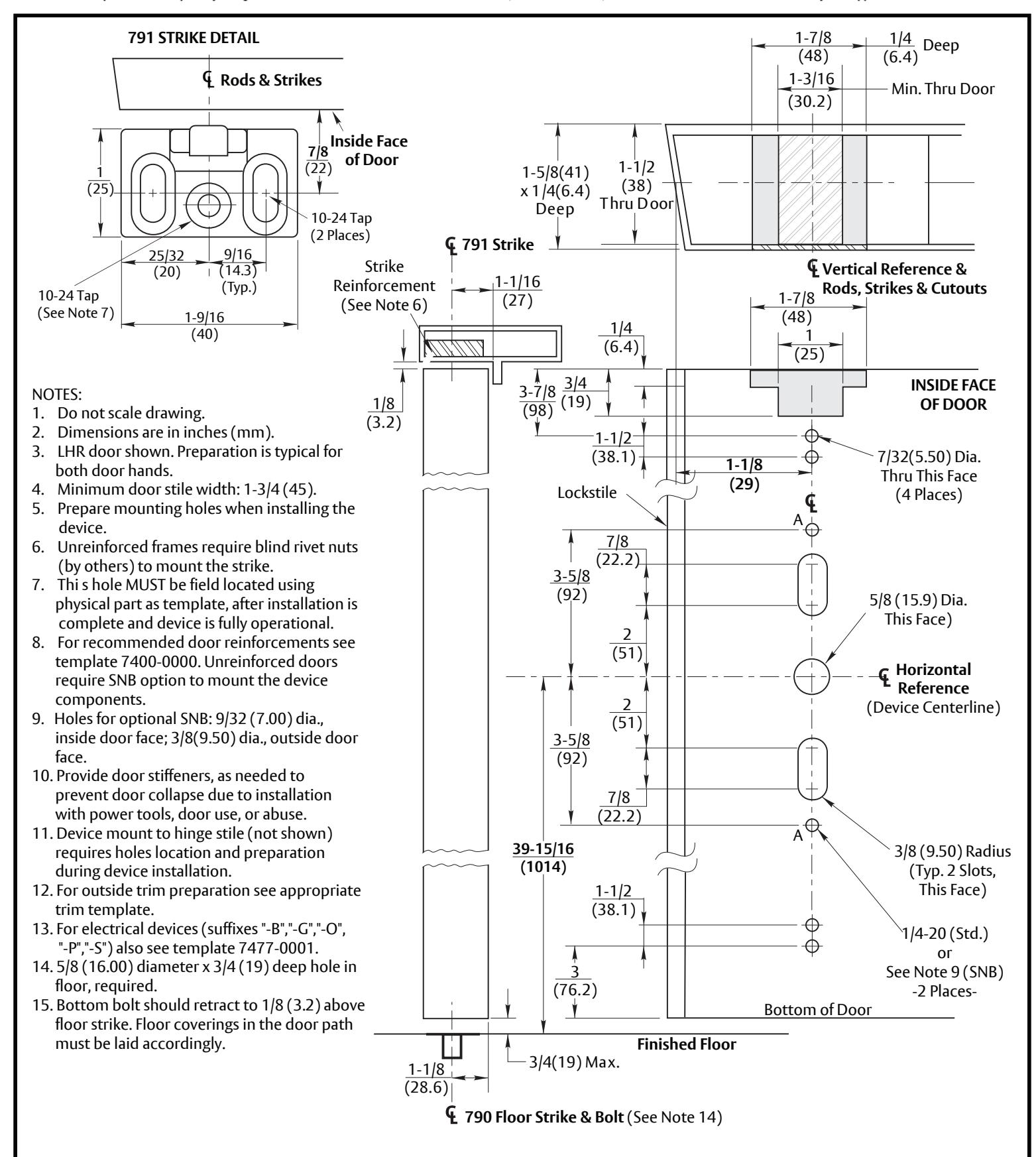

6220, 6225, 7220 & 7225 Narrow Stile Concealed Vertical Rod Panic Devices
Application for Pairs of Aluminum Doors and Blade Stop Frame With 790 Floor Strike; 791 Top Strike
Contact us for support at 1-855-557-5078.
ASSA ABLOY
SUPERSEDES 11/15 DO NOT SCALE DRAWING TEMPLATE NUMBER 7472-0020 DATE 01-24
