ASSA ABLOY ACCENTRA 621F Trim for 1500(F), 2100(F), and 7100(F) Series Wide Stile Rim, SquareBolt_7400-1621

NOTES :

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Dimensions given about a centerline are symmetrical.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

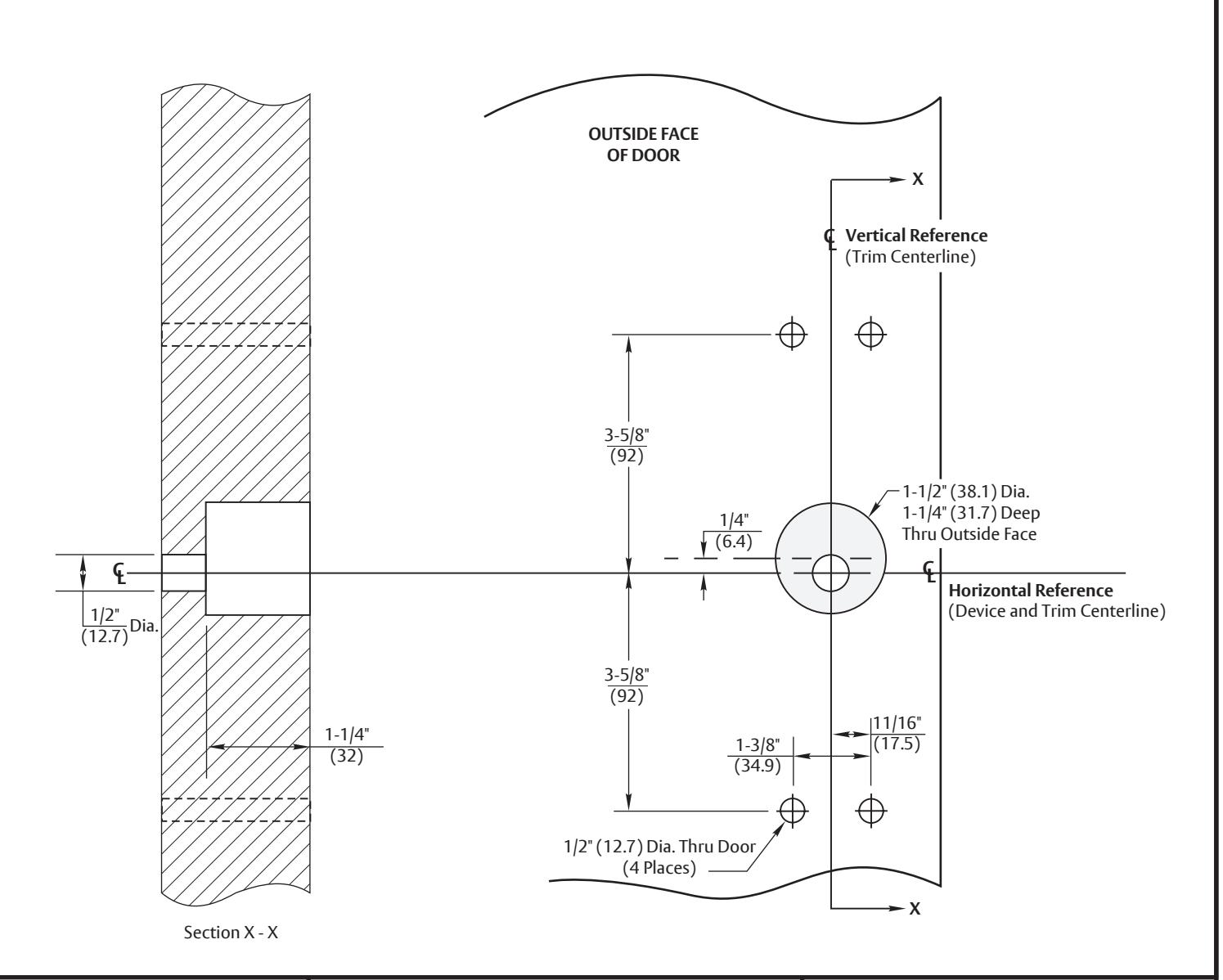

621F Trim With 1500(F), 2100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices

Wood or Composite Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7400-1621 (03-06)

TEMPLATE NUMBER

7400-1621 DATE

12-23
